SQF-3-28
29 November 2006

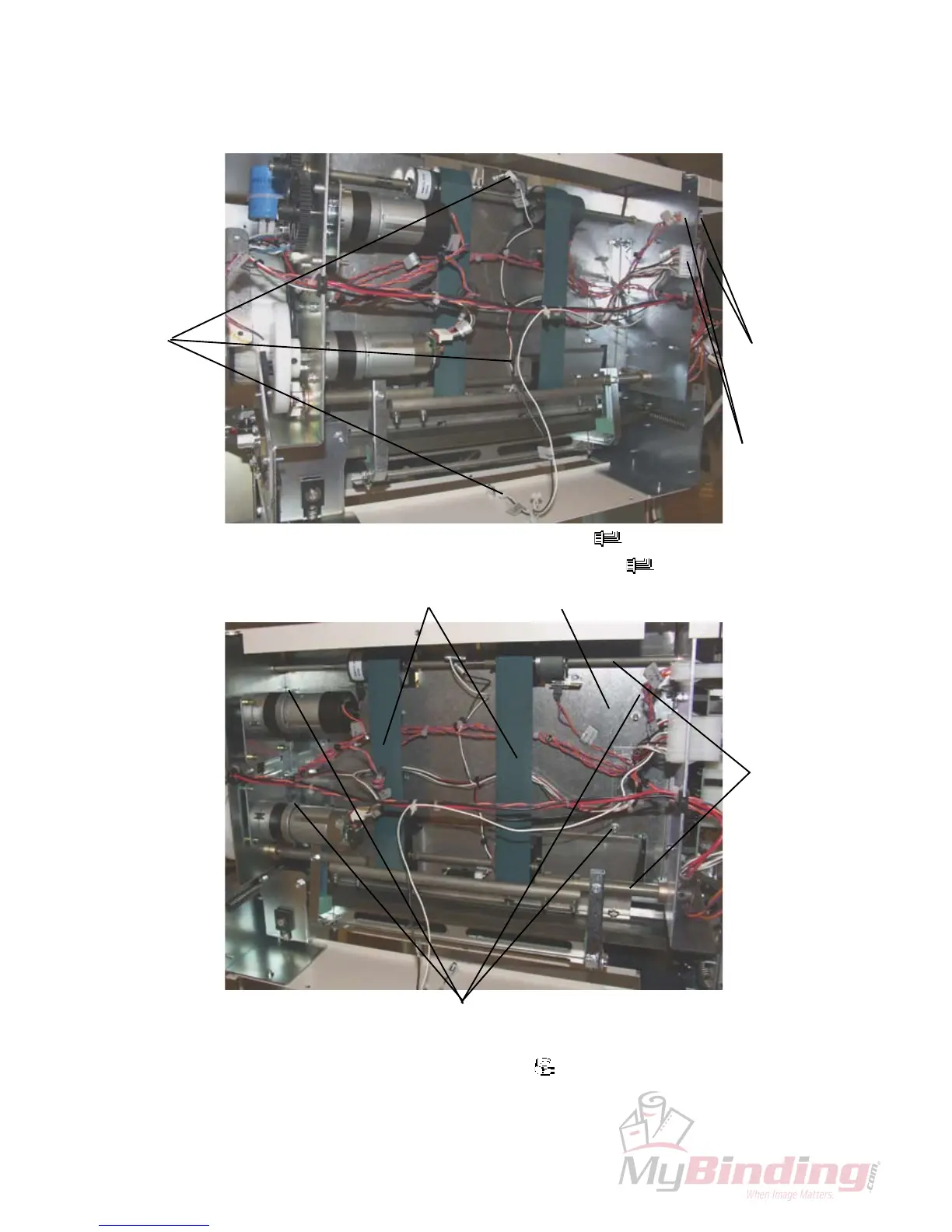

3.4.2 LOWER TRANSPORT BELT, CONTINUES
13. Remove shafts [M] ( x 2).
14. Remove nuts [N] holding the Sliding plate [O] (
x 4).
15. Gently lift the Sliding plate.
16. Gently slide off the belts [P] to rear-side.
[K]
[K]
[L]
[M]
[N]
[O]
[P]
BELTS
11. Disconnect connectors Q5, Q6, Q7, P20 and P21 [K] ( x 5).
12. Remove connectors J20 and J21 [L] from machine frame (
x 2).
Bottom view
Bottom view
