SQF-3-13

Replacement

Adjustment

29 November 2006

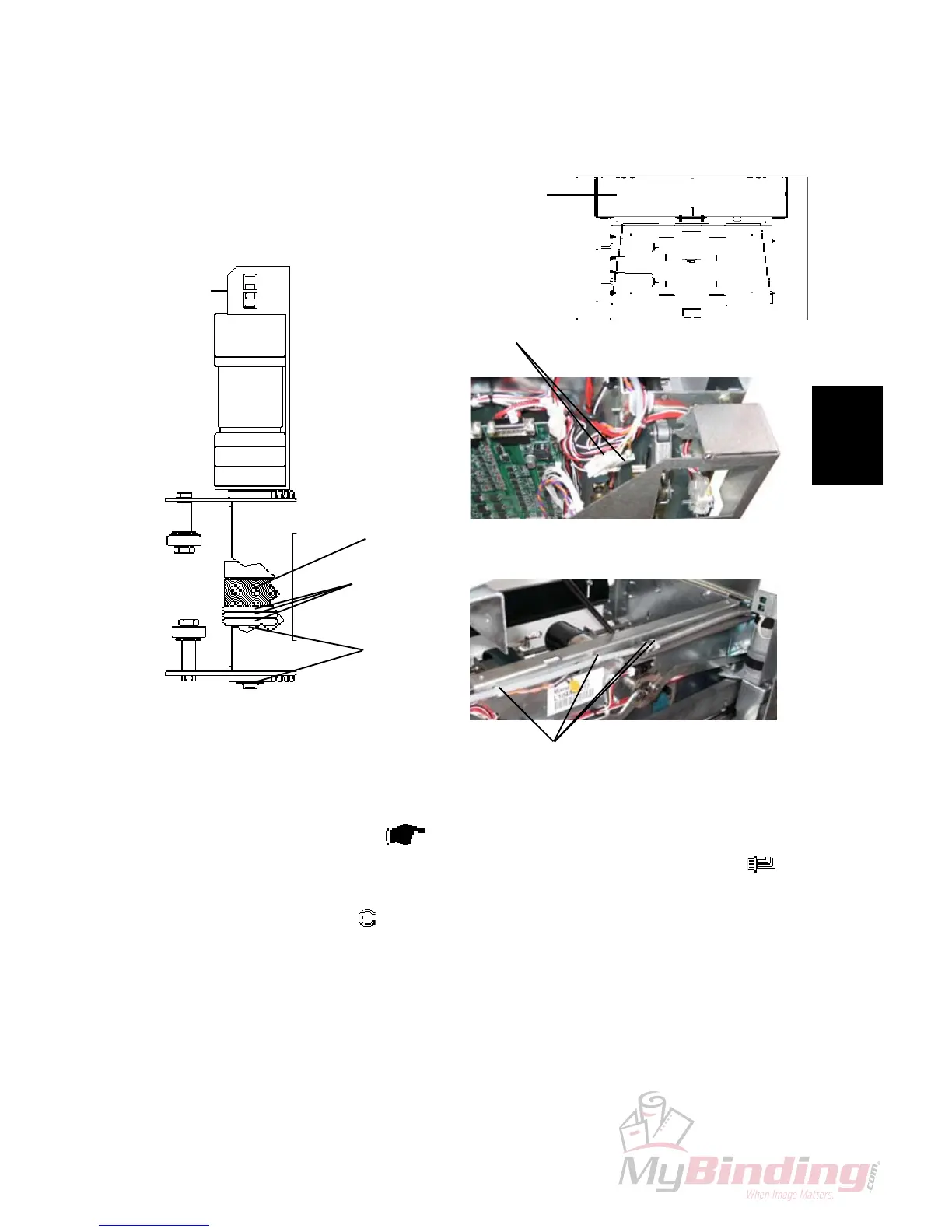

Removal

1. Remove Outfeed cover (

3.1.4).

2. Disconnect Motor plug M4, and sensor plug J26 [A] from wire harness (

x 2).

3. Move Roller Motor assembly towards centre of the clamps.

4. Remove E-Clips [B] (

x 2).

5. Lift out Motor and Pressure Roller [C] upwards.

6. Cut cable ties [D] all the way to connectors, when removing complete Motor.

[B]

O-rings

[C]

[D]

[A]

MOTORS

Rear view

Outfeed view
