SQF-3-16

29 November 2006

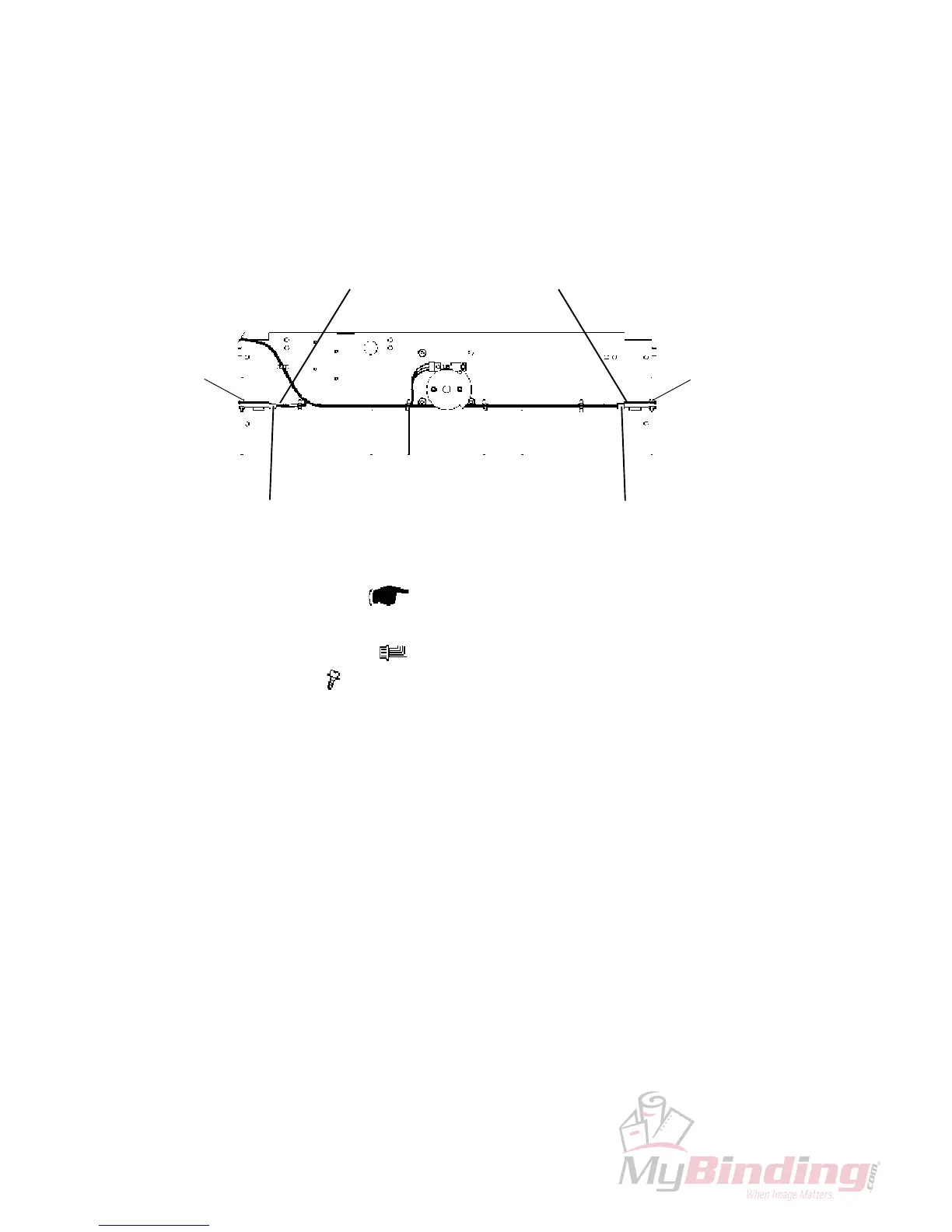

3.3.2 ROLLER MOTOR FRONT/REAR SENSORS (Q2 AND Q3)

Removal

1. Remove Outfeed Cover (

3.1.4).

2. Move Roller Motor assembly towards center of the clamps.

3. Disconnect connector [A] (

x 1).

4. Remove screw [B] (

x 1).

SENSORS AND SWITCHES

Sensor Q3 Sensor Q2

[A]

[B]

[A]

[B]
