E-9

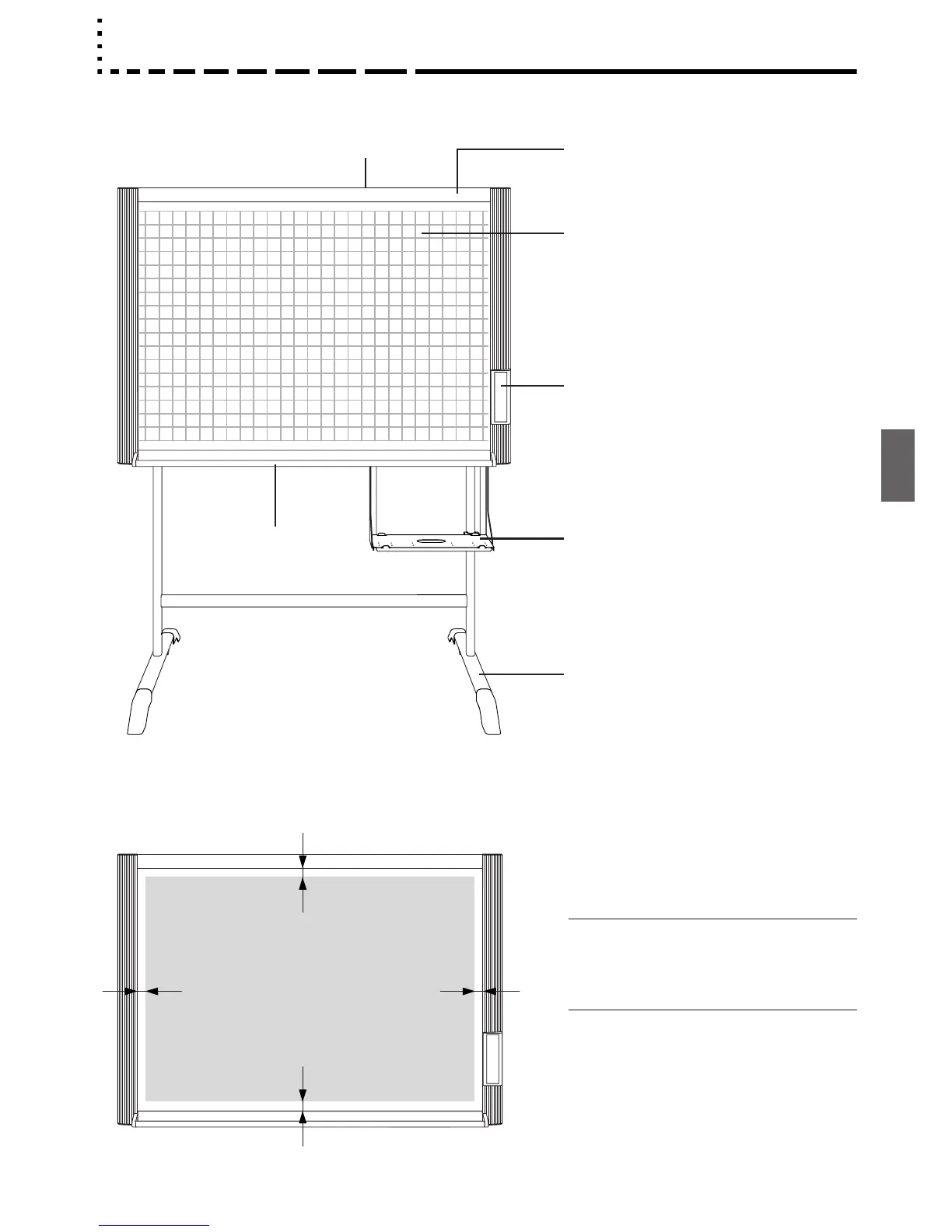

Names of the Parts
Front
Frame cover
Sheet
Special markers are used on the sheet to draw
diagrams and to write.
Control panel (See Page E-10)
Printer tray
The printer* is placed here.
Stand*
This stand supports the copyboard.
Pen tray
Main unit
Effective Reading Size
The area that can be copied is the gray area of
the diagram.
Note
• It might not be possible to print or copy when
storing to USB memory or personal computer
any portions that are drawn outside of this
range.
approx. 10 mm
approx. 10 mmapprox. 10 mm
approx. 10 mm
*The printer and stand may be sold separately.
Effective reading size
