A. Control Panel
Controls and regulates the operation of the PH Series Proportioner.
B. Isocyanate (Iso, A) Metering Pump
Meters the Isocyanate material.
C. Polyol (Poly, R) Metering Pump
Meters the Polyol material.
D. Isocyanate (Iso, A) Heater
Heats the incoming Isocyanate to a temperature set by the operator.
E. Polyol (Poly, R) Heater
Heats the incoming Polyol to a temperature set by the operator.
F. Hose Heating Transformer
Supplies the required voltage for material Heated Hoses.
G. Hydraulic Pressure Gauge
Indicates the pressure in the Hydraulic Drive System.
H. Isocyanate (Iso, A) Pressure Gauge
Indicates the pressure in the Isocyanate system.
I. Isocyanate (Iso, A) Safety Pressure Switch
Disables the pump circtuit in the event of excessive pressure in the Isocyanate
system.
J. Isocyanate (Iso, A) Thermocouple
Provides temperature information of the Isocyanate to its Temperature Controller.
K. Polyol (Poly, R) Pressure Gauge
Indicates the pressure in the Polyol system.
L. Polyol (Poly, R) Safety Pressure Switch
Disables the pump circuit in the event of excessive pressure in the Polyol system.
M. Polyol (Poly, R) Thermocouple
Provides temperature information of the Polyol to its Temperature Controller.

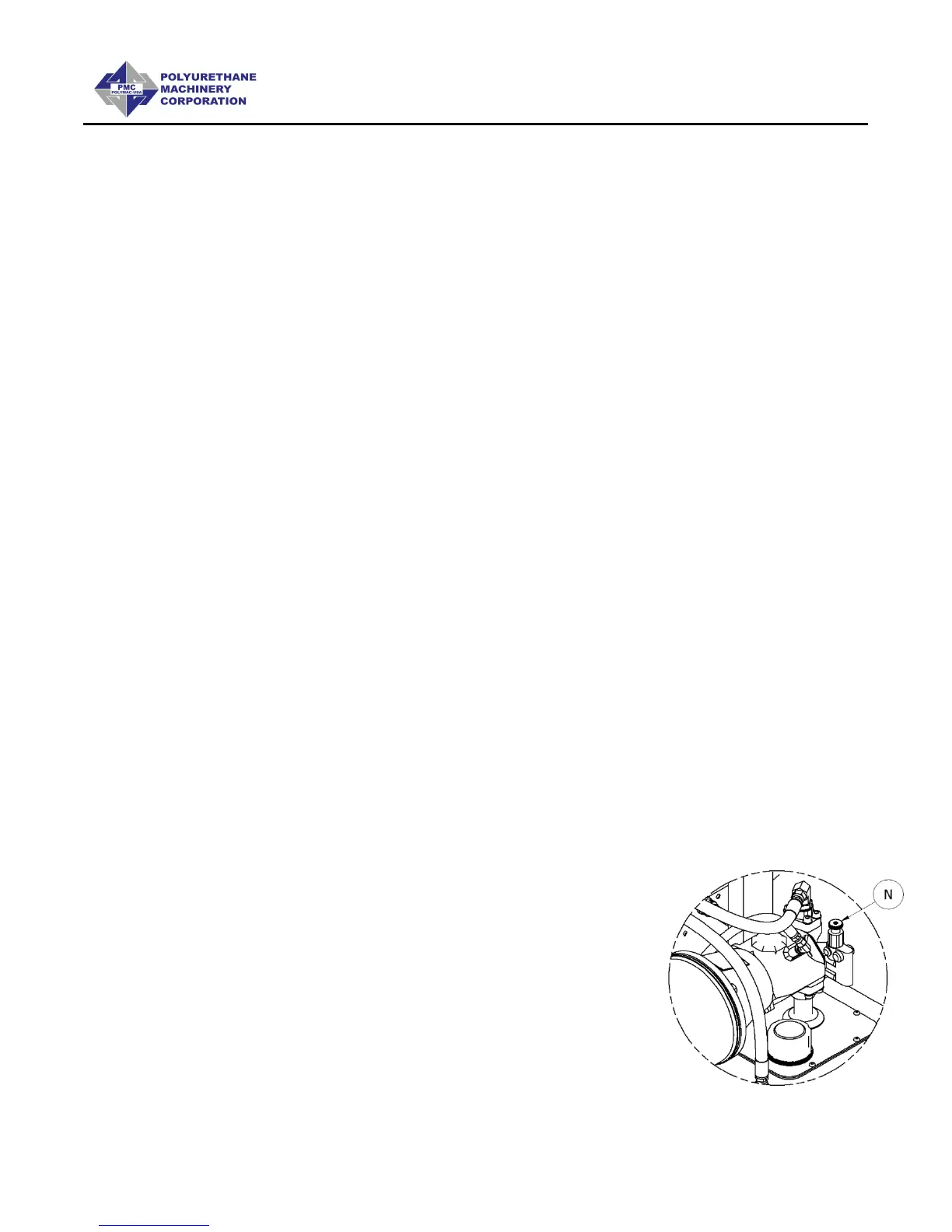

N. Hydraulic Pressure Control
Allows the pressure of the hydraulic system to be increased
or decreased. Turn clockwise to increase the pressure and
counterclockwise to decrease. To regulate the pressure of
the hydraulic system, the NORMAL or RETRACT Pump
Switch position must be selected.
O. Isocyanate (Iso, A) Inlet Material Strainer
Screens (60 mesh) material from bulk supply.
P. Polyol (Poly, R) Inlet Material Strainer
Screens (60 mesh) material from bulk supply.
