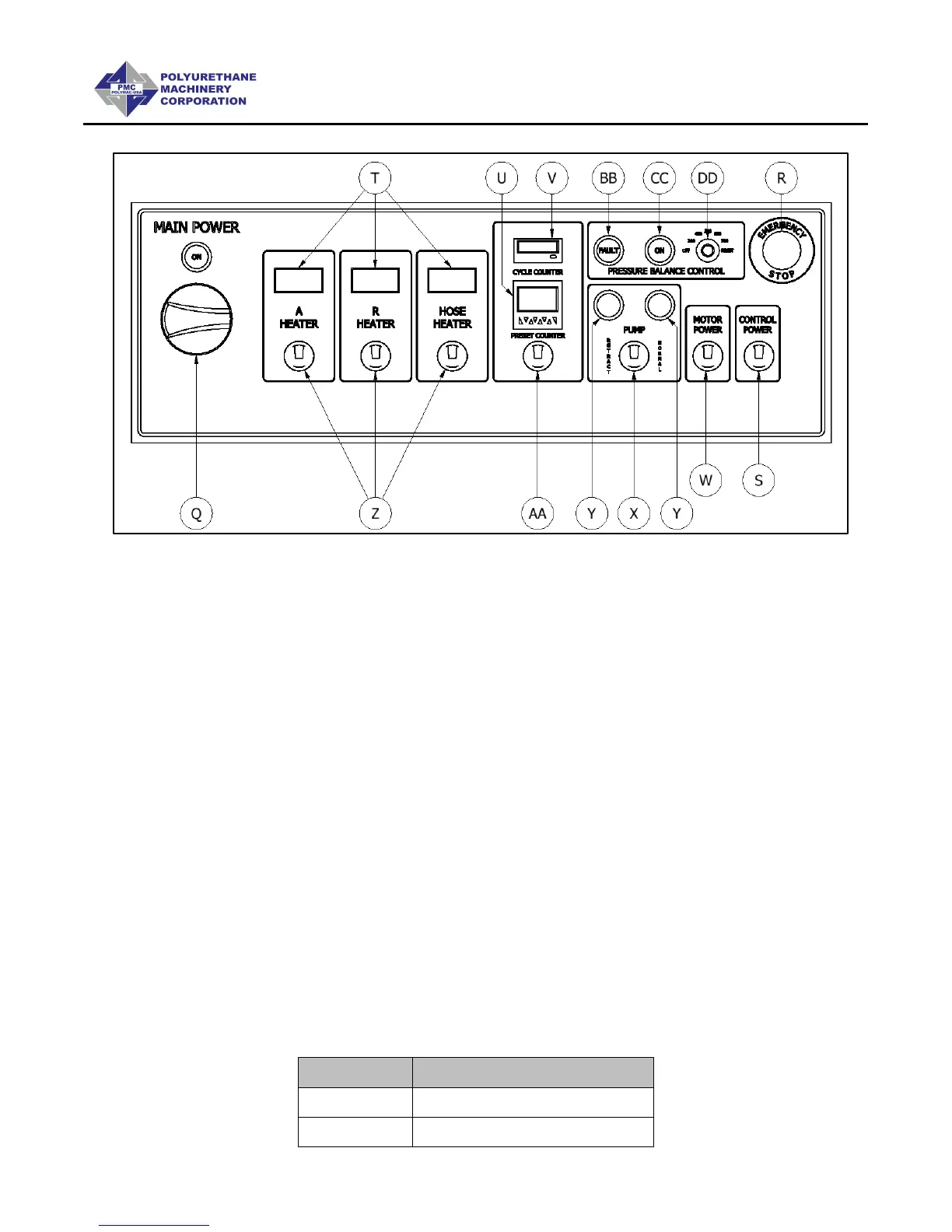

CLASSIS PH-SERIES
CONTROL PANEL
Q. Main Power - Turns ON and OFF main power to the control panel. It must be
turned ON for any operation to be performed with the unit. When turned ON, the
green pilot light will be lit.
R. Emergency Stop - Interrupts the PH Series control power circuit to stop all motion
and heating.
S. Control Power - Turns ON and OFF the control power to the complete electrical
circuit including Heaters and Hose Heater.
T. Heater Temperature Zones, A (Iso), R (Poly), HOSE - Turns ON and OFF power
to the specific Heaters. See page 22 for detailed Temperature Controller
instructions.
The Hose Heater Controller automatically controls the Hose Heater only when
using the TSU (Temperature Sensing Unit) probe.
U. Count Down Counter – Used to set the amount of cycles required to prevent the
chemical drums from running dry, the machine will shut down when the preset
cycles expires. There is an on/off switch to either activate this feature or deactivate
and not use it.
V. Cycle Counter – Indicates the number of pump cycles to calculate material usage.
