FUEL SYSTEM / CARBURETION
4.3

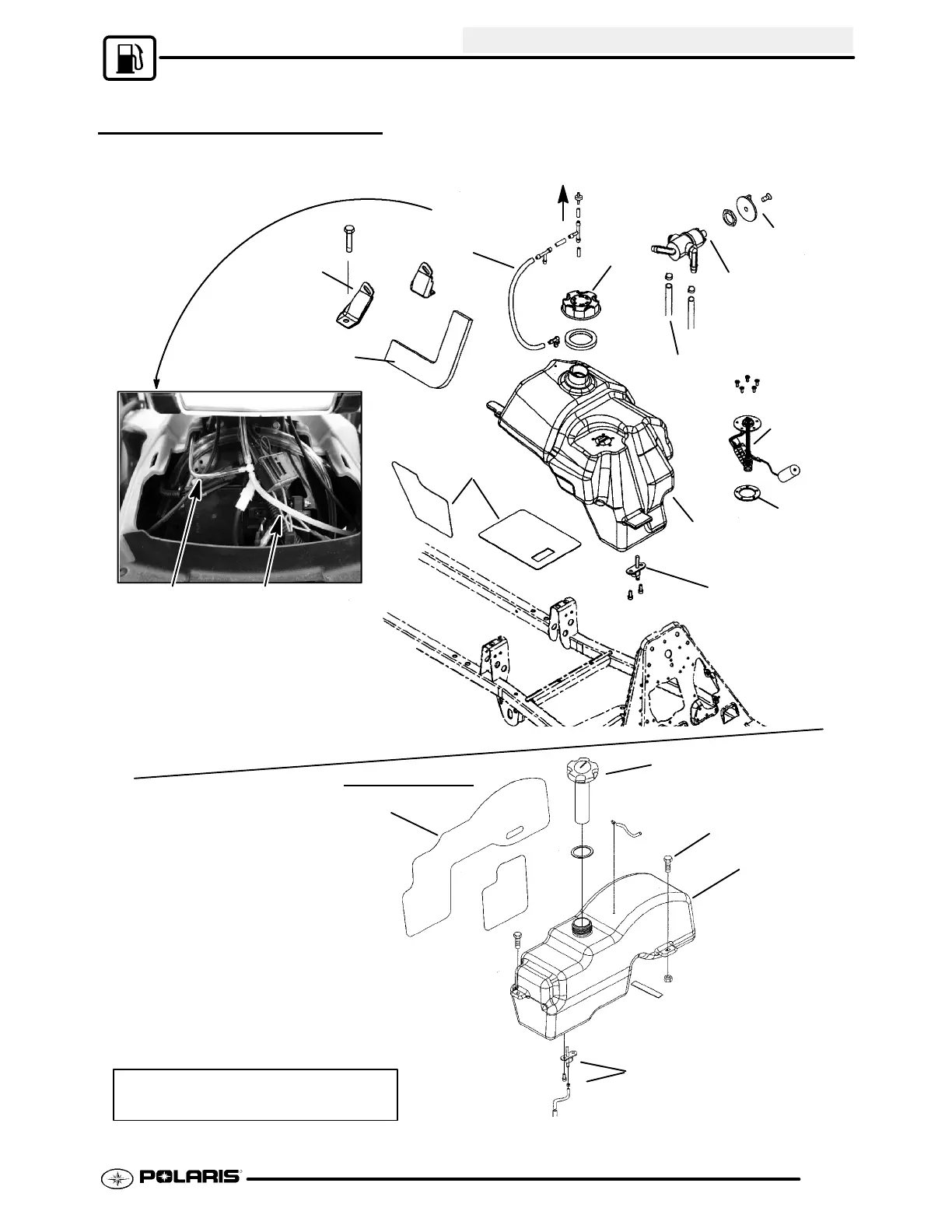

FUEL TANK ASSEMBLY
Rear Gas Tank
Gas Tank Foil
Fuel Outlet
Tank
Fuel Cap
Vent
NOTE: Located under rear rack See
Chapter 5 for rear tank removal.
Foam
Fuel Fitting
Foil
Fuel Valve
Knob
Brackets
3-- Way
Valve
Fuel
Sender
Vent Line
Fuel Lines
Tank
To Headlight Pod
Cap
Gasket
Rear Fuel
Tank Vent
Front Fuel
Tank Vent
