TRANSMISSION
8.6
NO TAG
A
B
C
D
E
Tighten Bolts In Sequence A through E

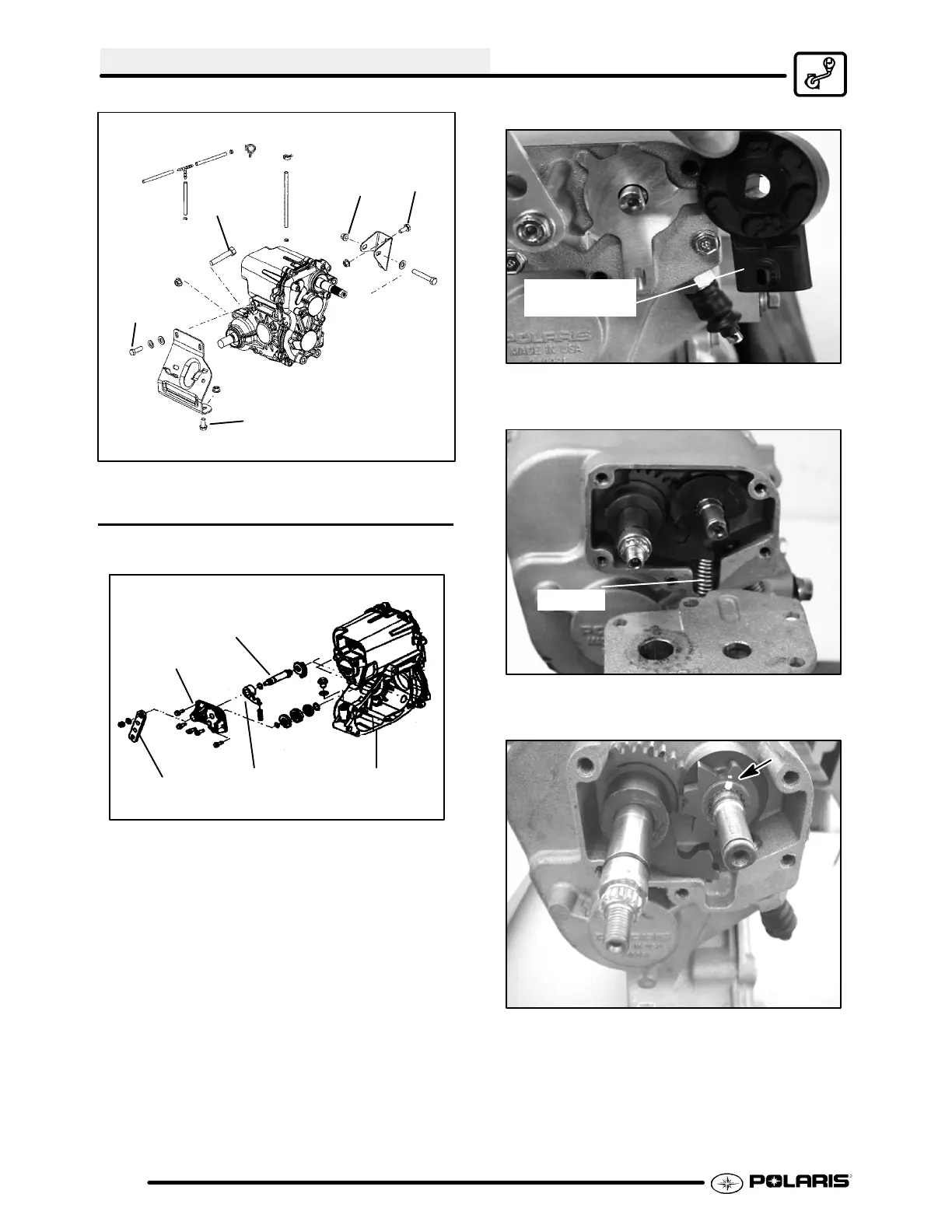

TRANSMISSION DISASSEMBLY
1. Place the bellcrank in neutral position.
Bellcrank
Cover
Shift Shaft
Detent Pawl
Case
2. Remove the nut, and washer that secure the bell
crank. Remove the bellcrank.
3. Remove the e--clip and then remove the
transmission switch.
Transmission
Switch
4. Remove the five bolts that secure the cover.
Remove the detent spring.
Spring
5. Mark the detent gear with a white pen. Remove the
detent gear from the case.
