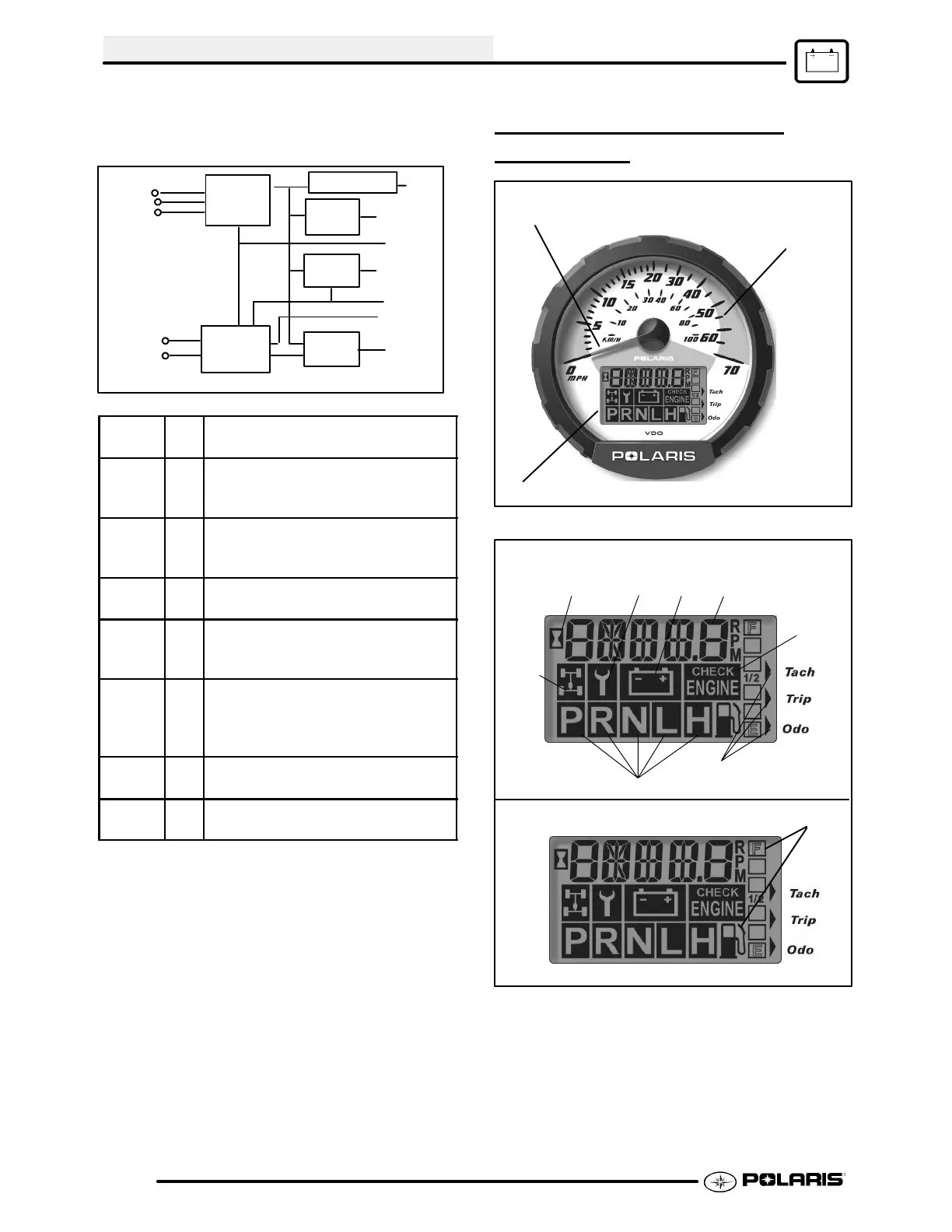

ELECTRICAL
10.4
of the solid--state device is exceeded it will shut off.
It will automatically turn back on when it has cooled.
Alternator
Input
3 Phase
Regulator
IPS
IPS
IPS
Engine
Tem p
Controller
Thermistor
Fan
Hot Lamp
Run
ACC_PWR
Ground
BAT_PROT
BAT+
Reverse
Polarity Protection
Wire
Color
Pin Description
Orange A
and
B
BAT_PROT -- Protected battery
output used to power the headlight
and instrument cluster.
Brown C
and
H
GND -- Battery Negative
Blue/
White
D HOT_LAMP -- Engine hot signal.
Provides a ground path for a lamp.
Red E
and
F
BAT+ -- Positive side of battery.
Both pins should be used to carry
current.
Red /
White
G RUN -- At +12V when ignition
switch is on and RUN/OFF switch
is RUN. Enables Accessory Pow-
er, Fan, HOT Lamp operation.
Orange
/Black
J Power to the fan.
Orange
/White
K ACC_PWR -- Provides power to
the accessories.
INSTRUMENT CLUSTER
OVER
VIEW
Ill.1
(A) Speedo Needle (also flashes
during warning condition)
(B) Speedometer
in MPH/KPH
(C) Rider Information Center
1
2
3
4
5
6
7
8
Ill.2
9
LCD Display
