ELECTRICAL
10.32

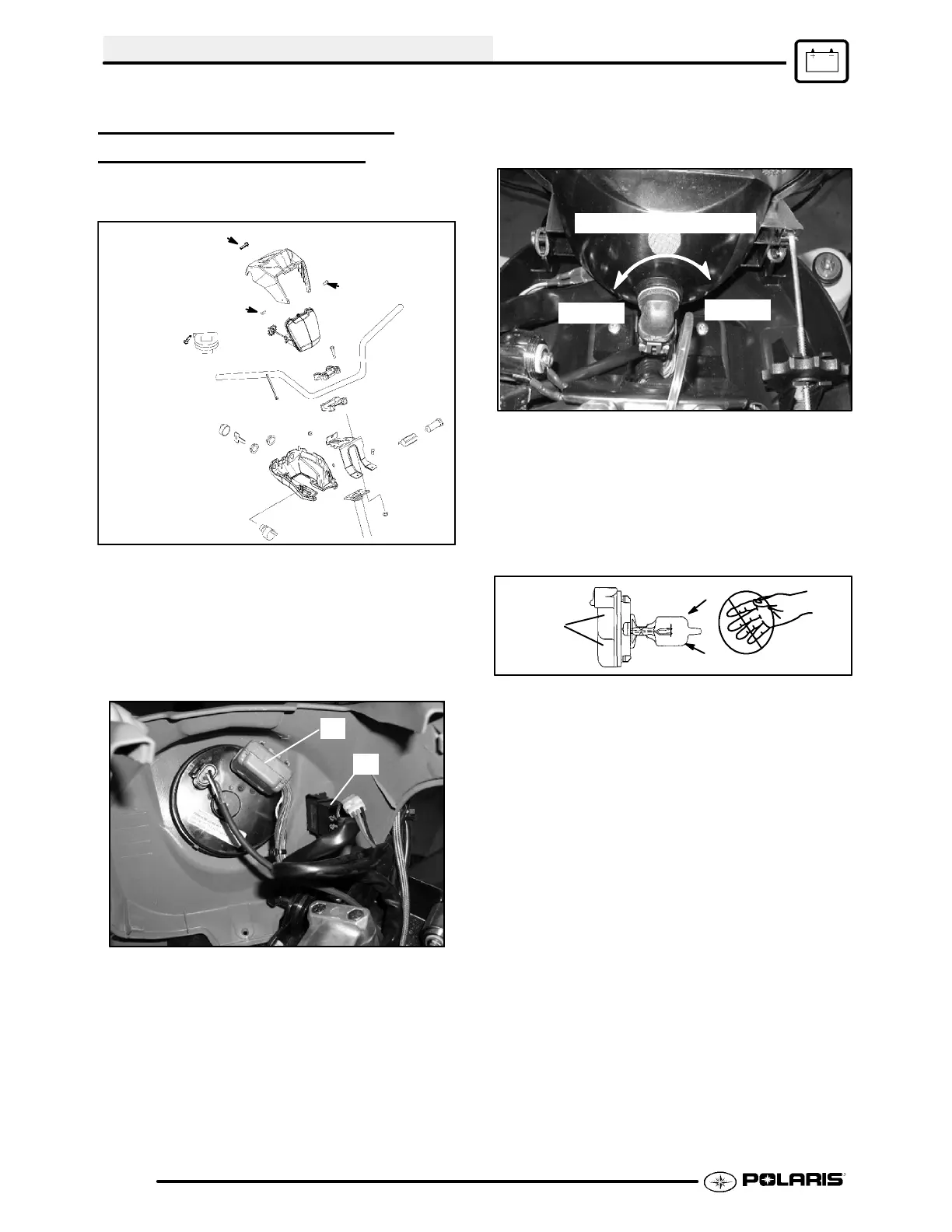

HIGH BEAM HEADLIGHT
BULB
REPLACEMENT
CAUTION: Do not service while headlight is hot.
Serious burns may result. Protect lamp during install.
Remove 3 screws
1. Remove three Phillips screws on the headlight
pod.
2. Lift pod cover up.
3. Disconnect instrument cluster harness (A) and
winch selection switch (B).
A
B
4. Turn the headlight lamp socket counter--clockwise
and remove.
Loosen
Tighten
Turn Harness Assembly
5. Carefully remove headlamp bulb from housing.
6. Remove the headlamp and replace with a new
headlamp.
NOTE: Do not touch the lamp with bare fingers. Hold
the plastic part (1) of the lamp. Oil from your skin
leaves a residue, causing a hot spot that will shorten
the life of the lamp.
1
7. Install the new headlamp and harness assembly
into the headlight assembly. Turn the headlight
harness clockwise to secure the headlamp into
place.
