BODY / STEERING / SUSPENSION
5.7
FRONT BRUSHGAURD
REMOVAL/INST
ALL

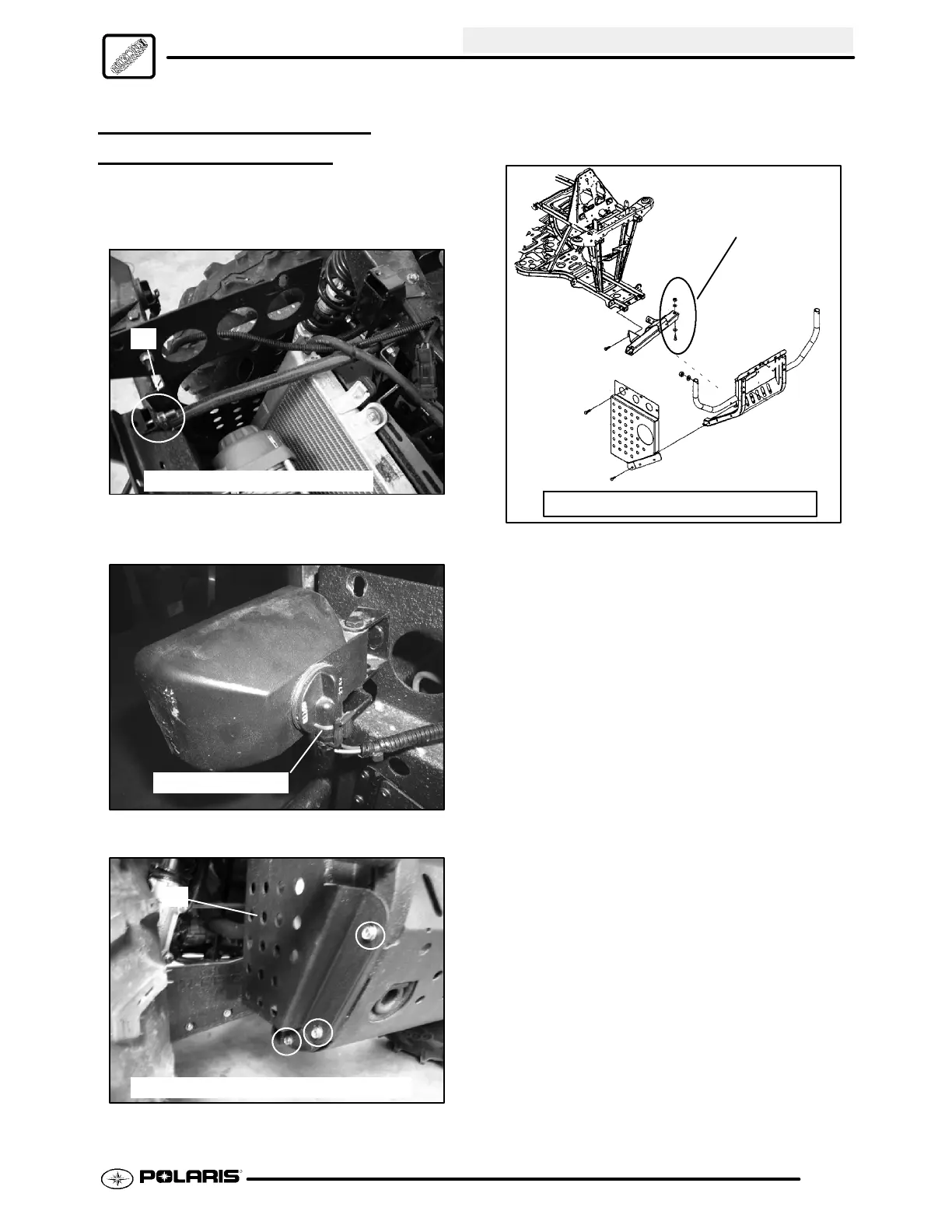

1. With the front top rack removed, remove the bolts
(A) that secure the front brushgaurd to the main
frame (each side).
Reassembly: 18 ft.lbs. (24 Nm)
A
2. Disconnect the lower headlight wiring harnesses.
3. Disconnect the winch wiring harness.
Remove Harness
4. Remove the side vent shields (C), if needed.
C
Reassembly: 14--16 ft.lbs. (19--22 Nm)
5. Remove the bolts (B) that secure the bottom of
the front brushguard to the brushguard mount.
Reassembly: 14--16 ft.lbs. (19--22 Nm)
B
6. Pull the front brush guard from the frame
assembly.
7. For installation reverse the removal procedure.
