BODY / STEERING / SUSPENSION
5.12
WARN® WINCH SWITCH
INSTALLA
TION

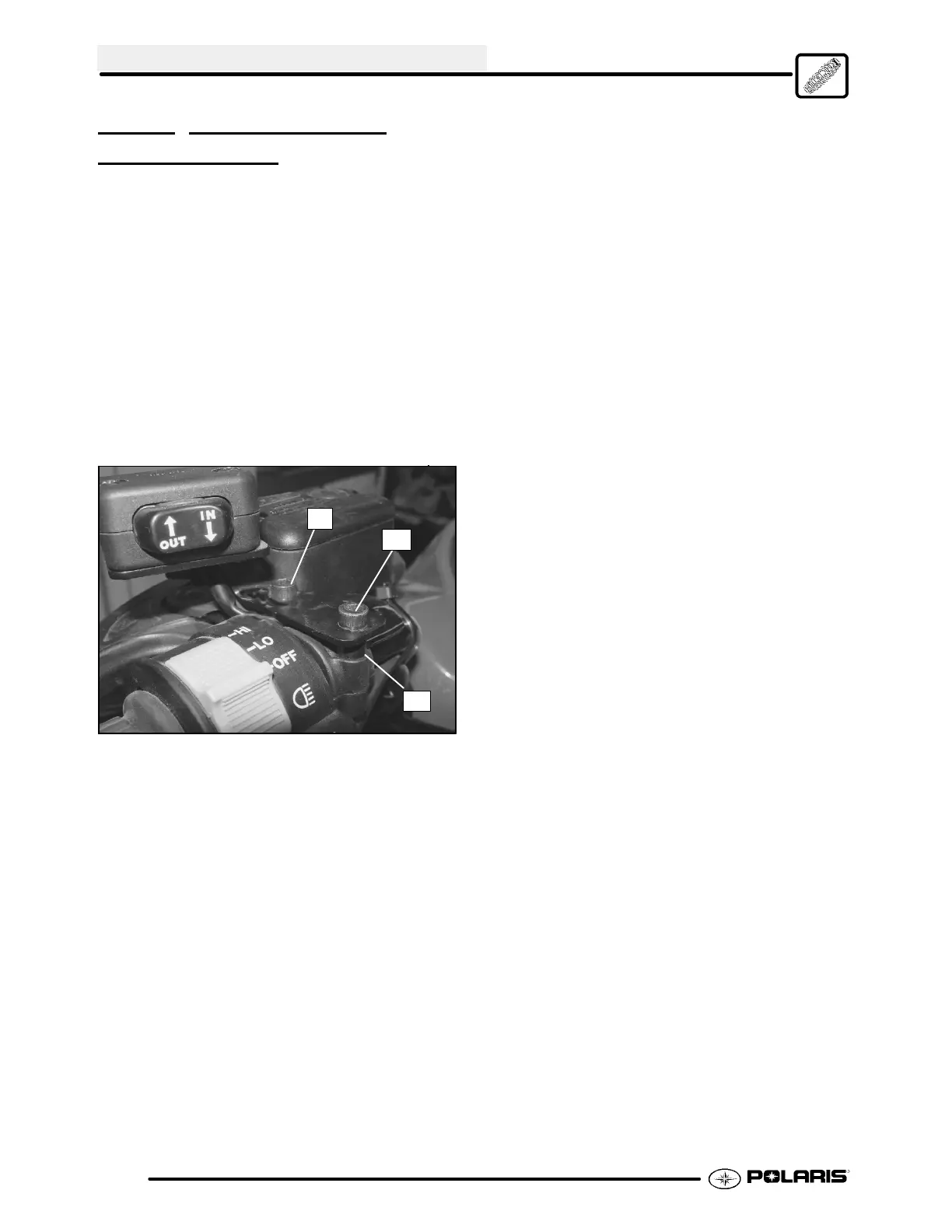

1. Remove the front (A) and rear (B) bolts from the
master cylinder clamp. Be careful not to lose the
spacers (C).
2. Rotate the winch mini--rocker switch upward and
mount as shown. Route the wire between the
switch mounting bracket and the master cylinder
clamp, next to the front spacer.
3. Reposition the spacers between the switch
mounting bracket and the master cylinder clamp
and reinstall the bolts to secure the switch. Torque
the rear bolt first (B), then torque the front bolt (B).
Torque to 25 in.lbs. (3 N/m).
4. Secure the cables to the handlebars as needed
with the new panduits.
C
A
B
