FINAL DRIVE
7.30

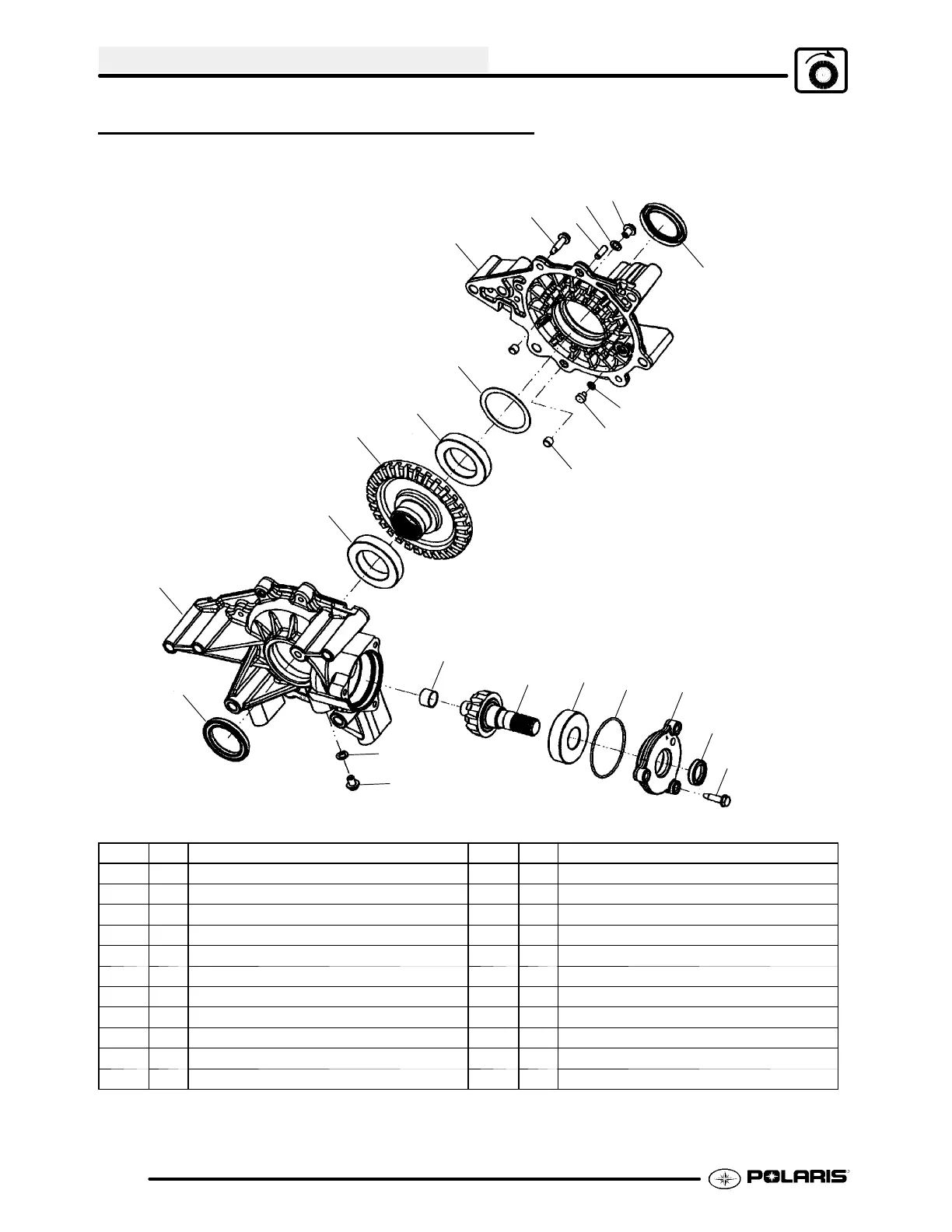

REAR GEARCASE EXPLODED VIEW
Ref. Qty. Description Ref. Qty. Description
1 Asm., Rear Gearcase 11. 1 10T Pinion Shaft
1. 1 Cover, Output, LH 12. 1 Ball Bearing
2. 8 Screw 13. 1 O--ring
3. 1 Tube Vent 14. 1 Cover, Input
4. 2 Washer 15. 1 Seall
5. 2 Plug 16. 1 Rear Gearcase Housing
6. 2 Bearing, Roller Ball 17. 2 Ball Bearing
7. AR Shim 18. 1 31T Gear
8. 1 Thrust Button 19. AR Shim
9. 2 Knock Pipe
10. 1 Bushing
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2
5
4
6
16
17
18
17
19
