9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
3.57

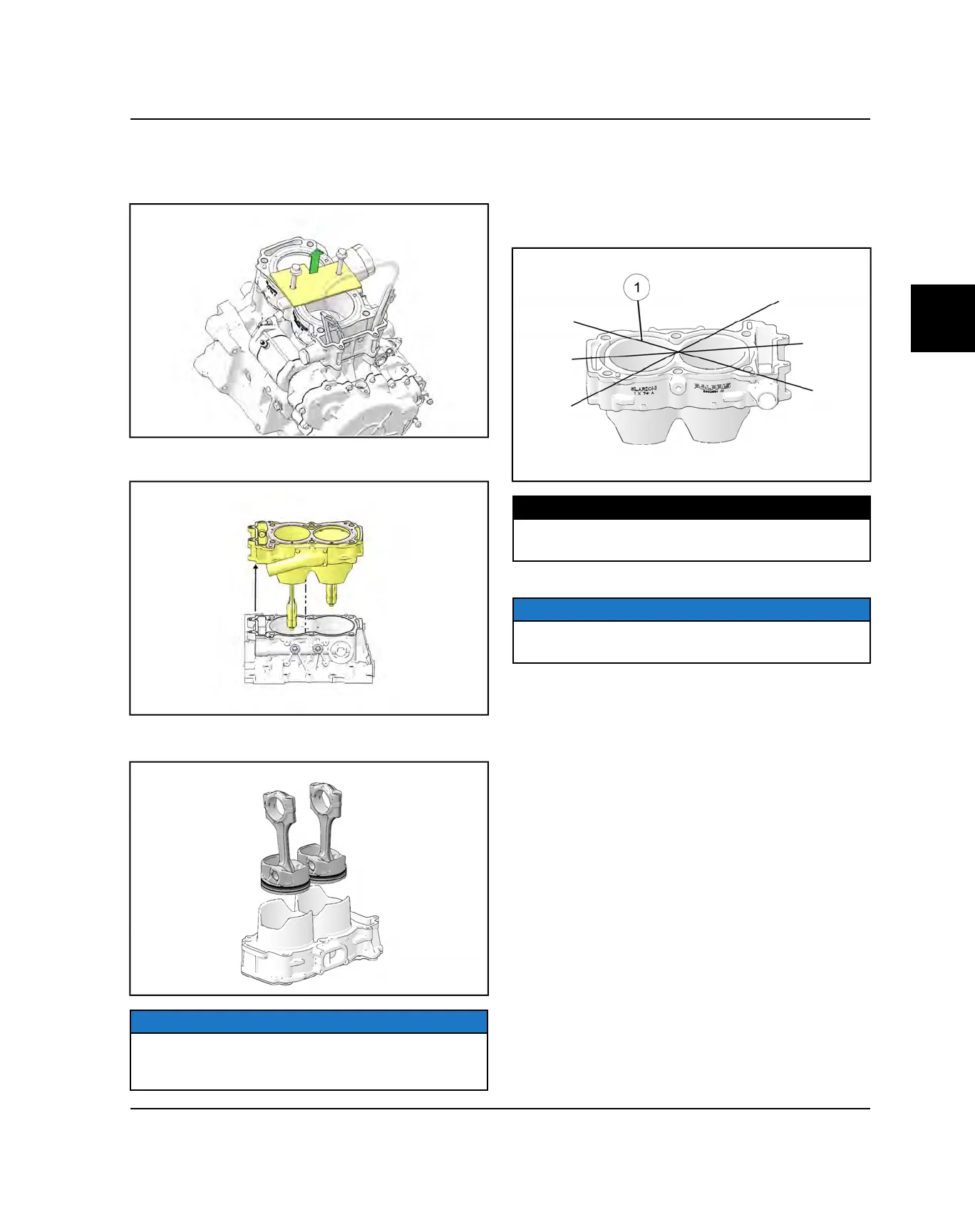

2. Rotate the engine so the cylinder is facing up.
3. Remove the Cylinder Holding & Camshaft Timing
Plate (PU-50563) from the cylinder.
4. Carefully lift the cylinder and pistons from the upper
crankcase.
5. Remove the piston / connecting rod assemblies from
the cylinder.
NOTE
If the pistons are to be reused, mark the pistons so they
are reassembled in the same cylinder bore and
direction from which they were removed (MAG / PTO).
CYLINDER INSPECTION
1. Lay a straight edge across the top surface of the
cylinder at several different points
q
and measure
warp by inserting a feeler gauge between the straight
edge and the cylinder surface. If warp exceeds the
service limit, replace the cylinder.
MEASUREMENT
Cylinder Warp Limit:
.002" (0.05 mm)
2. Inspect cylinder for wear, scratches, or damage.
NOTE
DO NOT hone the cylinders or attempt to repair a
damaged cylinder by honing.
3. Inspect taper and out of round with a dial bore
gauge.
ENGINE
