DRIVEN CLUTCH SERVICE

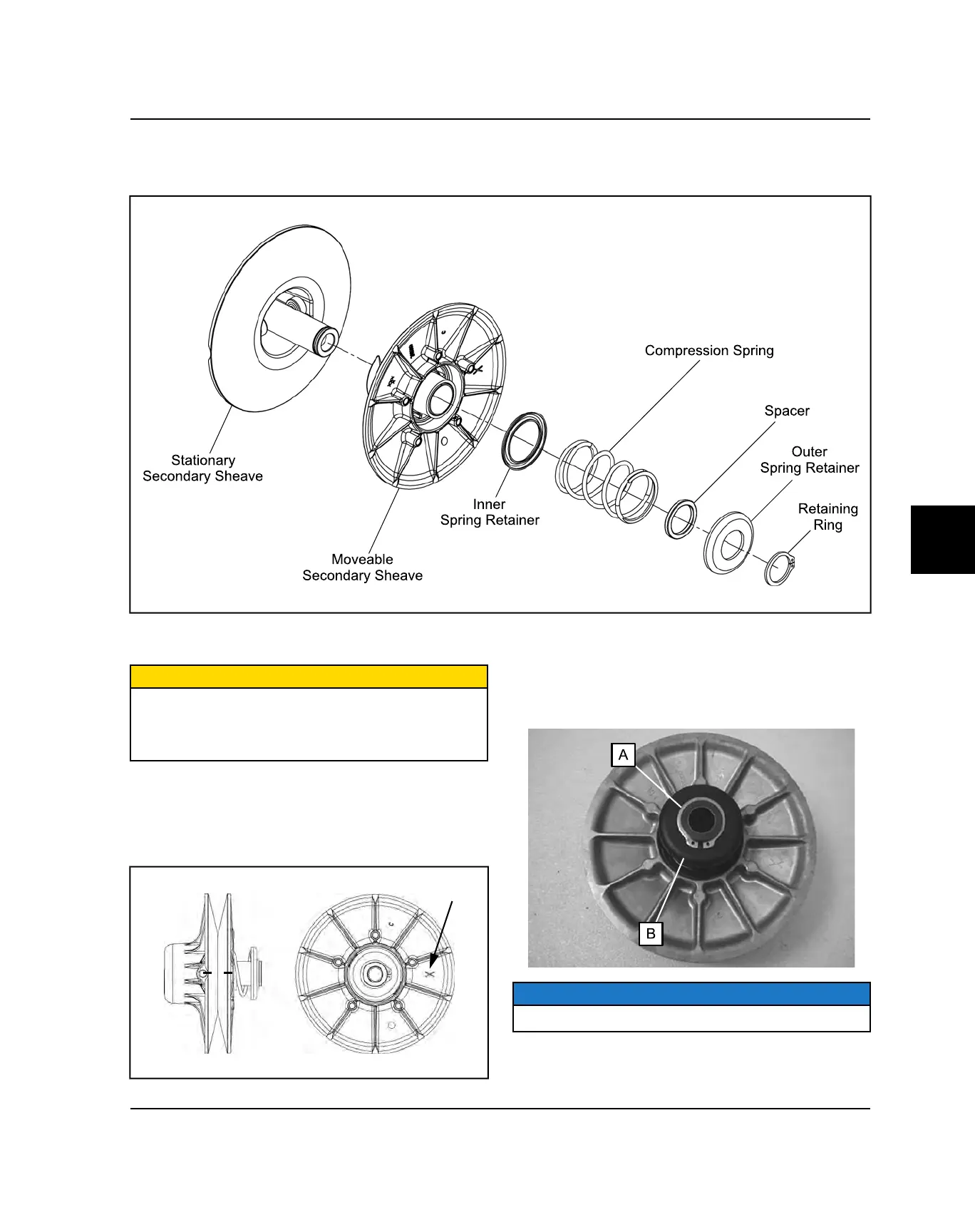

EXPLODED VIEW
CLUTCH DISASSEMBLY / INSPECTION
CAUTION
Wear eye protection when removing snap ring to
prevent serious personal injury.Use caution when
removing, the snap ring pressure is loaded by the
compression spring.
1. Remove driven clutch from transmission input shaft.
2. Mark the position of the clutch sheaves before
disassembly or use the X’s on the sheaves for
reference. This aids in reassembly and maintains
clutch balance after reassembly.
3. Place the driven clutch into the Universal Clutch
Compressor PU-50518. Apply and hold downward
pressure on the outer spring retainer. Carefully
remove the snap ring (A). Remember the outer
spring retainer (B) contains strong spring pressure.
NOTE
Spring is compression only and has no torsional wind.
