9. Remove (2) T-40 Torx-head screws holding the front
floor to the frame.
10. Remove (4) push rivets retaining the front floor to the
front fenders and cab frame mounts.
11. Remove the front floor from the vehicle.
REAR FLOOR - CREW
1. Remove both rear rocker panels (see “Rocker Panel
Removal”).
2. Remove both front rocker panels (see “Rocker Panel
Removal”).
3. Remove the battery.

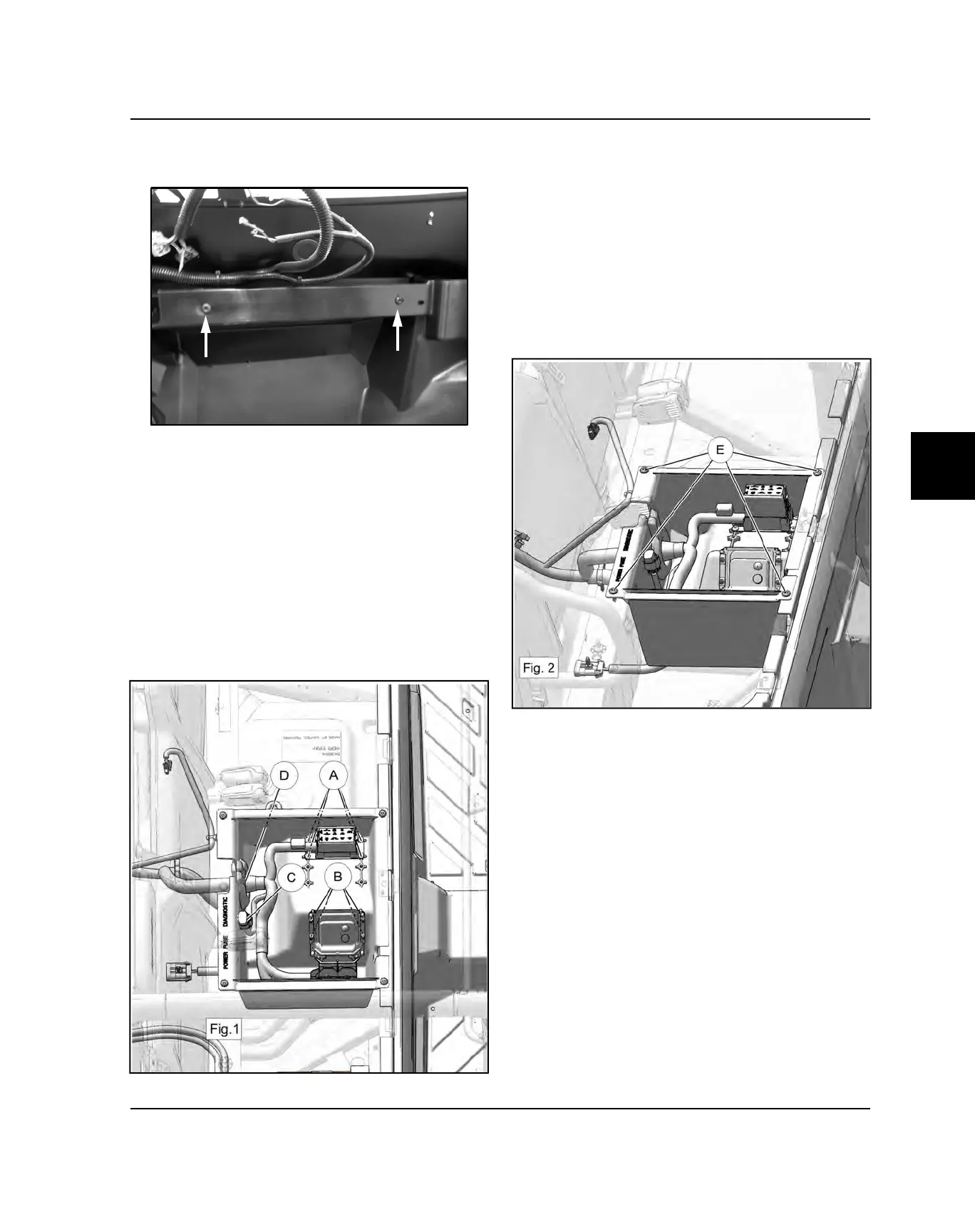

4. Remove (4) T-25 Torx fasteners (A) Fig. 1 securing
the fuse box to the center under seat storage box.
5. Remove (4) T-25 Torx fasteners (B) Fig. 1 securing
the Electronic Control Unit (ECU) to the seat storage
box.
6. Remove the diagnostic connector (C) Fig. 1 from the
protective cover.
7. Remove the (4) T-40 Torx fasteners from the center
under seat storage box.
8. Remove the wire harness grommet (D) Fig. 1 to
separate the fuse box, ECU and diagnostic connector
wire harness from the storage box.
9. Remove the (4) T-25 Torx fasteners (E) Fig. 2
securing the storage box.
BODY / STEERING / SUSPENSION
