8.6
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
TRANSMISSION REMOVAL
CAUTION
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this
procedure. Always wear eye protection.
1. Disconnect the (-) negative battery cable from the
battery.
2. Remove the rear cargo box from the vehicle (see
Chapter 5).
3. Raise and support the vehicle.
4. Remove the front propshaft (see Chapter 7).
5. Remove both rear drive shafts from the transmission
(see Chapter 7).
6. Remove the outer clutch cover, drive and driven
clutch and inner clutch cover (see Chapter 6).
NOTE

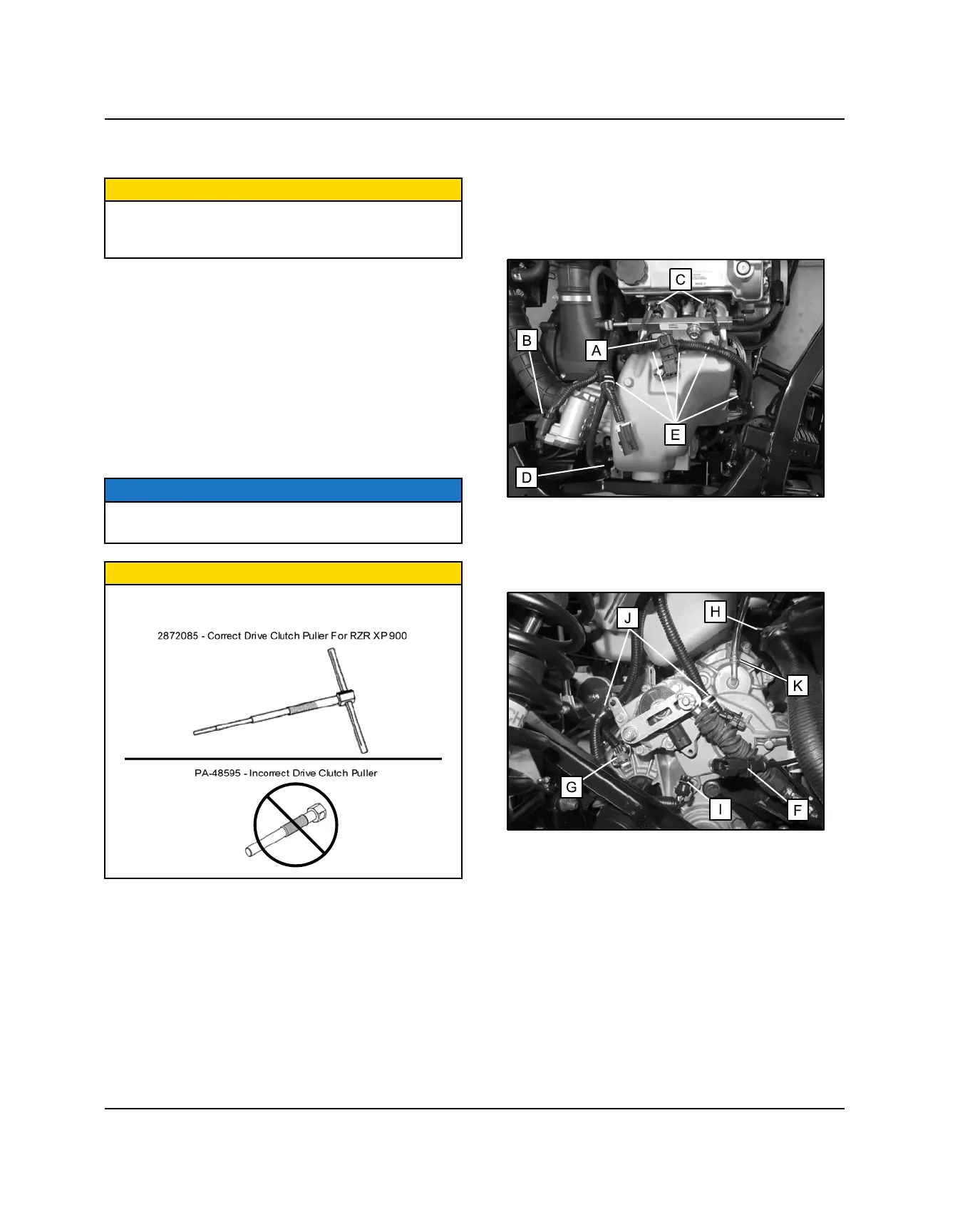

Be sure to use the correct Drive Clutch Puller (PN
2872085) to prevent damage to crankshaft.
CAUTION
Correct Drive Clutch Puller P/N 2872085
7. Disconnect the harness from the T-MAP sensor (A),
ETC (B), fuel injectors (C), rear differential relay and
solenoid (D). Remove the (5) plastic tie straps (E)
retaining the harness to the intake plenum.
8. Disconnect CPS (F), vehicle speed sensor (G), ECT
sensor (H) and transmission switch (I). Remove the
tie straps (J) retaining the harness to the
transmission.
9. Remove the vent line (K) from the transmission
fitting.
TRANSMISSION
