SHIFT LEVER
REMOVAL / INSTALLATION

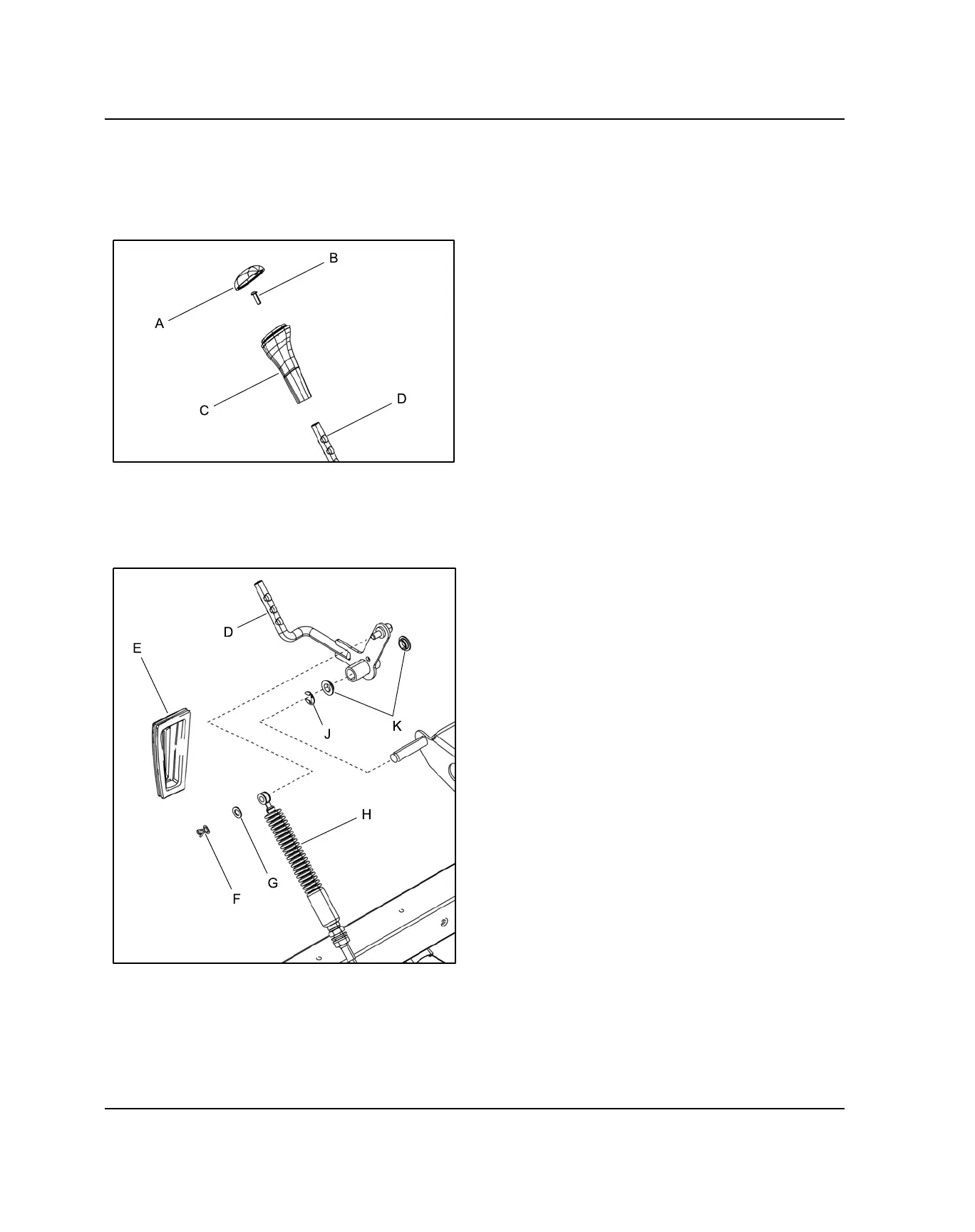

1. Remove the shift knob cover (A), retaining screw (B)
and shift knob (C) from the shift lever (D).
2. Remove the (4) push rivets retaining the upper dash
panel and remove the panel to access the shift lever.
3. Remove the rubber grommet (E) from the dash and
shift lever (D).
4. Remove clip (F) and washer (G) retaining the shift
cable (H) to the shift lever (D). Disconnect cable end
from the lever.
5. Remove the retaining ring (J) and slide the shift lever
(D) off the mounting bracket and out from the frame.
6. Remove both bushings (K) from the shift lever and
service as needed.
7. Perform the previous steps in reverse order to
reinstall the shift lever (lever, cable, dash panel, shift
knob).
