9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
9.27

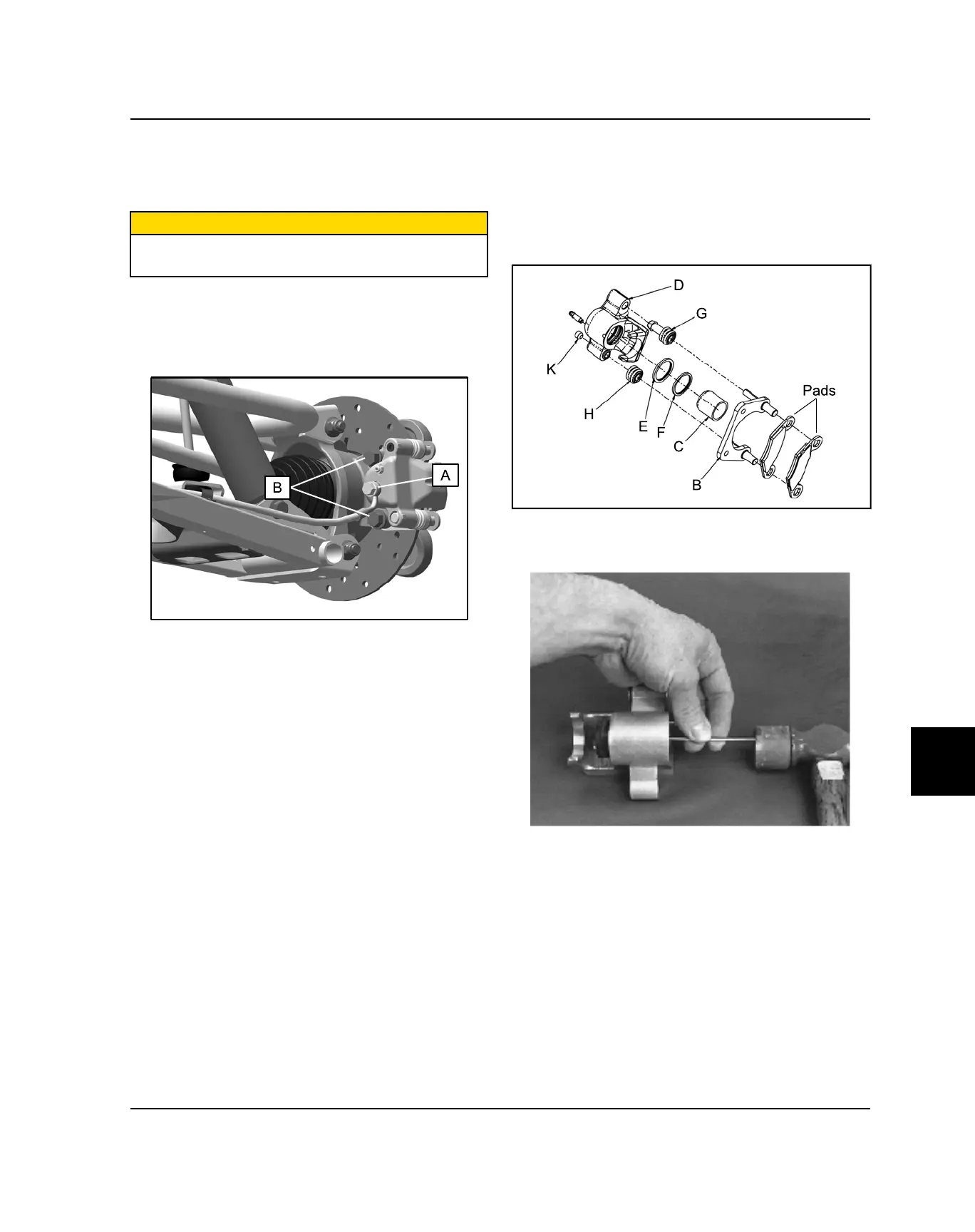

CALIPER REMOVAL
1. Elevate and safely support the rear of the vehicle.
2. Remove the (4) wheel nuts and the rear wheel.
CAUTION
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur.
3. Clean caliper area before removal.
4. Place a container below the caliper to catch brake
fluid when removing the brake line. Use a wrench to
remove the brake line banjo bolt (A).
5. After the fluid has drained into the container, remove
the two caliper mounting bolts (B) and brake caliper.
6. Clean the brake disc, caliper body and caliper
pistons with brake cleaner or alcohol.
CALIPER DISASSEMBLY
1. Remove brake pad adjustment set screw (K).
2. Push upper pad retainer pin inward and slip brake
pads past the edge and remove from the caliper.
3. Remove mount bracket (B) and dust boots (G and
H).
4. Using a hammer and a small punch, remove the
piston (C) from the caliper body (D). Remove the
square O-rings (E) and (F) from the caliper body (D).
