Polaris RANGER CREW 900 EPS 2014 - Connecting Rod Bearing Selection; Crankshaft Main Bearing Selection

3.64
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.

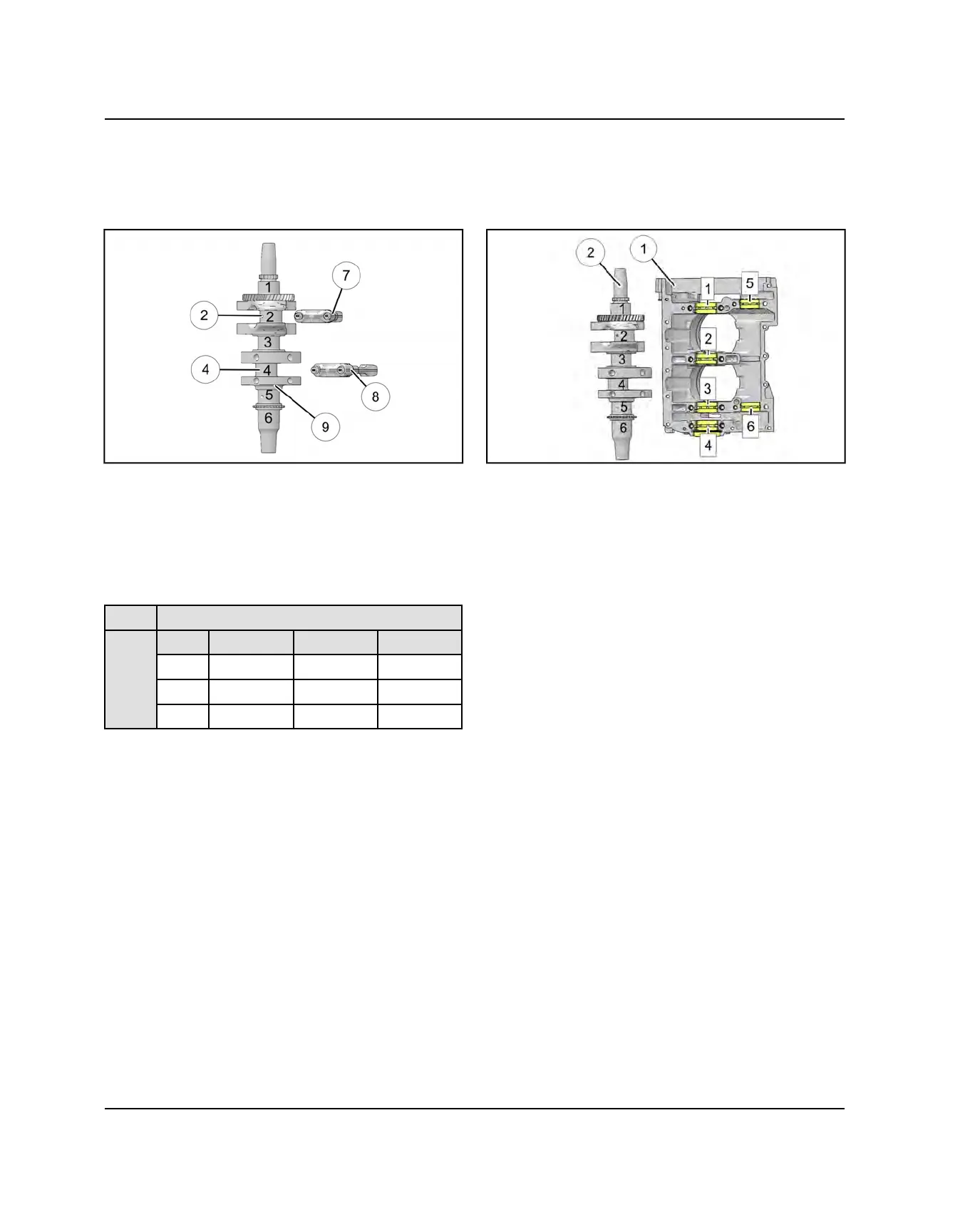

CONNECTING ROD BEARING SELECTION
In order to select the proper bearing for the connecting
rods, you must reference the number on each connecting
rod
u
&
i
and match that up with the rod journal letters
on the crankshaft
o
.
In this example, you would use the number 2 as the
connecting rod code. You would use letters G and G as
the crankshaft codes (crank journals 2 and 4).
Based off the bearing selection chart, you would use:
Green bearing for each connecting rod
Bearing Selection Chart – Rod Bearings
CRANKSHAFT
Rod
Code B G Y
1 Blue Blue Green
2 Blue Green Yellow
3 Green Yellow Yellow
CRANKSHAFT MAIN BEARING SELECTION
In order to select the proper main bearings for the
crankshaft, you must reference the six numbers on the
crankcase
q
and match that up with the main journal
letters on the crankshaft
w
.
In this example, you would use the number 2 as the
crankcase codes (case journals 1, 2, 3, 4). You would
use letters G, Y, G, Y as the crankshaft codes (crank
journals 1, 3, 5 and 6).
Based off the bearing selection chart, you would use:
Green bearing for Main #1
Yellow bearing for Main #2
Green bearing for Main #3
Yellow bearing for Main #4
ENGINE
