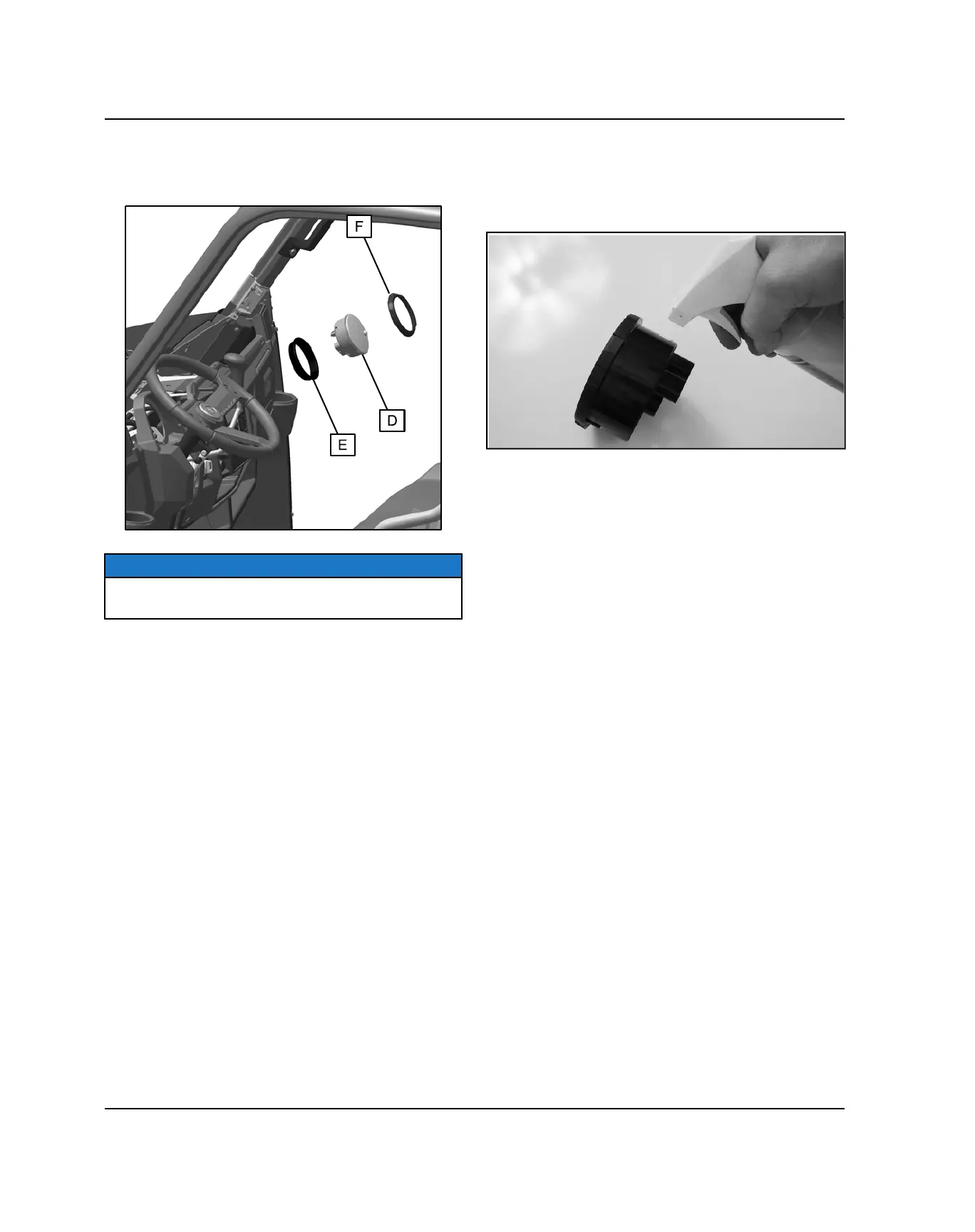

3. Push the instrument cluster (D) out of the lower dash
panel, while securely holding the panel and rubber
mount (E).
NOTE
The instrument cluster bezel (F) is a snap-on assembly
and is a serviceable part.
INSTRUMENT CLUSTER INSTALLATION
1. Spray a soap and water mixture onto the outer
surface area of the instrument cluster. This will help
the instrument cluster slide into the rubber mount
more easily.
2. Be sure the rubber mount is fully installed and that
the indexing key on the rubber mount is lined up with
the keyway in the dash panel.
3. Hold the dash panel securely and insert the
instrument cluster into the dash panel. Twist the
instrument cluster gently in a clockwise motion to
properly seat the instrument cluster. Apply pressure
on the bezel while pressing on the instrument cluster.
4. Connect the wire harness to the instrument cluster.
5. Install the upper dash panel and push rivets.
