6
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
6.19

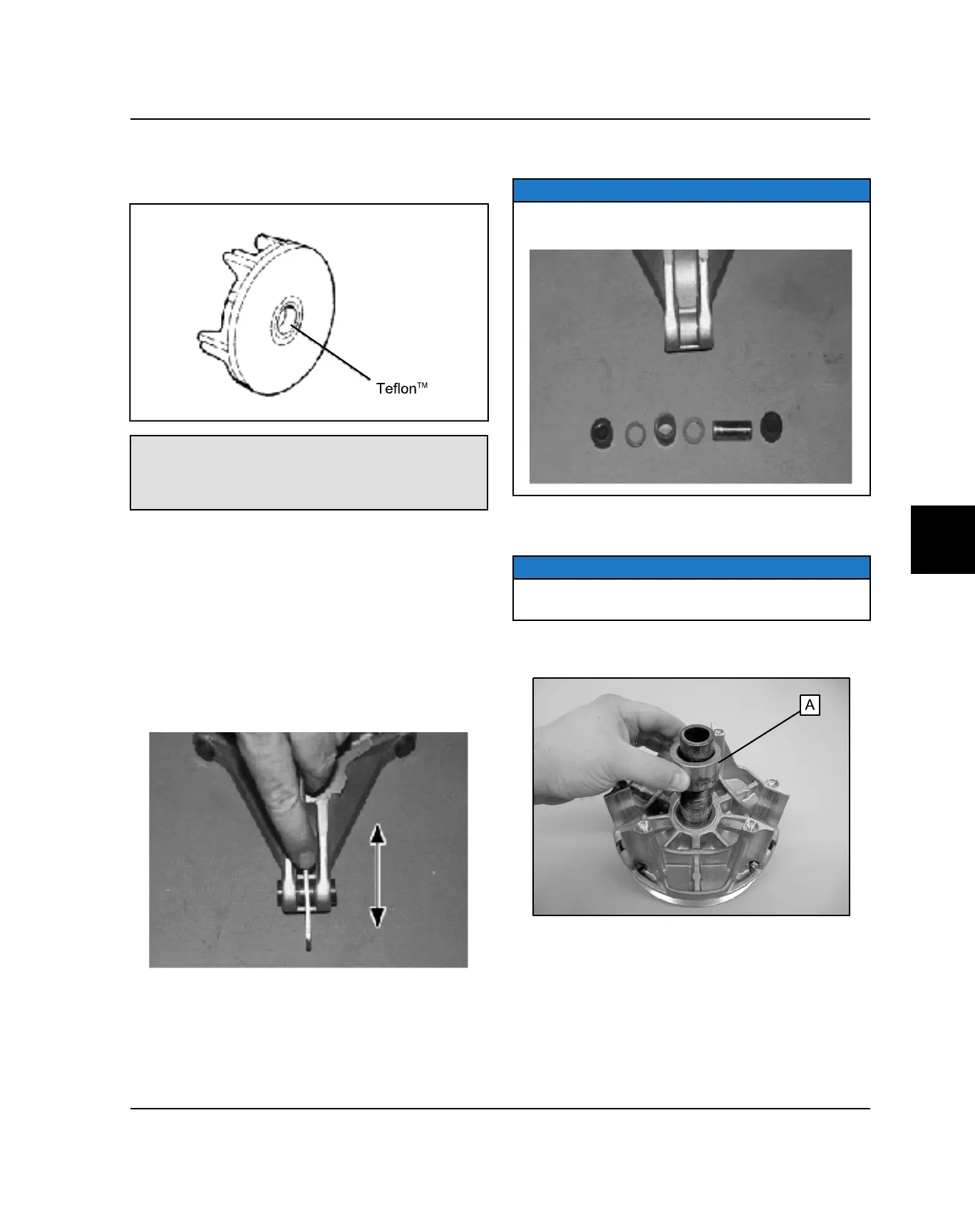

Moveable Sheave Bushing Inspection
2. Inspect the Teflon® coating on the moveable sheave
bushing.
Moveable Sheave Bushing Inspection:
Replace the cover bushing if more brass than Teflon®
is visible on the bushing. Refer to “Bushing Service” in
this chapter.
ROLLER, PIN, AND THRUST WASHER
INSPECTION
1. Inspect all rollers, bushings and roller pins by pulling
a flat metal rod across the roller. Turn roller with your
finger. If you notice resistance, galling, or flat spots,
replace rollers, pins and thrust washers in sets of
three. Also inspect to see if roller and bushing are
separating. Bushing must fit tightly in roller. Use the
Roller Pin Tool (PN 2870910) to replace rollers and
pins. Take care not to damage roller bushing or
bearing surface of the new pin during installation.
2. Rubber backed buttons and solid roller pins are used
in this RANGER clutch.
NOTE
The rubber side of the button is positioned toward the
solid roller pin.
CLUTCH INSPECTION
NOTE
Remove cover, spring and spider following instructions
for drive clutch disassembly, then proceed as follows:
1. Remove the moveable sheave spacer (A). Inspect
for damage or wear.
CLUTCHING
