9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
4.33

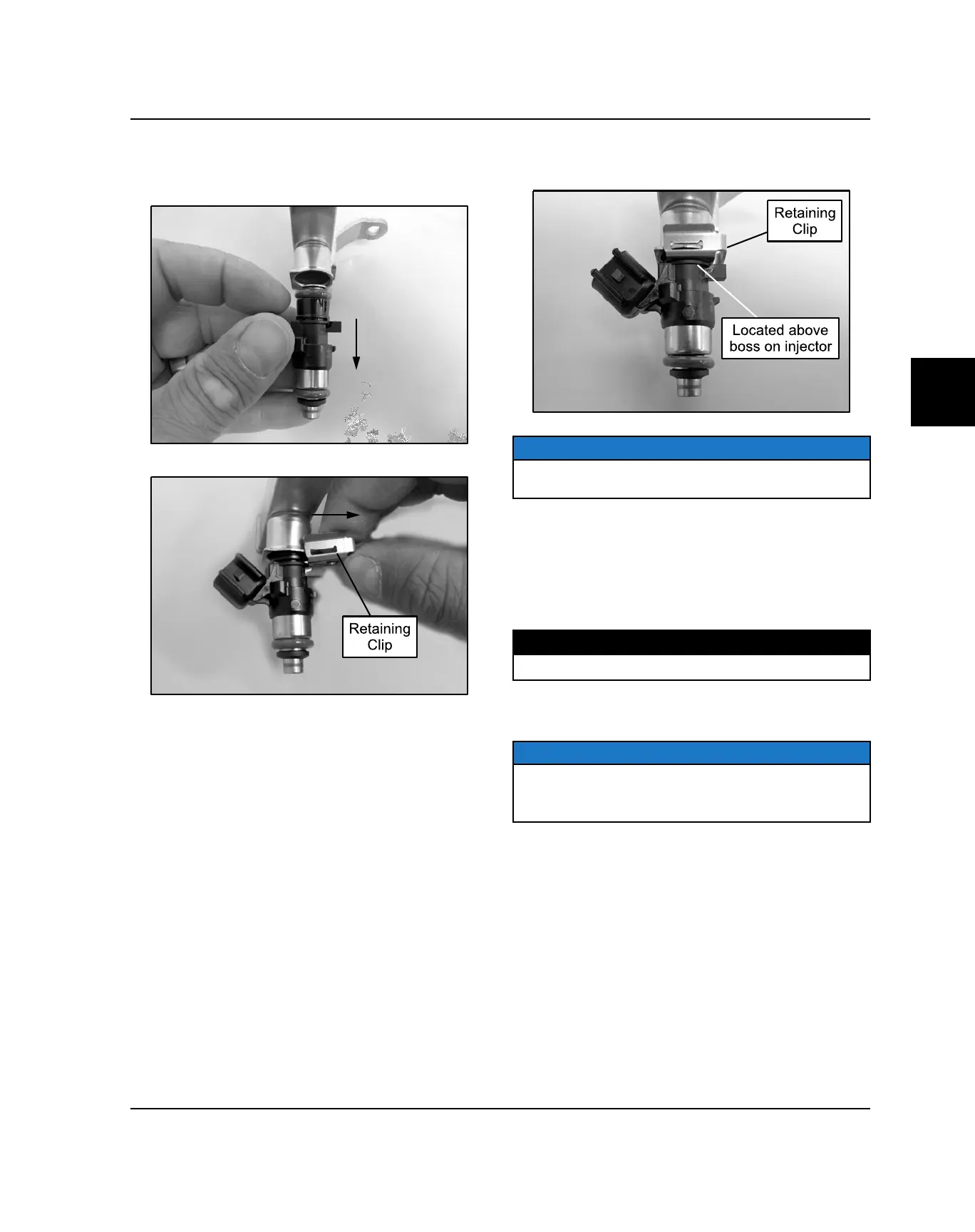

10. Pull out on the fuel injector retaining clip and pull the
injector out of the fuel rail. Repeat on the other
injector if removal is necessary.
11. Upon installation of the new fuel injectors, lightly
lubricate the injector O-rings to aid installation.
12. Install the new injector (s) into the fuel rail and
reinstall the retaining clip.
NOTE
Be sure the retaining clip is positioned on the injector
and fuel rail as shown above.
13. Thoroughly clean the area around the fuel injector
ports on the intake plenum.
14. Lightly lubricate the injector O-rings and reinstall the
fuel rail / injector assembly into the intake plenum.
15. Install the fuel rail mounting screws and torque to
specification.
TORQUE
Fuel Rail Mounting Screws:7 ft-lbs (10 Nm)
16. Reinstall the fuel line to the fuel rail.
17. Connect the harness leads to the fuel injectors.
NOTE
Be sure to connect the PTO harness lead to the PTO
injector and the MAG harness lead to the MAG injector
to ensure proper engine operation.
18. Reconnect the negative battery cable and reinstall
the storage bin and passenger seat base.
19. Turn the key to the on position and wait for fuel pump
to prime the fuel system.
20. Start the engine briefly and inspect the fuel rail and
injectors for fuel leaks.
FUEL SYSTEM - GENERAL
