7.20
9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.

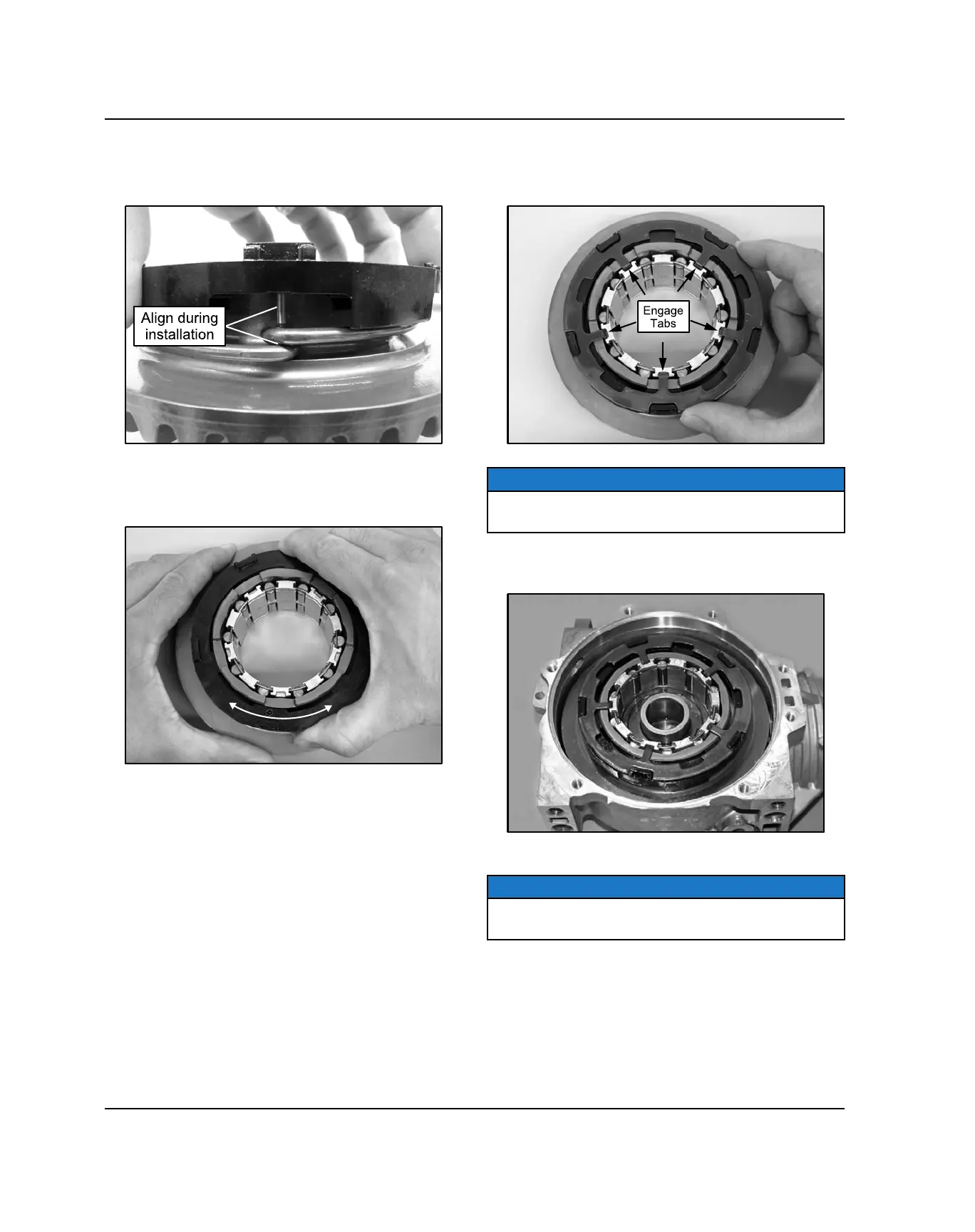

7. Align the spring retainer dowel pin with the ring gear
dowel pin and install the retainer on top of the torsion
spring.
8. Check the action of the torsion spring by rotating in
both directions to ensure the spring and retainer are
installed properly.
9. Be sure the armature plate tabs are fully engaged
into the roll cage assembly and are resting on the
cut-grooves of the ring gear.
NOTE
Verify armature plate tabs are in the slots on the roll
cage and are resting in the ring gear grooves.
10. Carefully install the ring gear and roll cage assembly
into the gearcase housing.
11. Install a new O-ring on the cover plate assembly.
NOTE
Be sure the square O-ring is placed flat on the cover
surface. If the O-ring is twisted fluid leakage may occur.
FINAL DRIVE
