INSTALLATION

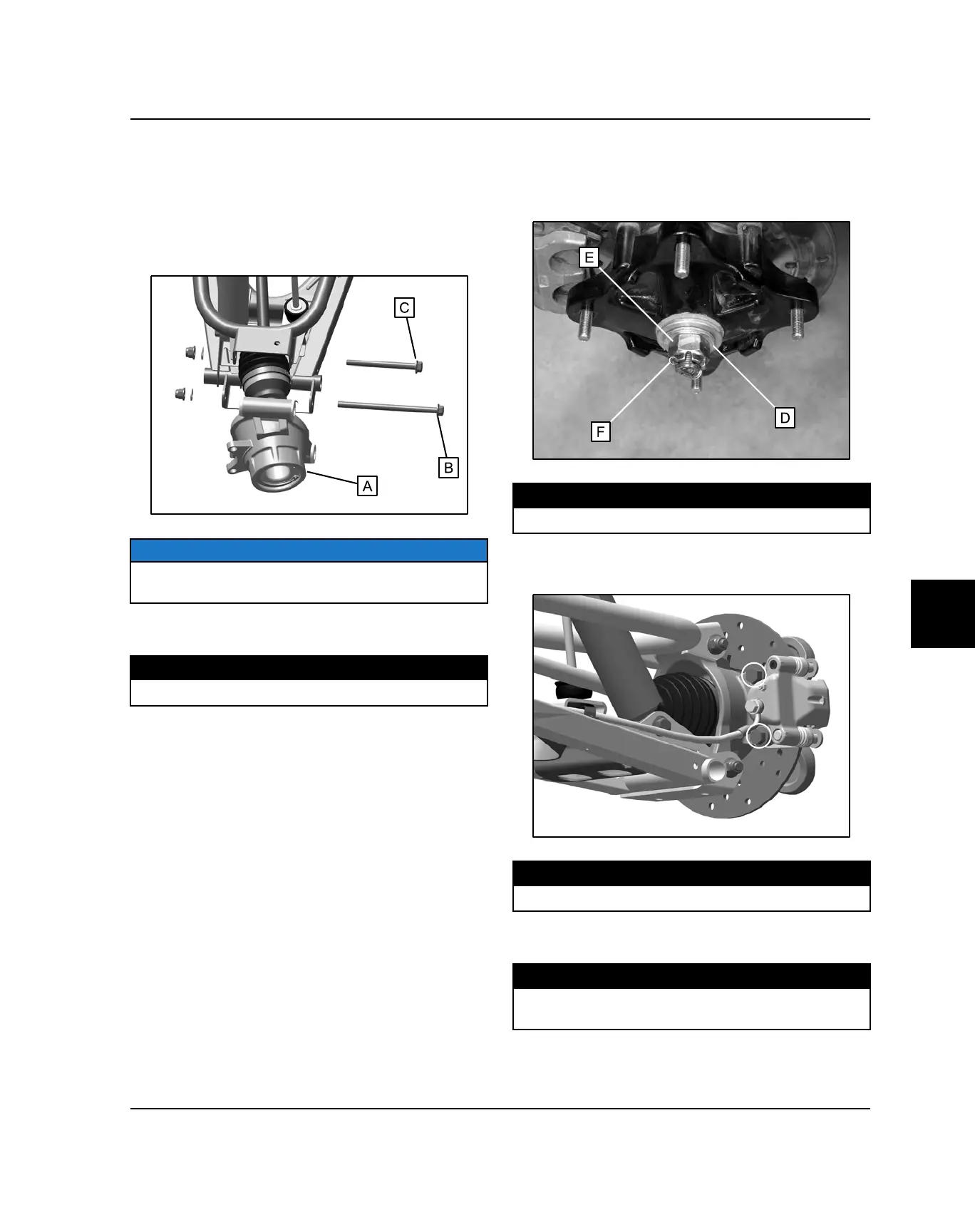

1. Place the bearing carrier (A) over the drive shaft.
2. Align the bottom of the bearing carrier with the lower
A-arm. Install the lower bearing carrier fastener (B).
3. Align the top of the bearing carrier with the upper A-
arm. Install the upper bearing carrier fastener (C).
NOTE
The lower shock bolt may need to be removed to allow
the upper A-arm to move freely.
4. Torque the upper and lower bearing carrier fasteners
to specification.
TORQUE
Bearing Carrier Fasteners:40 ft-lbs (54 Nm)
5. Install the wheel hub assembly onto the drive shaft.
6. Install the washers (D) with domed side out and the
wheel hub castle nut (E). Torque the wheel hub
castle nut to specification and install a NEW cotter
pin (F).
TORQUE
Rear Wheel Hub Castle Nut:110 ft-lbs (149 Nm)
7. Install the rear brake caliper and torque the mounting
bolts to specification.
TORQUE
Rear Caliper Mounting Bolts:48 ft-lbs (65 Nm)
8. Install the wheel, washers and wheel nuts. Torque
wheel nuts to specification.
TORQUE
Wheel Nuts:Steel Wheels: 60 ft-lbs (81 Nm)
Aluminum Wheels: 120 ft-lbs (163 Nm)
