9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
8.19

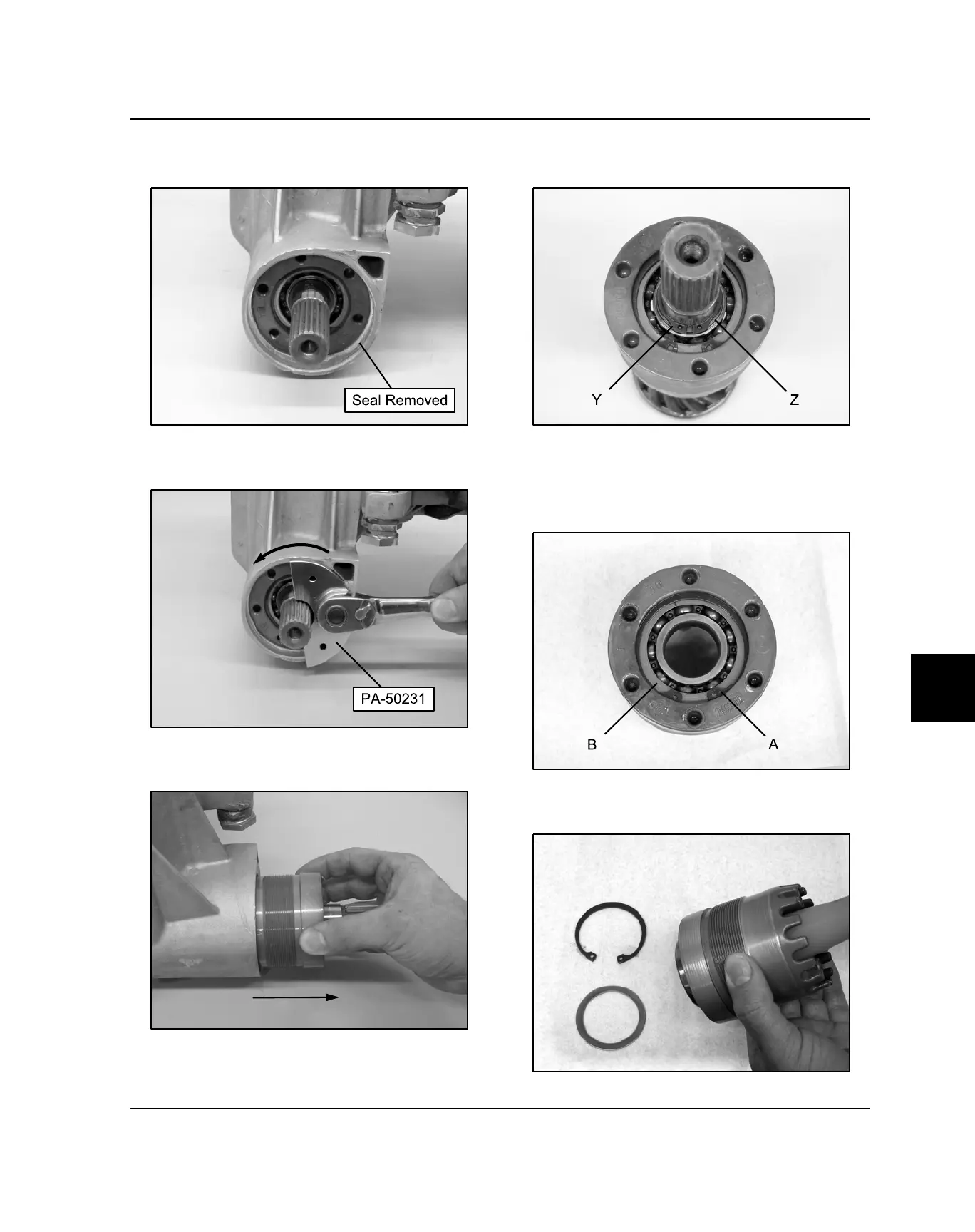

27. Extract the seal from the snorkel shaft to access the
snorkel tube for removal.
28. Using the Snorkel Tool (PA-50231), fully loosen the
snorkel tube.
29. Remove the snorkel tube and shaft assembly from
the transmission case.
30. Remove the snap ring (Y) and shim (Z) from the
snorkel shaft.
31. Use an arbor press to remove the snorkel tube from
the snorkel shaft.
32. Remove the snap ring (A) and shim (B) retaining the
bearing in the snorkel tube.
33. Lightly tap on the bearing from the opposite side to
remove it from the snorkel tube.
TRANSMISSION
