9924880 Rev 2- 1/10/2014 - 2013 / 2014 RANGER XP 900 - 2014 RANGER XP 900 / CREW 900 Service Manual
© Copyright Polaris Sales Inc.
2.19

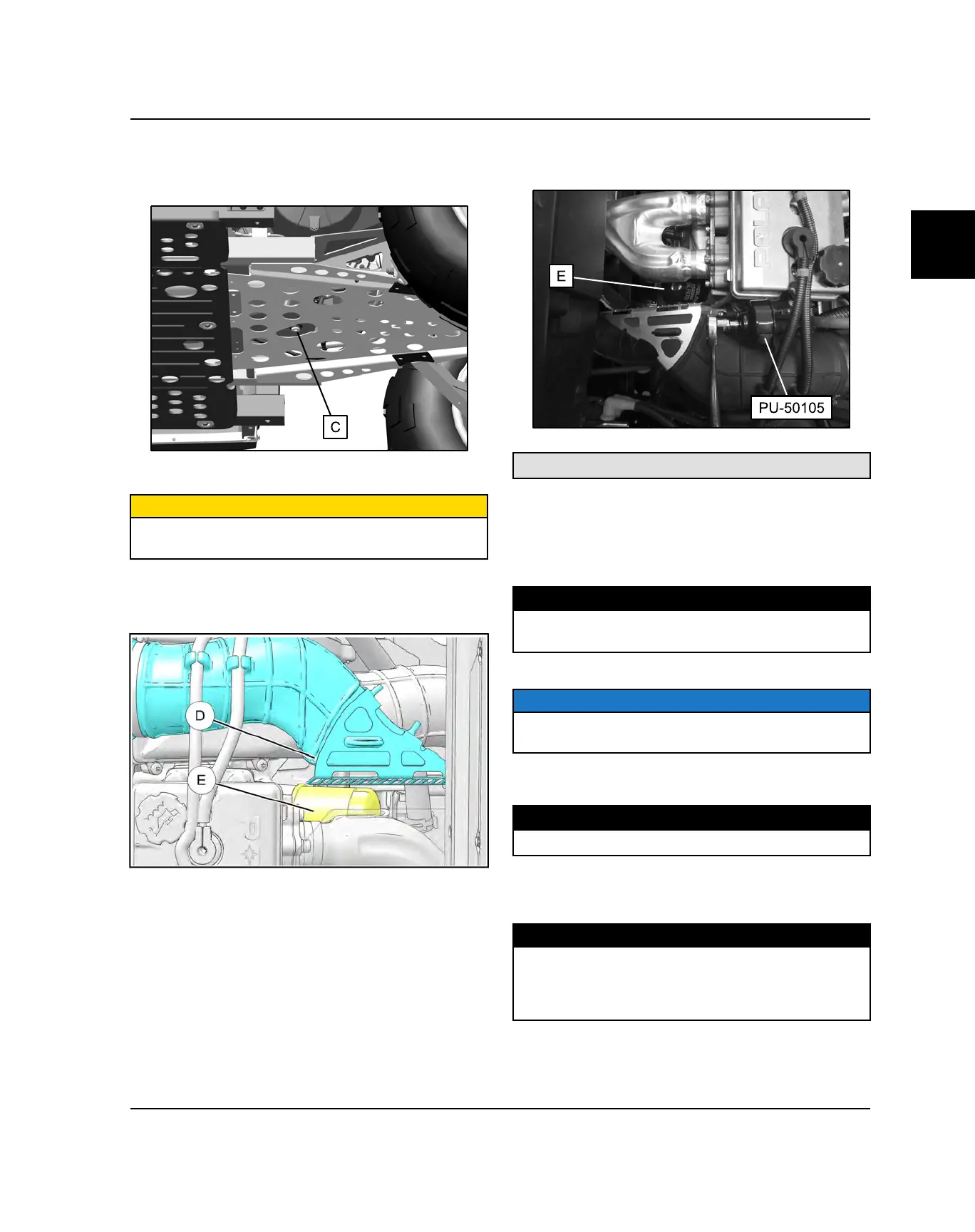

4. Place a drain pan under the engine crankcase and
remove the drain plug (C). Allow the oil to drain
completely.
5. Remove all cargo from the cargo box.
CAUTION
Always remove all cargo from the cargo box before
lifting the box to access the engine.
6. Pull up on the cargo box release lever to tilt the box.
7. Gently press the clutch outlet duct (D) out of the way
to gain access to the oil filter (E).
8. Using the Oil Filter Wrench (PU-50105), turn the oil
filter (E) counter-clockwise to remove it.
Oil Filter Wrench:PU-50105: 2.5” (64 mm)
9. Using a clean dry cloth, clean the filter sealing
surface on the engine crankcase.
10. Lubricate the O-ring on the new oil filter with a film of
fresh engine oil. Check to make sure the O-ring is in
good condition. Install it to specification.
TORQUE
Oil Filter:Turn by hand until filter O-ring contacts
sealing surface, then turn an additional 1/2 turn.
11. Replace the sealing washer on drain plug.
NOTE
The sealing surface on the drain plug should be clean
and free of burrs, nicks or scratches.
12. Reinstall the engine crankcase drain plug. Torque
drain plug to specification.
TORQUE
Crankcase Drain Plug:12 ft-lbs (16 Nm)
13. Remove oil fill cap (see “Engine Oil Level”). Fill
engine with 2.5 quarts (2.4 L) of recommended
engine oil.
FLUID CAPACITY
Recommended Engine Oil:PS-4 Synthetic (PN
2876244)Ambient Temp Range: -35° F to 100° FPS-4
Extreme Duty Synthetic (PN 2878920)Ambient Temp
Range: 0° F to 120° FCapacity: 2.5 Quarts (2.4 L)
14. Verify the transmission is still in PARK.
15. Start the engine and allow it to idle for 30 seconds.
MAINTENANCE
