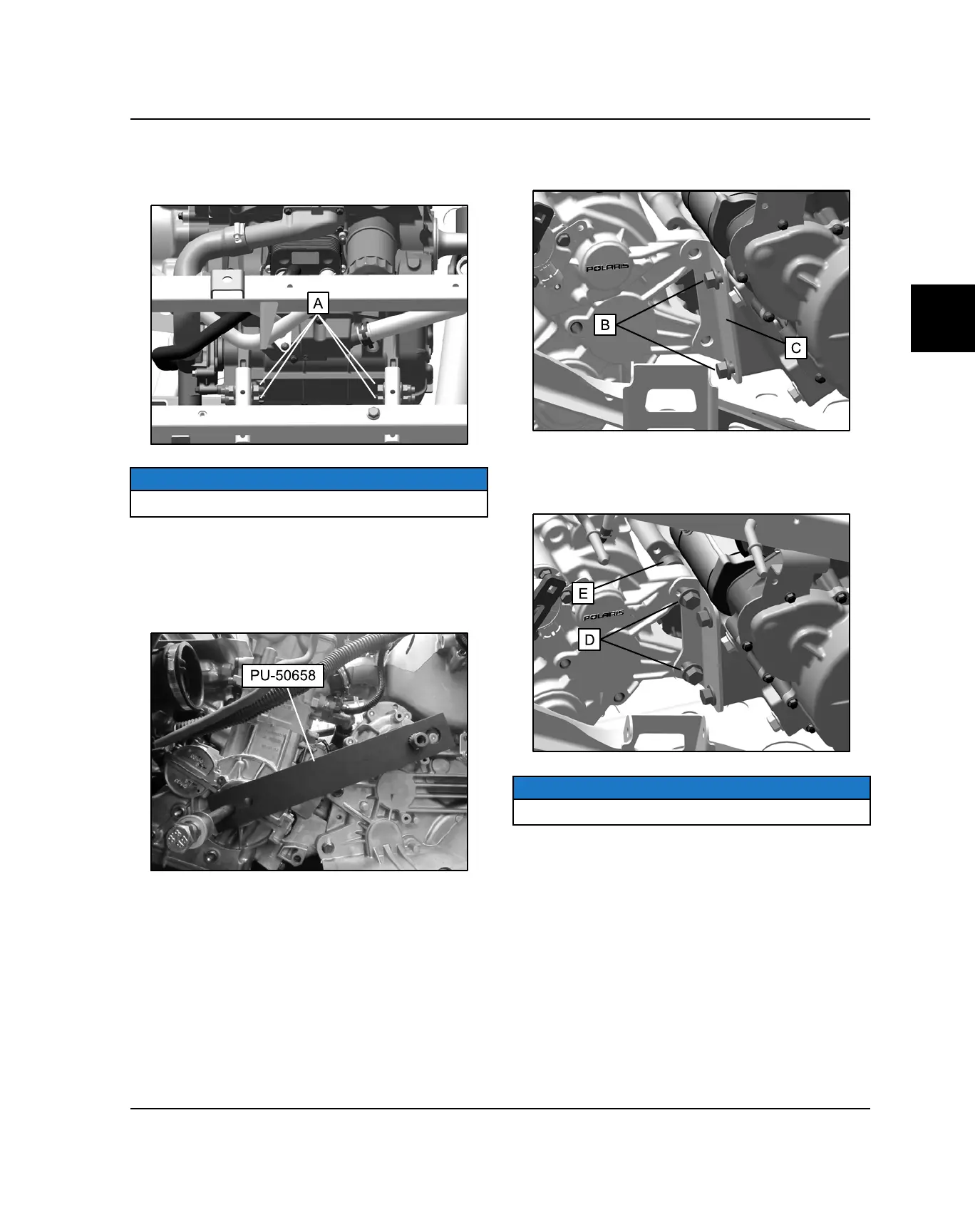

5. Align both the front and rear engine mounting
locations. Install the (4) front engine mounting
fasteners (A) and hand tighten.
NOTE
DO NOT torque fasteners at this time.
6. Align transmission joint bracket mounting holes with
the front transmission mounting holes.
7. Install the Clutch Center Distance Tool (PU-50658)
onto the crankshaft and transmission input shaft to
properly position the clutch center distance.
8. Loosen the (2) bolts (B) retaining the transmission
coupler bracket (C) to the engine on the right side.
9. Install the (2) bolts (D) and transmission joint retainer
plate (E) on the right side. Hand tighten the bolts so
they remain loose at this time.
NOTE
DO NOT torque fasteners at this time.
ENGINE
