Polaroid ModelSmart 250S User Manual

13
When printing on a 3D printer, the rst layer of the print is all-important. It must adhere to the
print bed to ensure that the subsequent layers sit directly on top of each other and aren’t out of
alignment. Any small movement or imperfection could cause your print to not re-produce correctly.

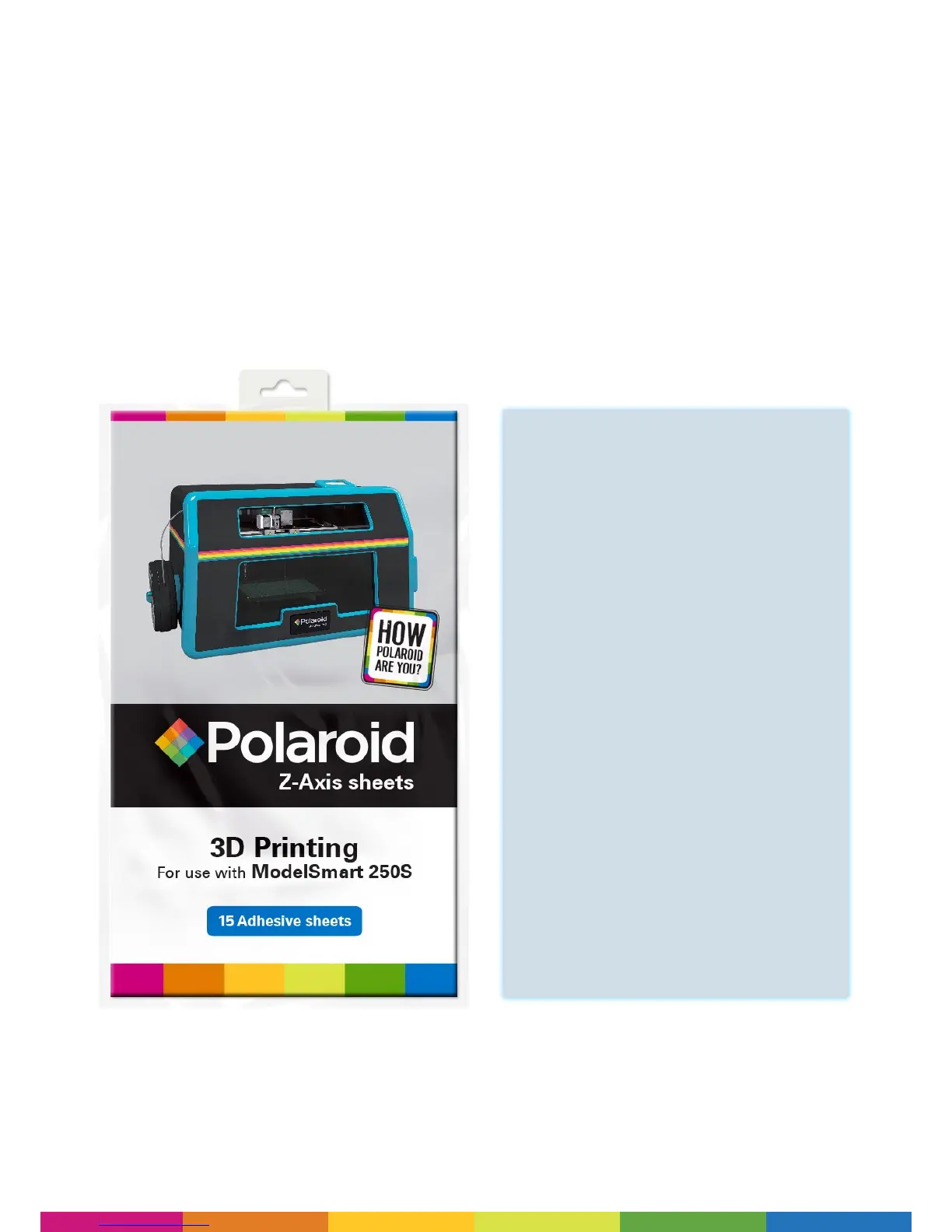

To ensure this adhesion is secure, the Polaroid 3D printers use a revolutionary product called the
Z-Axis sheets. These are transparent adhesive sheets that are easy to apply to the print bed before
each print. Your model then prints on top and when nished you simply remove the glass bed from
the printer and peel off the Z-Axis sheet. The model then peels from the sheet.
Z-AXIS SHEETS
Applying the Z-Axis sheet
for PLA and Wood
1. Before applying the Z-Axis
sheet, ensure the glass bed is
clean.
2. Remove the backing sheet
(clearly labelled this side down)
and apply the revealed adhesive
side to the print bed.
3. Take it slow from one edge
to the other and take care to
minimise air bubbles.
4. Once fully applied remove the
top sheet, leaving the adhesive
layer exposed.
5.You are now ready to print.
6. For best results print within
15 minutes of removing the rst
backing sheet.

Polaroid ModelSmart 250S Specifications

General

Print technology	-
Printing material	Polylactic acid (PLA), Wood fiber
Maximum travel speed	100 mm/sec
Layer thickness (max)	350 mm
Layer thickness (min)	50 mm
Maximum build size (WxDxH)	250 x 150 x 150 mm
Filament thickness supported	1.75 mm
Control type	Wireless
Viewing window	Yes
Print resolution	- DPI
3D scanner	No
Compatible memory cards	SD
AC adapter output voltage	24 V
Cables included	AC, USB

Weight and Dimensions

Depth	150 mm
Width	250 mm
