POLMAR DB-5 - Antenna Installation

50
Fig. 4Fig. 3
Installazione antenna
Thesupplied high gainantenna pro-
vides high performance at the entire
VHF / UHF frequency range of the
transceiver.

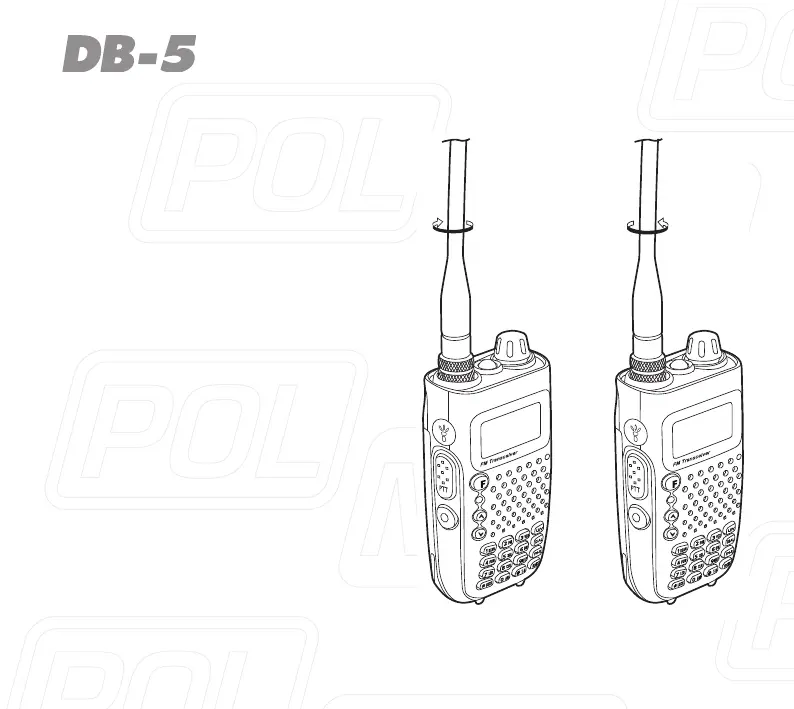

To installthe suppliedantenna, hold
the bottom end of the antenna, then
screw it onto the connector on the
transceiver until it is snug, pic. 3.
Do not over-tighten by use of ex-
treme force.
To uninstall the antenna, hold the
bottom end of it and turn it counter
clockwisetoremoveit,pic.4.
Notes
• Never transmit without having an
antenna connected.
• When installing the supplied an-
tenna, never hold the upper part
of the antenna while screwing it
onto the connector on the trans-
ceiver. Or you may snap the an-
tenna.
