ZONEMASTER ZONETOUCH V2 ZONE CONTROL SYSTEM - Installation Manual
4
4)Conguration
The Zonemaster ZONETOUCH V2 system is a star architecture system that allows
 communicationsbetweentheZONETOUCHV2maincontrolmodule,extensionmodule,
 upto16zonedampers,anduptotwotouchscreens.Figure1showstheconnection
 ofdevicessuchasZONETOUCHV2extensionmodule,twotouchscreens,andeight
 damperstothemainmodule.Figure2showstheconnectionofeightdamperstothe
 extensionmodule.Figure3showsthelinkingofthemainmoduletotheextension
module and touch screens.
Eightmotorizeddamperscanbeconnectedtothemaincontrolmodule.
Ninedampersandabove(upto16)willneedtheextensionmodule.
Inaddition,thereisadedicatedbypassportwhereadamperisusedtoreturnthe
supplyairdirectlytothereturnairduct.(SeeSpill/BypassModeonpage13)
Extension Module
Anextensionmodulecanbepluggedintothemaincontrolmoduletoexpandthe
numberofzonesto16asshowninFigure2.Aseparate24VACpowersupplyis
requiredtosupplypowertotheeightextrazones.

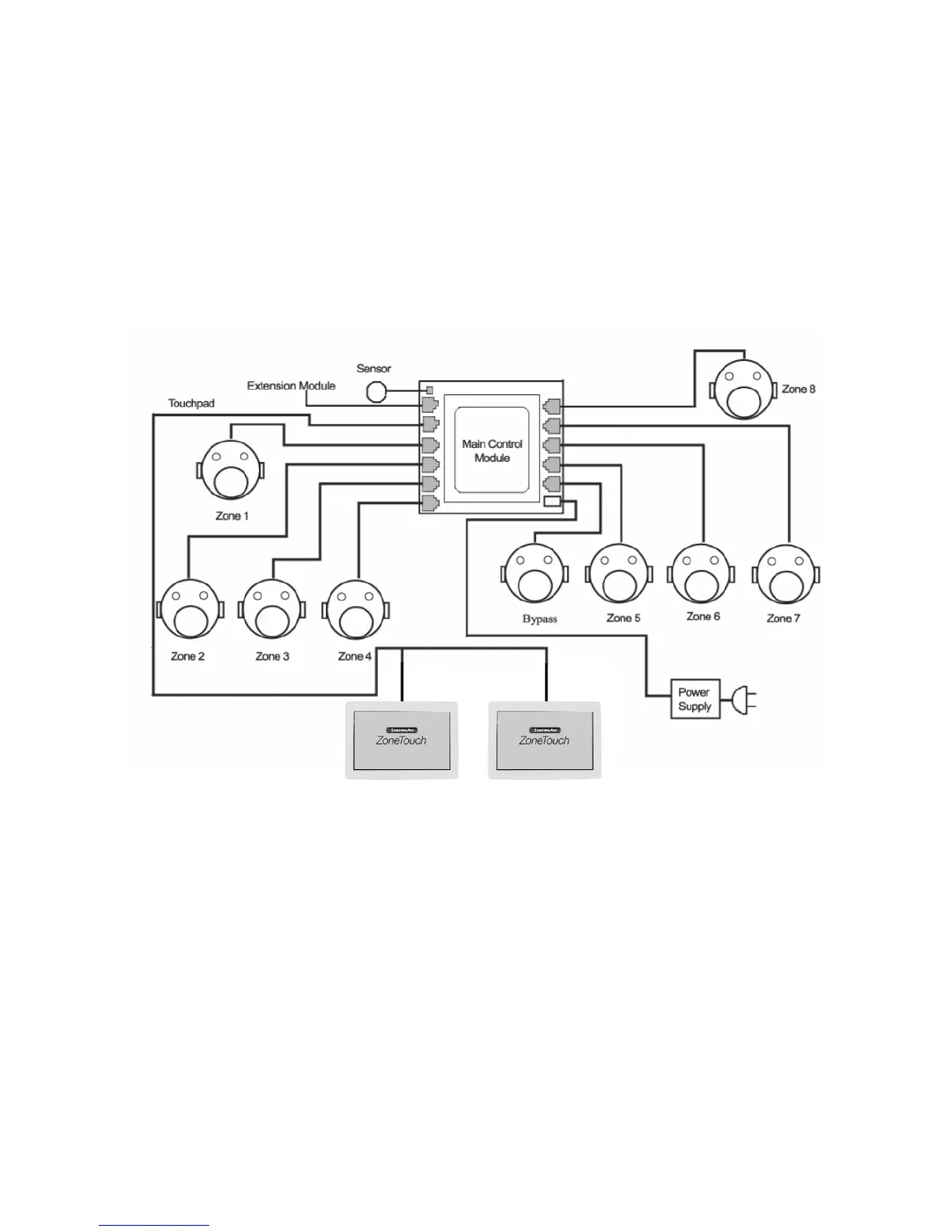

Figure 1: ZoneTouch Main Module connected to 2 Touchpads and 8 Dampers
