Chapter 2 -
2-2
Web User Interface (UI)
Logging into RSS 2000 via the Web
Enter the RSS 2000's IP address in the address field and press enter. The user
will see the RSS 2000's login page, as shown in
Figure 2-1.
After correctly entering a user name and password in the login screen, press
enter to log in. The default user name is "Administrator" and the default
password is "polycom". These defaults are pre-set for use in first-time log in.
A single click on a blank part of the screen will clear the entered user name
and password, allowing new values to be entered.

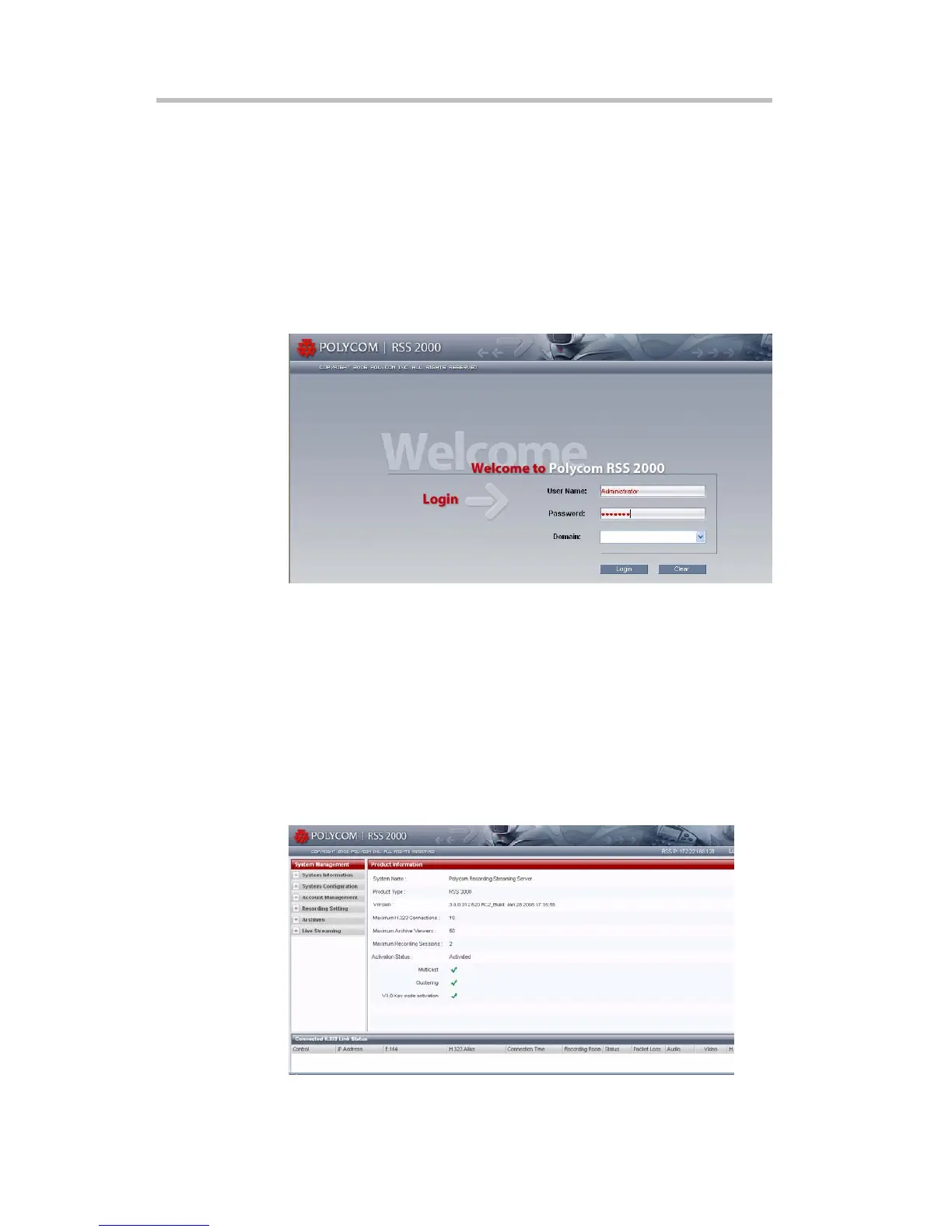

Figure 2-1 RSS 2000 login screen
If the RSS 2000 you are logging into is integrated with an LDAP Active
Directory server, users can also enter an Active Directory domain user name
and password in the login screen. In this case, the "Domain" menu in
Figure
2-1
will be enabled. Enter a correct user name and password, and select the
appropriate domain name from the "Domain" pull-down menu; click the
"Login" button or press enter to log in. Please refer to the
Active directory
settings
section for detailed information concerning Active Directory servers.
RSS 2000 Web UI Main screen
Figure 2-2 RSS 2000 Web UI Main screen
