Installing SoundStructure Devices
8 - 5
Uploading A Configuration File
Configuration files are uploaded to a SoundStructure device or downloaded
from a SoundStructure device by using the SoundStructure Studio software.

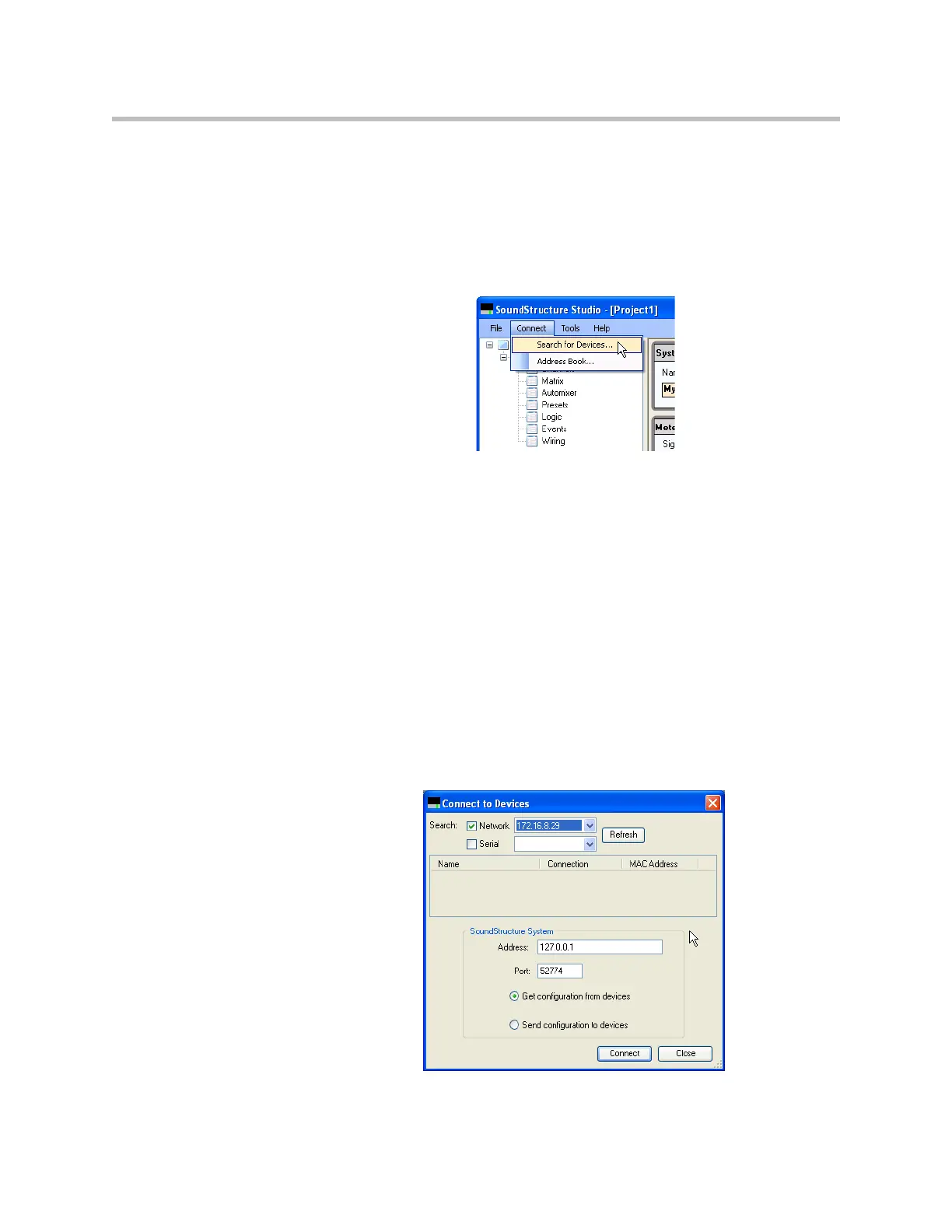

To upload a configuration file to the SoundStructure devices, first open the
SoundStructure Studio design file and then select the Connect menu and
select Connect to Devices as shown in the following figure.
This selection will make the Connect to Devices window appear as shown in
the next figure. There are two ways to connect to the SoundStructure device:
through the RS-232 and through the network interface. Select the check box
next to the interface to use for the upload or download.
When the check box next to the Network interface is selected, SoundStructure
Studio will query which devices are on the network. All devices on the same
subnet as the Ethernet interface are displayed by default.
The SoundStructure system names that are found are shown with their System
Name (see Chapter 10 for information on how to set the system name), IP
address or serial port, and MAC address. The MAC address may be found by
looking inside the front panel door on the SoundStructure device.
Select the device to upload the file to and select “Send configuration to
devices” and then Connect. The “Send configuration to devices” option is
only enabled if there is a valid configuration file open in SoundStructure Stu-
dio.
