Advanced Applications
13 - 23
The matrix may be collapsed by clicking the up arrows next to the “Mics”
group. Because all the microphones are used in the same way, the group
crosspoint represents how all the table microphone channels are being used.

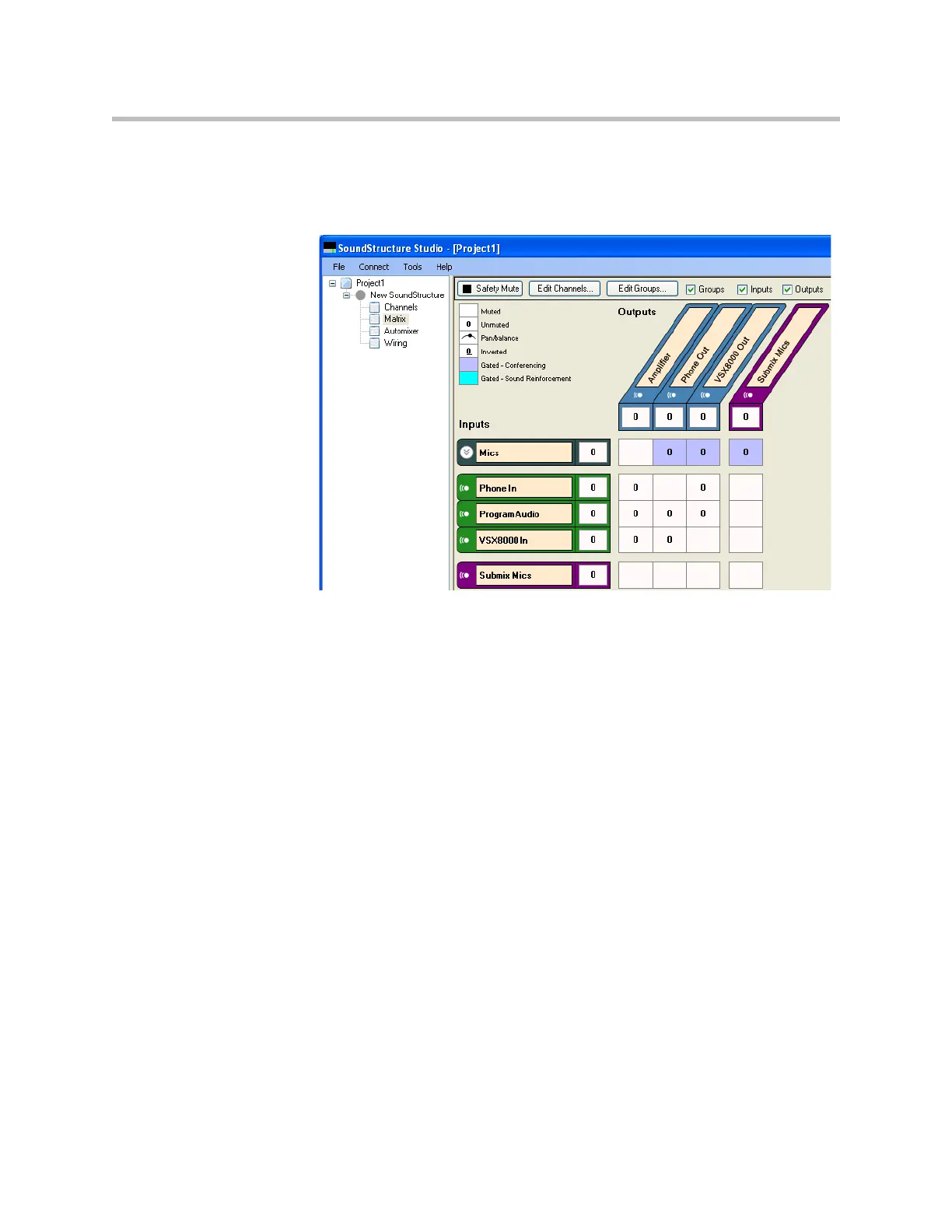

The result is a compact matrix representation as shown in the following figure.
Channels Settings
The channels page associated with this matrix is shown in the following figure.
If the channels are collapsed in the matrix, they are also collapsed in the chan-
nels page. The AEC block has been expanded to show the AEC reference.
