Matrix Settings

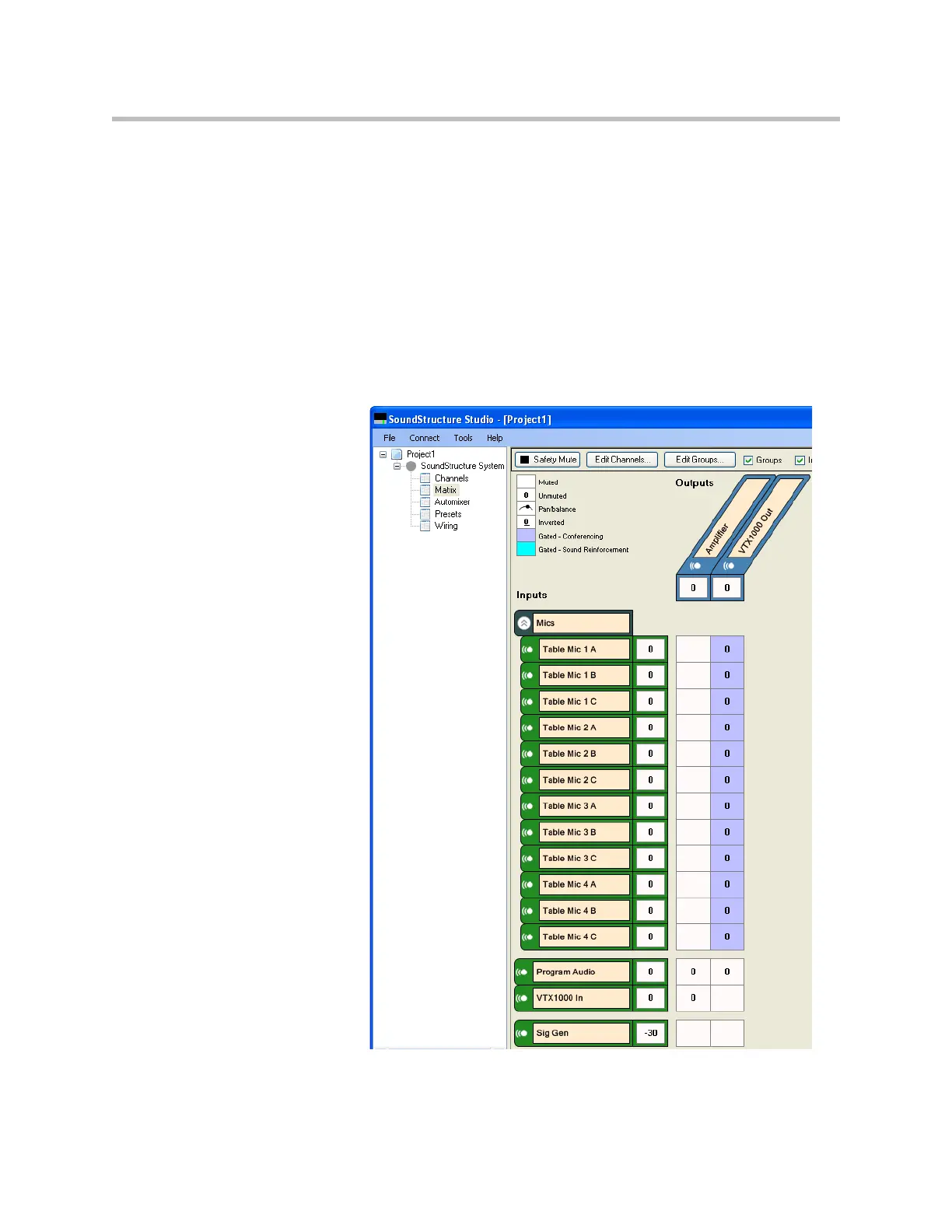

Once the system has been designed, click the Matrix label in the project
window to view the matrix shown in the following figure.
The input virtual channels that include remote audio are the “VTX1000 In”
and “Program Audio”. These channels are routed to the “Amplifier” channel
so they can be heard in the local room.
The microphones “Table Mic 1 A” through “Table Mic 4 C” are routed to the
“VTX1000 Out” channel using the conferencing signal path which includes
echo and noise cancellation, and automixer processing. The blue background
of these crosspoints is the visual indicator that the conferencing version of the
input processing has been selected.
