Battery Monitor Operation
The Battery Monitor located on the Face Plate is used to display the State of Charge remaining, as well as the VOLTstack
Power State. The Power State is based on the Net Power of the VOLTstack.

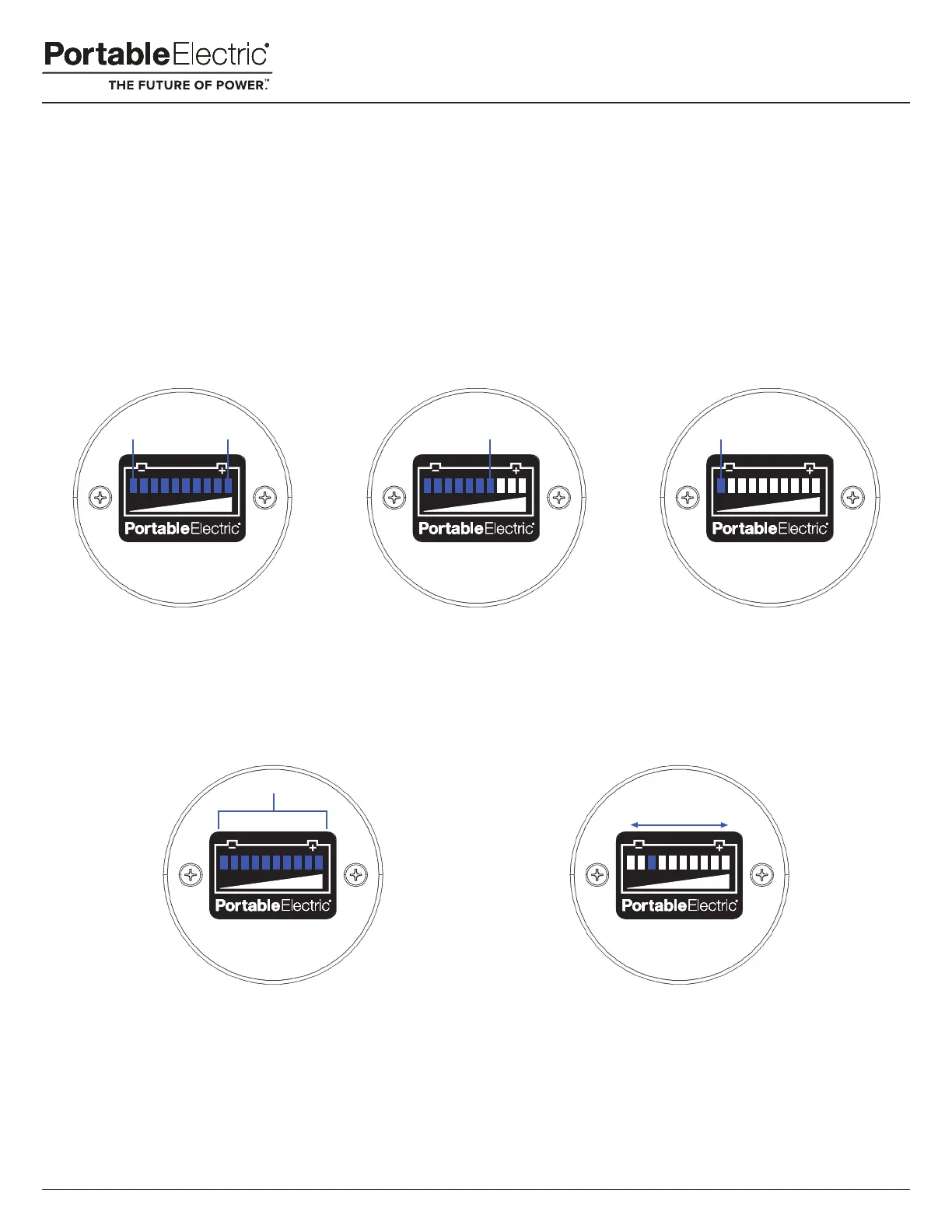

Type 1 Battery Monitor
The Type 1 Battery Monitor has ten blue LEDs. Full illumination of the ten LED’s indicates 100% State of Charge.
Discharging Charging State of Charge
Discharging
The Battery Monitor will show the State
of Charge when discharging.
Charging
The right most blue LED will blink.
State of Charge Low
The last remaining LED will blink indicating
the State of Charge is approaching zero.
Blink Low
Fault Warning
All of the LEDs will blink. This can indicate an
overload fault warning, or over temperature
fault warning.
Connection Error
A single blue LED will move continually from
left to right and back again. This indicates a
connection error in the Battery Monitor.
Fault
Connection
Standby Operation
In Standby mode, all DC power systems are available as well as the unit’s State of Charge. USB charging output, solar
charging, as well as AC charging can be accomplished in Standby Mode. Use this mode between operations where lower
power consumption is desirable.
0% SOC 100% SOC
Blink
Version 1.0 September 2019
19
