Power Measurement 3300 ACM User Manual

3300 ACM Installation and Operation Manual Power Measurement Ltd.
2-8 Installation

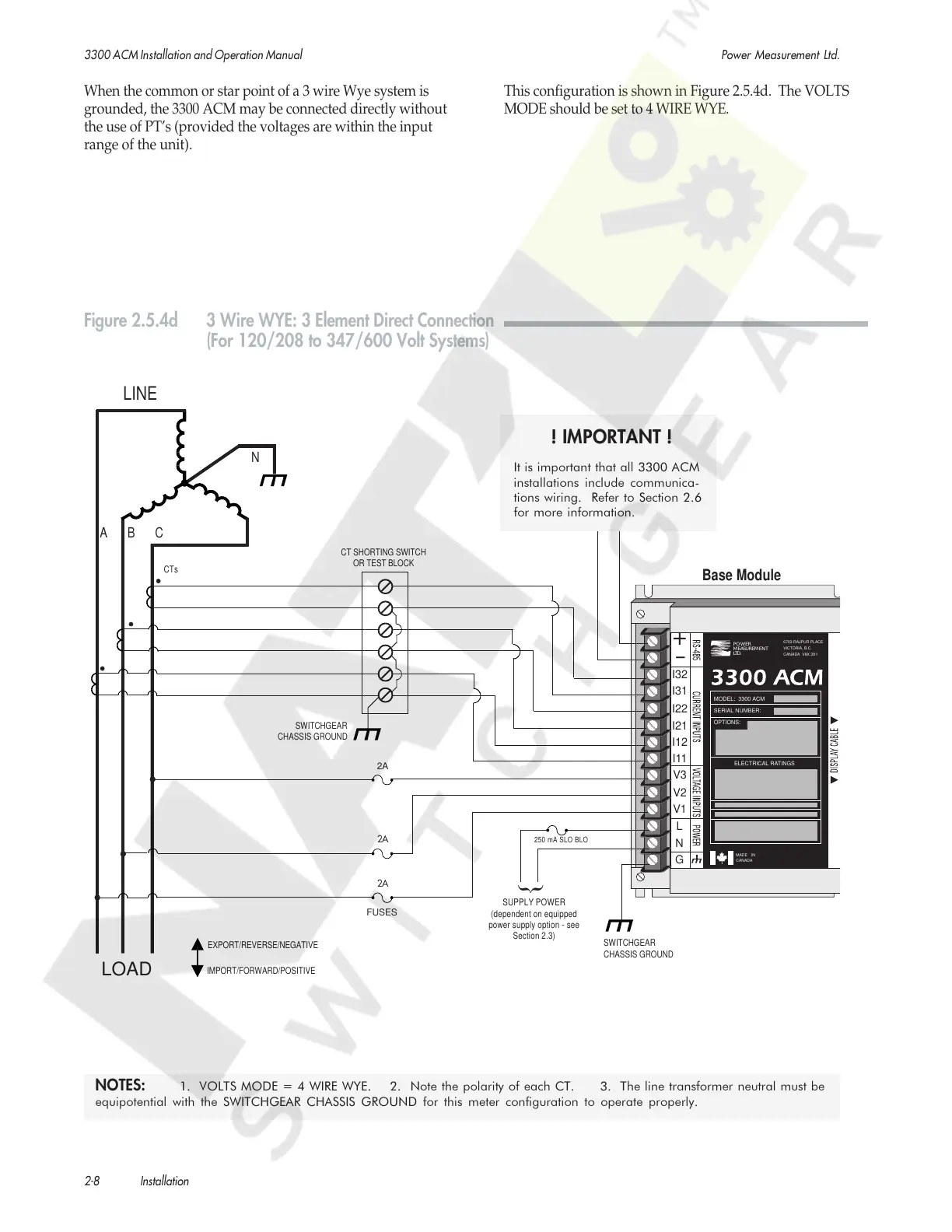

Figure 2.5.4d 3 Wire WYE: 3 Element Direct Connection
(For 120/208 to 347/600 Volt Systems)
MODEL: 3300 ACM
SERIAL NUMBER:
OPTIONS:
ELECTRICAL RATINGS
POWER
MEASUREMENT
LTD.
6703 RAJPUR PLACE
VICTORIA, B.C.
CANADA V8X 3X1
MADE IN
CANADA
+
-
I32
I31
I22
I21
I12
I11
V3
V2
V1
L
N
G
When the common or star point of a 3 wire Wye system is
grounded, the 3300 ACM may be connected directly without
the use of PT’s (provided the voltages are within the input
range of the unit).
NOTES: 1. VOLTS MODE = 4 WIRE WYE. 2. Note the polarity of each CT. 3. The line transformer neutral must be
equipotential with the SWITCHGEAR CHASSIS GROUND for this meter configuration to operate properly.
N
ABC
CT SHORTING SWITCH
OR TEST BLOCK
2A
2A
2A
SWITCHGEAR
CHASSIS GROUND
LOAD
EXPORT/REVERSE/NEGATIVE
LINE
Base Module
SWITCHGEAR
CHASSIS GROUND
SUPPLY POWER
(dependent on equipped
power supply option - see
Section 2.3)
{
250 mA SLO BLO
CTs
FUSES
IMPORT/FORWARD/POSITIVE
! IMPORTANT !
It is important that all 3300 ACM
installations include communica-
tions wiring. Refer to Section 2.6
for more information.
This configuration is shown in Figure 2.5.4d. The VOLTS
MODE should be set to 4 WIRE WYE.
