3300 ACM Installation and Operation Manual Power Measurement Ltd.
4-2 Measured Parameters

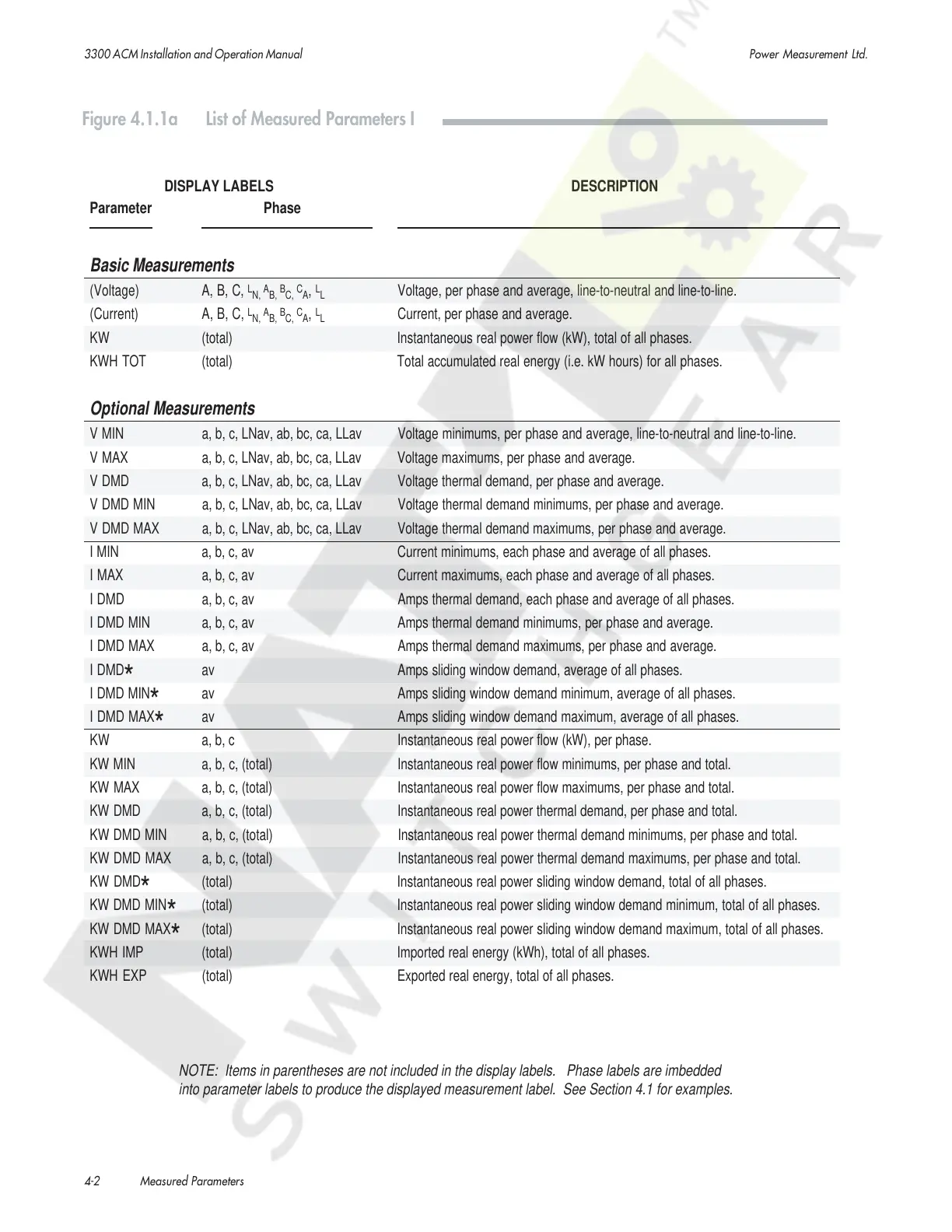

Figure 4.1.1a List of Measured Parameters I
DISPLAY LABELS DESCRIPTION
Parameter Phase
NOTE: Items in parentheses are not included in the display labels. Phase labels are imbedded
into parameter labels to produce the displayed measurement label. See Section 4.1 for examples.
Basic Measurements
(Voltage) A, B, C,
L
N,
A
B,
B
C,
C
A
,
L
L
Voltage, per phase and average, line-to-neutral and line-to-line.
(Current) A, B, C,
L
N,
A
B,
B
C,
C
A
,
L
L
Current, per phase and average.
KW (total) Instantaneous real power flow (kW), total of all phases.
KWH TOT (total) Total accumulated real energy (i.e. kW hours) for all phases.
Optional Measurements
V MIN a, b, c, LNav, ab, bc, ca, LLav Voltage minimums, per phase and average, line-to-neutral and line-to-line.
V MAX a, b, c, LNav, ab, bc, ca, LLav Voltage maximums, per phase and average.
V DMD a, b, c, LNav, ab, bc, ca, LLav Voltage thermal demand, per phase and average.
V DMD MIN a, b, c, LNav, ab, bc, ca, LLav Voltage thermal demand minimums, per phase and average.
V DMD MAX a, b, c, LNav, ab, bc, ca, LLav Voltage thermal demand maximums, per phase and average.
I MIN a, b, c, av Current minimums, each phase and average of all phases.
I MAX a, b, c, av Current maximums, each phase and average of all phases.
I DMD a, b, c, av Amps thermal demand, each phase and average of all phases.
I DMD MIN a, b, c, av Amps thermal demand minimums, per phase and average.
I DMD MAX a, b, c, av Amps thermal demand maximums, per phase and average.
I DMD
*
av Amps sliding window demand, average of all phases.
I DMD MIN
*
av Amps sliding window demand minimum, average of all phases.
I DMD MAX
*
av Amps sliding window demand maximum, average of all phases.
KW a, b, c Instantaneous real power flow (kW), per phase.
KW MIN a, b, c, (total) Instantaneous real power flow minimums, per phase and total.
KW MAX a, b, c, (total) Instantaneous real power flow maximums, per phase and total.
KW DMD a, b, c, (total) Instantaneous real power thermal demand, per phase and total.
KW DMD MIN a, b, c, (total) Instantaneous real power thermal demand minimums, per phase and total.
KW DMD MAX a, b, c, (total) Instantaneous real power thermal demand maximums, per phase and total.
KW DMD
*
(total) Instantaneous real power sliding window demand, total of all phases.
KW DMD MIN
*
(total) Instantaneous real power sliding window demand minimum, total of all phases.
KW DMD MAX
*
(total) Instantaneous real power sliding window demand maximum, total of all phases.
KWH IMP (total) Imported real energy (kWh), total of all phases.
KWH EXP (total) Exported real energy, total of all phases.
