3300 ACM Installation and Operation Manual Power Measurement Ltd.
Measured Parameters 4-3

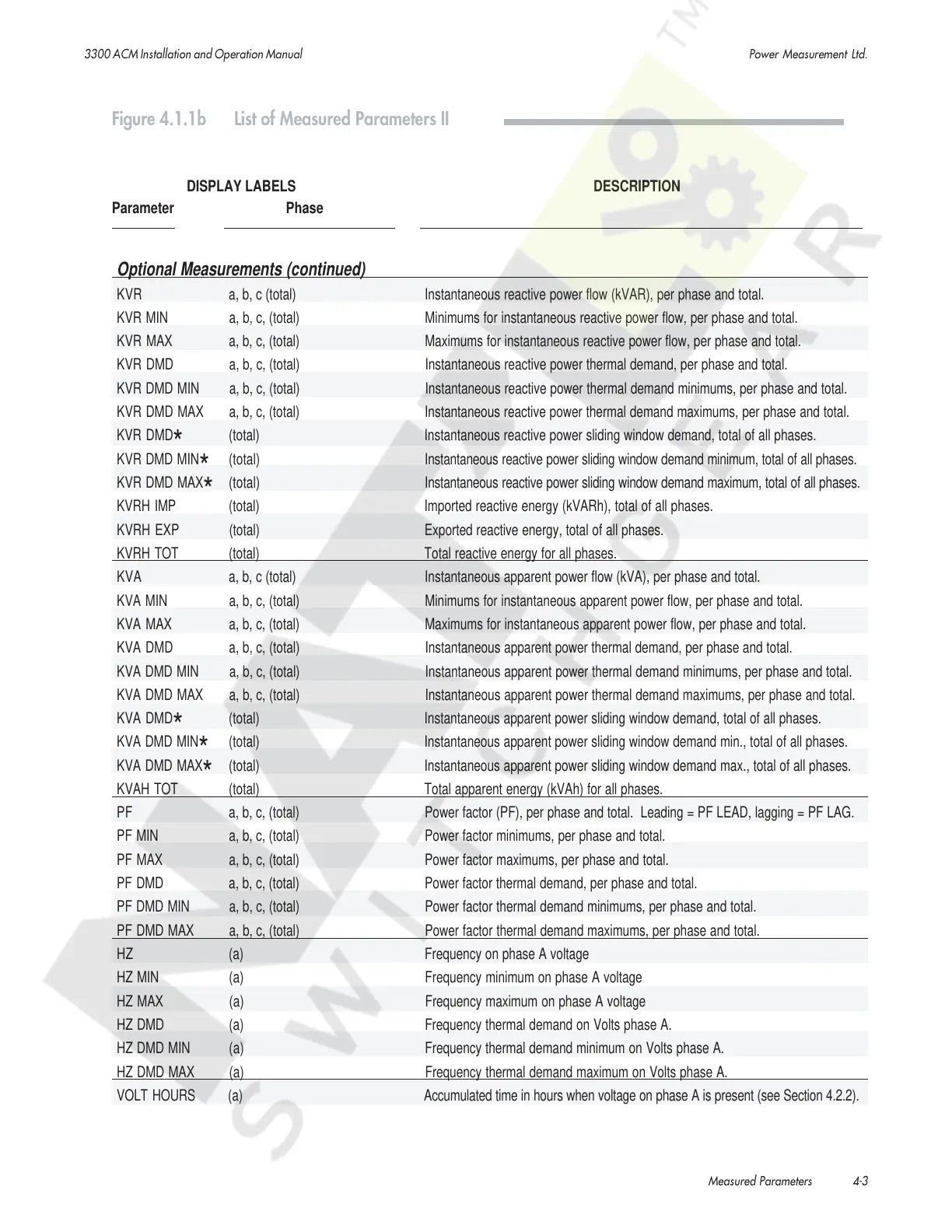

Figure 4.1.1b List of Measured Parameters II
DISPLAY LABELS DESCRIPTION
Parameter Phase
Optional Measurements (continued)
KVR a, b, c (total) Instantaneous reactive power flow (kVAR), per phase and total.
KVR MIN a, b, c, (total) Minimums for instantaneous reactive power flow, per phase and total.
KVR MAX a, b, c, (total) Maximums for instantaneous reactive power flow, per phase and total.
KVR DMD a, b, c, (total) Instantaneous reactive power thermal demand, per phase and total.
KVR DMD MIN a, b, c, (total) Instantaneous reactive power thermal demand minimums, per phase and total.
KVR DMD MAX a, b, c, (total) Instantaneous reactive power thermal demand maximums, per phase and total.
KVR DMD
*
(total) Instantaneous reactive power sliding window demand, total of all phases.
KVR DMD MIN
*
(total) Instantaneous reactive power sliding window demand minimum, total of all phases.
KVR DMD MAX
*
(total) Instantaneous reactive power sliding window demand maximum, total of all phases.
KVRH IMP (total) Imported reactive energy (kVARh), total of all phases.
KVRH EXP (total) Exported reactive energy, total of all phases.
KVRH TOT (total) Total reactive energy for all phases.
KVA a, b, c (total) Instantaneous apparent power flow (kVA), per phase and total.
KVA MIN a, b, c, (total) Minimums for instantaneous apparent power flow, per phase and total.
KVA MAX a, b, c, (total) Maximums for instantaneous apparent power flow, per phase and total.
KVA DMD a, b, c, (total) Instantaneous apparent power thermal demand, per phase and total.
KVA DMD MIN a, b, c, (total) Instantaneous apparent power thermal demand minimums, per phase and total.
KVA DMD MAX a, b, c, (total) Instantaneous apparent power thermal demand maximums, per phase and total.
KVA DMD
*
(total) Instantaneous apparent power sliding window demand, total of all phases.
KVA DMD MIN
*
(total) Instantaneous apparent power sliding window demand min., total of all phases.
KVA DMD MAX
*
(total) Instantaneous apparent power sliding window demand max., total of all phases.
KVAH TOT (total) Total apparent energy (kVAh) for all phases.
PF a, b, c, (total) Power factor (PF), per phase and total. Leading = PF LEAD, lagging = PF LAG.
PF MIN a, b, c, (total) Power factor minimums, per phase and total.
PF MAX a, b, c, (total) Power factor maximums, per phase and total.
PF DMD a, b, c, (total) Power factor thermal demand, per phase and total.
PF DMD MIN a, b, c, (total) Power factor thermal demand minimums, per phase and total.
PF DMD MAX a, b, c, (total) Power factor thermal demand maximums, per phase and total.
HZ (a) Frequency on phase A voltage
HZ MIN (a) Frequency minimum on phase A voltage
HZ MAX (a) Frequency maximum on phase A voltage
HZ DMD (a) Frequency thermal demand on Volts phase A.
HZ DMD MIN (a) Frequency thermal demand minimum on Volts phase A.
HZ DMD MAX (a) Frequency thermal demand maximum on Volts phase A.
VOLT HOURS (a) Accumulated time in hours when voltage on phase A is present (see Section 4.2.2).
