3300 ACM Installation and Operation Manual Power Measurement Ltd.
Appendix G: Serial Communications Protocol G-9

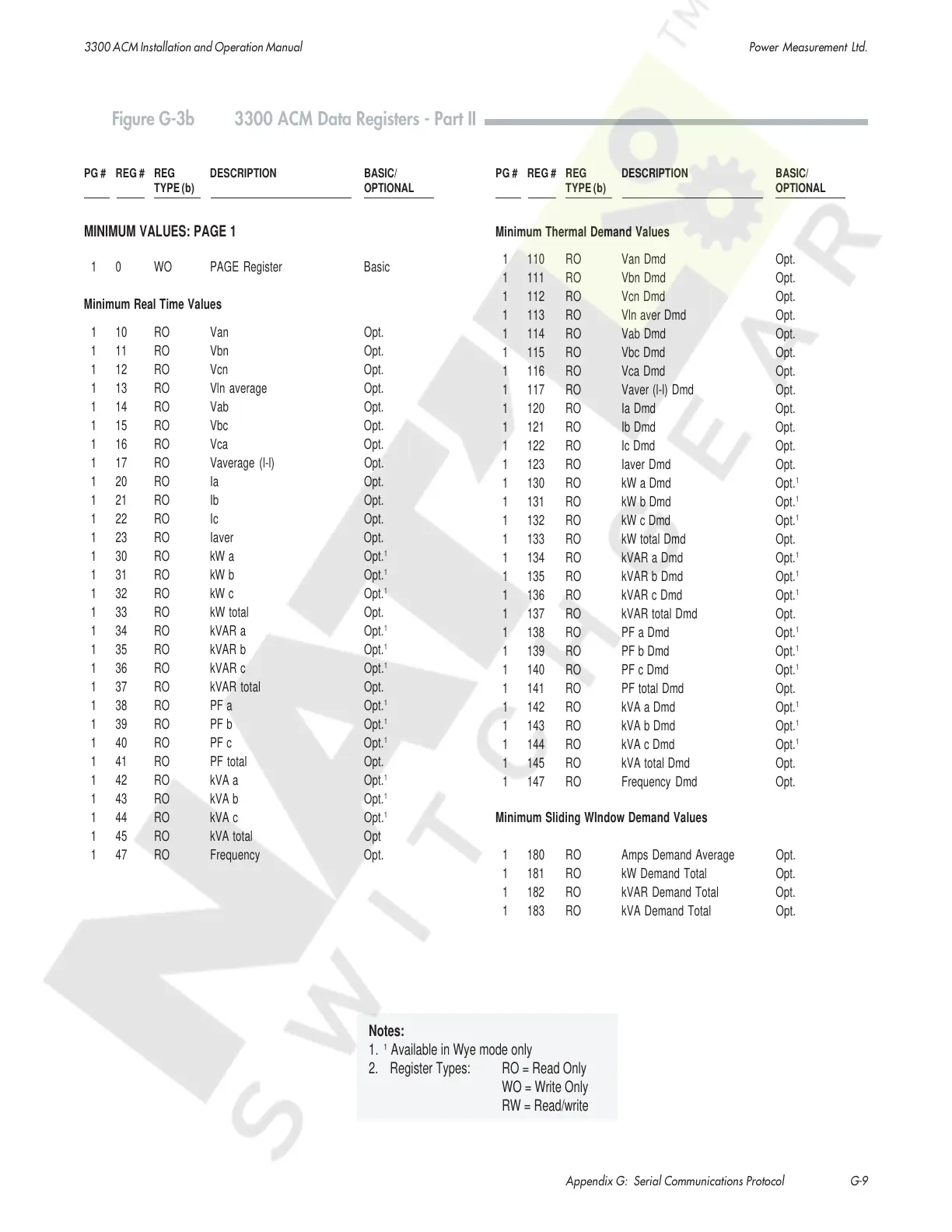

Figure G-3b 3300 ACM Data Registers - Part II
Notes:
1.
1
Available in Wye mode only
2. Register Types: RO = Read Only
WO = Write Only
RW = Read/write
PG # REG # REG DESCRIPTION BASIC/
TYPE (b) OPTIONAL
PG # REG # REG DESCRIPTION BASIC/
TYPE (b) OPTIONAL
Minimum Thermal Demand Values
1 110 RO Van Dmd Opt.
1 111 RO Vbn Dmd Opt.
1 112 RO Vcn Dmd Opt.
1 113 RO Vln aver Dmd Opt.
1 114 RO Vab Dmd Opt.
1 115 RO Vbc Dmd Opt.
1 116 RO Vca Dmd Opt.
1 117 RO Vaver (l-l) Dmd Opt.
1 120 RO Ia Dmd Opt.
1 121 RO Ib Dmd Opt.
1 122 RO Ic Dmd Opt.
1 123 RO Iaver Dmd Opt.
1 130 RO kW a Dmd Opt.
1
1 131 RO kW b Dmd Opt.
1
1 132 RO kW c Dmd Opt.
1
1 133 RO kW total Dmd Opt.
1 134 RO kVAR a Dmd Opt.
1
1 135 RO kVAR b Dmd Opt.
1
1 136 RO kVAR c Dmd Opt.
1
1 137 RO kVAR total Dmd Opt.
1 138 RO PF a Dmd Opt.
1
1 139 RO PF b Dmd Opt.
1
1 140 RO PF c Dmd Opt.
1
1 141 RO PF total Dmd Opt.
1 142 RO kVA a Dmd Opt.
1
1 143 RO kVA b Dmd Opt.
1
1 144 RO kVA c Dmd Opt.
1
1 145 RO kVA total Dmd Opt.
1 147 RO Frequency Dmd Opt.
Minimum Sliding WIndow Demand Values
1 180 RO Amps Demand Average Opt.
1 181 RO kW Demand Total Opt.
1 182 RO kVAR Demand Total Opt.
1 183 RO kVA Demand Total Opt.
MINIMUM VALUES: PAGE 1
1 0 WO PAGE Register Basic
Minimum Real Time Values
1 10 RO Van Opt.
1 11 RO Vbn Opt.
1 12 RO Vcn Opt.
1 13 RO Vln average Opt.
1 14 RO Vab Opt.
1 15 RO Vbc Opt.
1 16 RO Vca Opt.
1 17 RO Vaverage (l-l) Opt.
1 20 RO Ia Opt.
1 21 RO Ib Opt.
1 22 RO Ic Opt.
1 23 RO Iaver Opt.
1 30 RO kW a Opt.
1
1 31 RO kW b Opt.
1
1 32 RO kW c Opt.
1
1 33 RO kW total Opt.
1 34 RO kVAR a Opt.
1
1 35 RO kVAR b Opt.
1
1 36 RO kVAR c Opt.
1
1 37 RO kVAR total Opt.
1 38 RO PF a Opt.
1
1 39 RO PF b Opt.
1
1 40 RO PF c Opt.
1
1 41 RO PF total Opt.
1 42 RO kVA a Opt.
1
1 43 RO kVA b Opt.
1
1 44 RO kVA c Opt.
1
1 45 RO kVA total Opt
1 47 RO Frequency Opt.
