3300 ACM Installation and Operation Manual Power Measurement Ltd.
G-10 Appendix G: Serial Communications Protocol
3300 ACM DATA REGISTERS

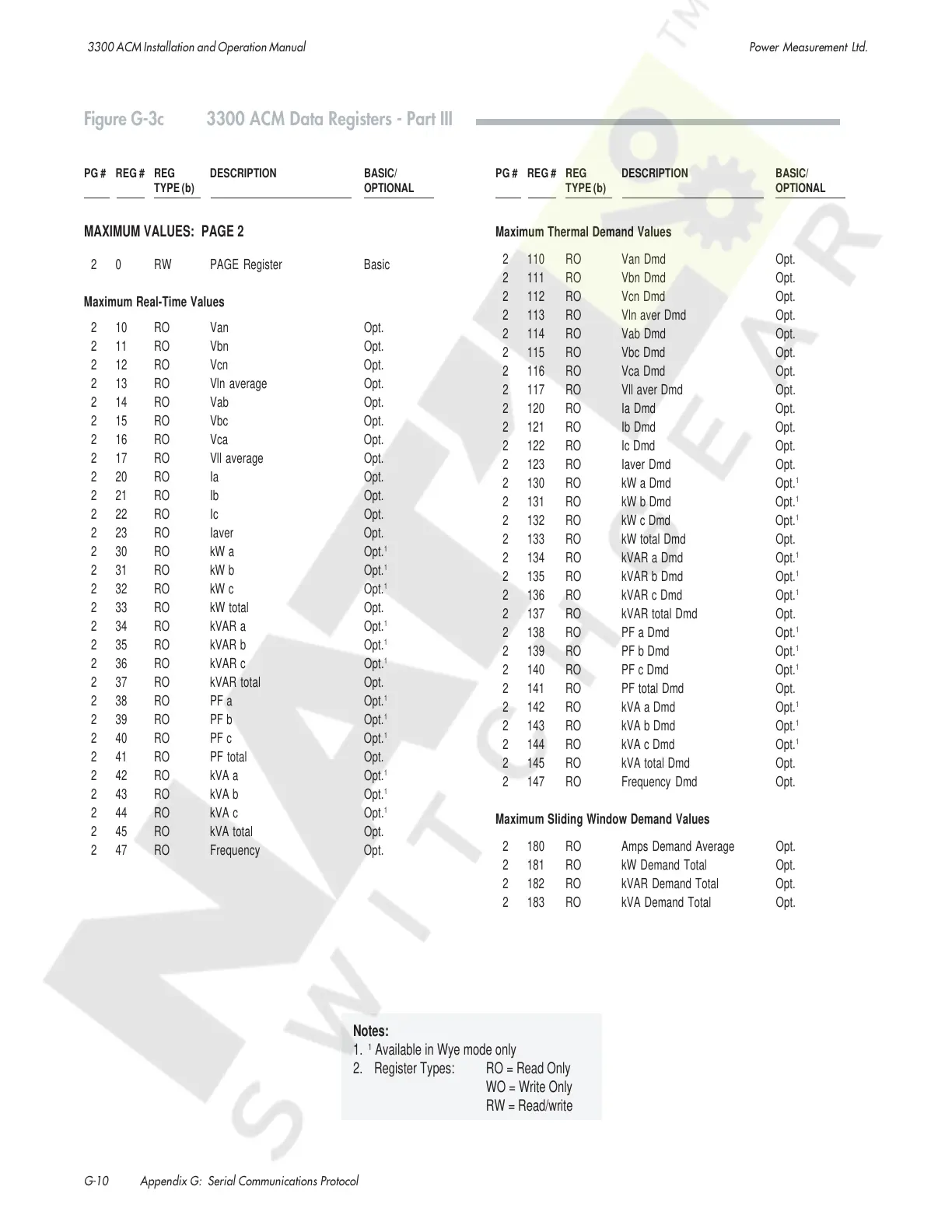

Figure G-3c 3300 ACM Data Registers - Part III
PG # REG # REG DESCRIPTION BASIC/
TYPE (b) OPTIONAL
MAXIMUM VALUES: PAGE 2
2 0 RW PAGE Register Basic
Maximum Real-Time Values
2 10 RO Van Opt.
2 11 RO Vbn Opt.
2 12 RO Vcn Opt.
2 13 RO Vln average Opt.
2 14 RO Vab Opt.
2 15 RO Vbc Opt.
2 16 RO Vca Opt.
2 17 RO Vll average Opt.
2 20 RO Ia Opt.
2 21 RO Ib Opt.
2 22 RO Ic Opt.
2 23 RO Iaver Opt.
2 30 RO kW a Opt.
1
2 31 RO kW b Opt.
1
2 32 RO kW c Opt.
1
2 33 RO kW total Opt.
2 34 RO kVAR a Opt.
1
2 35 RO kVAR b Opt.
1
2 36 RO kVAR c Opt.
1
2 37 RO kVAR total Opt.
2 38 RO PF a Opt.
1
2 39 RO PF b Opt.
1
2 40 RO PF c Opt.
1
2 41 RO PF total Opt.
2 42 RO kVA a Opt.
1
2 43 RO kVA b Opt.
1
2 44 RO kVA c Opt.
1
2 45 RO kVA total Opt.
2 47 RO Frequency Opt.
Notes:
1.
1
Available in Wye mode only
2. Register Types: RO = Read Only
WO = Write Only
RW = Read/write
PG # REG # REG DESCRIPTION BASIC/
TYPE (b) OPTIONAL
Maximum Thermal Demand Values
2 110 RO Van Dmd Opt.
2 111 RO Vbn Dmd Opt.
2 112 RO Vcn Dmd Opt.
2 113 RO Vln aver Dmd Opt.
2 114 RO Vab Dmd Opt.
2 115 RO Vbc Dmd Opt.
2 116 RO Vca Dmd Opt.
2 117 RO Vll aver Dmd Opt.
2 120 RO Ia Dmd Opt.
2 121 RO Ib Dmd Opt.
2 122 RO Ic Dmd Opt.
2 123 RO Iaver Dmd Opt.
2 130 RO kW a Dmd Opt.
1
2 131 RO kW b Dmd Opt.
1
2 132 RO kW c Dmd Opt.
1
2 133 RO kW total Dmd Opt.
2 134 RO kVAR a Dmd Opt.
1
2 135 RO kVAR b Dmd Opt.
1
2 136 RO kVAR c Dmd Opt.
1
2 137 RO kVAR total Dmd Opt.
2 138 RO PF a Dmd Opt.
1
2 139 RO PF b Dmd Opt.
1
2 140 RO PF c Dmd Opt.
1
2 141 RO PF total Dmd Opt.
2 142 RO kVA a Dmd Opt.
1
2 143 RO kVA b Dmd Opt.
1
2 144 RO kVA c Dmd Opt.
1
2 145 RO kVA total Dmd Opt.
2 147 RO Frequency Dmd Opt.
Maximum Sliding Window Demand Values
2 180 RO Amps Demand Average Opt.
2 181 RO kW Demand Total Opt.
2 182 RO kVAR Demand Total Opt.
2 183 RO kVA Demand Total Opt.
