39
K2 K3 | SERVICE MANUAL
INDEX

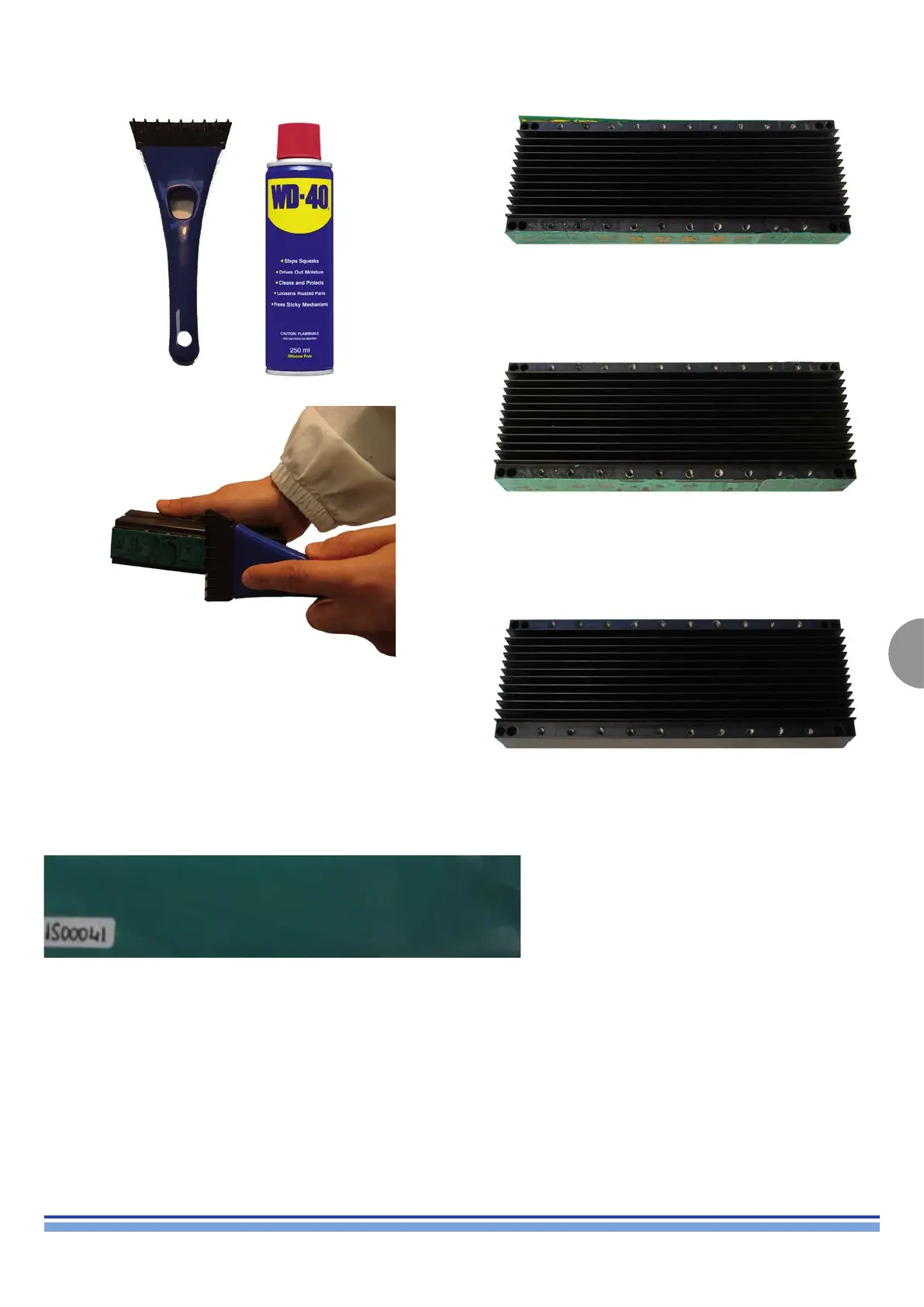

Cleaning the Heatsink:
Peel off the SilPad from both sides of the heatsink
Using a plastic scraper, remove the leftover glue
Spray some WD40 (or equivalent) on a clean cloth and wipe off
the excess residues.
Replacing the Gap Pads:
Carefully scrape off all residues from the heatsink-
mounted components, remove all residues of dirt and
glue.
Lay the gap pad between the components and the
heatsink, and tighten all the retainer spring’s screws.
To Next Page
