Prior to installing of the KAESOP board check if the rails are
completely discharged: leds in (Fig. 82) should be off, this should
happen 15 minutes after that the amplier has been switched off
and disconnected from the mains.

7railledsshouldbeofforit
isneededtodischarge
capacitorsbank

(Fig. 82)
(Fig. 83)
(Fig. 85)
(Fig. 86)
(Fig. 87)
(Fig. 84)
KAESOP board installation
It is possible to retrot the optional KAESOP board on every K
Series amplier with serial number greater than 19062, older serial
numbers need to be sent to Powersoft, please contact Powersoft
for further informations.

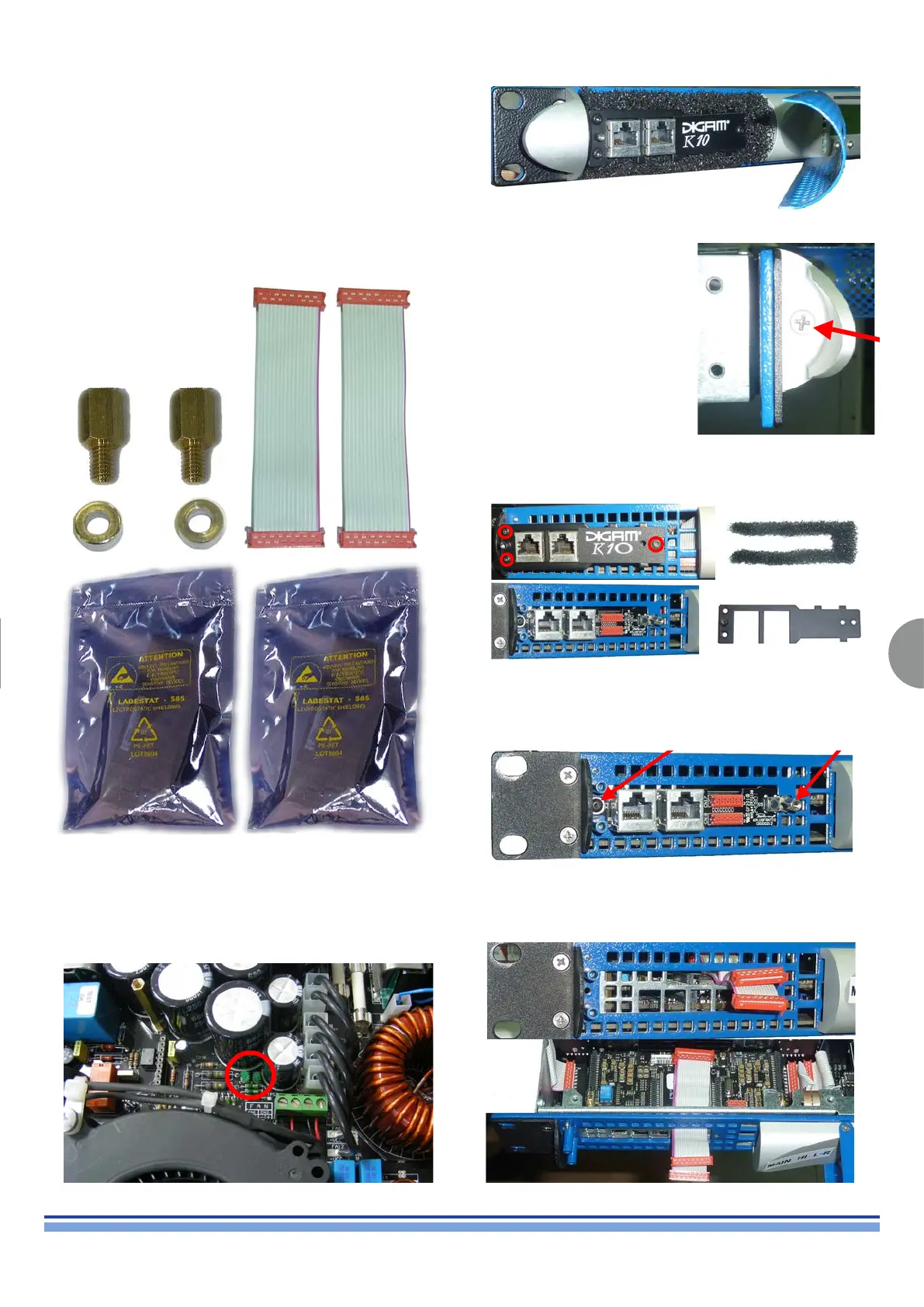

Powersoft KAESOP upgrade kit
Powersoft KAESOP upgrade Kit comes as two brass spacers,
two spacers, two at cables, a KAESOP board protected in
an electrostatic shielding envelope, a front panel RJ45 board
protected in another electrostatic shielding envelope.





Open the front panel left grid removing the screw as in (Fig. 83).


Remove the screw to detach the
front panel left “ear” as in (Fig. 84)



14Blackmetalcoverandscrewstoremove,dustfilterandcoveronceremoved

The next step is to remove the dust lter and the the black metal
cover in front of the RJ45 board as showed in (Fig. 85)

15Blackmetalcoverremoved

Remove the original RJ45 circuit by unscrewing the black screw
and the brass spacer, keep them as you will need them for the new
circuit. (Fig. 86)

18Blackmetalcoverremoved

Once the original RJ45 board has been removed t the two at
cables as in (Fig. 87)

21Flatcableinserted


22Flatcableinserted,topview

