Additional UPS Features
35
Powerware
®
5125 Two-in-One (2400–3000 VA) User’s Guide : www.powerware.com
The On-Bypass Relay Contact. You can enable the On-Bypass relay using the
jumper on the single-port module. The jumper default is disabled. To
enable the On-Bypass relay:
1. Remove the single-port module on the UPS rear panel. Retain
thescrews(seeFigure22).

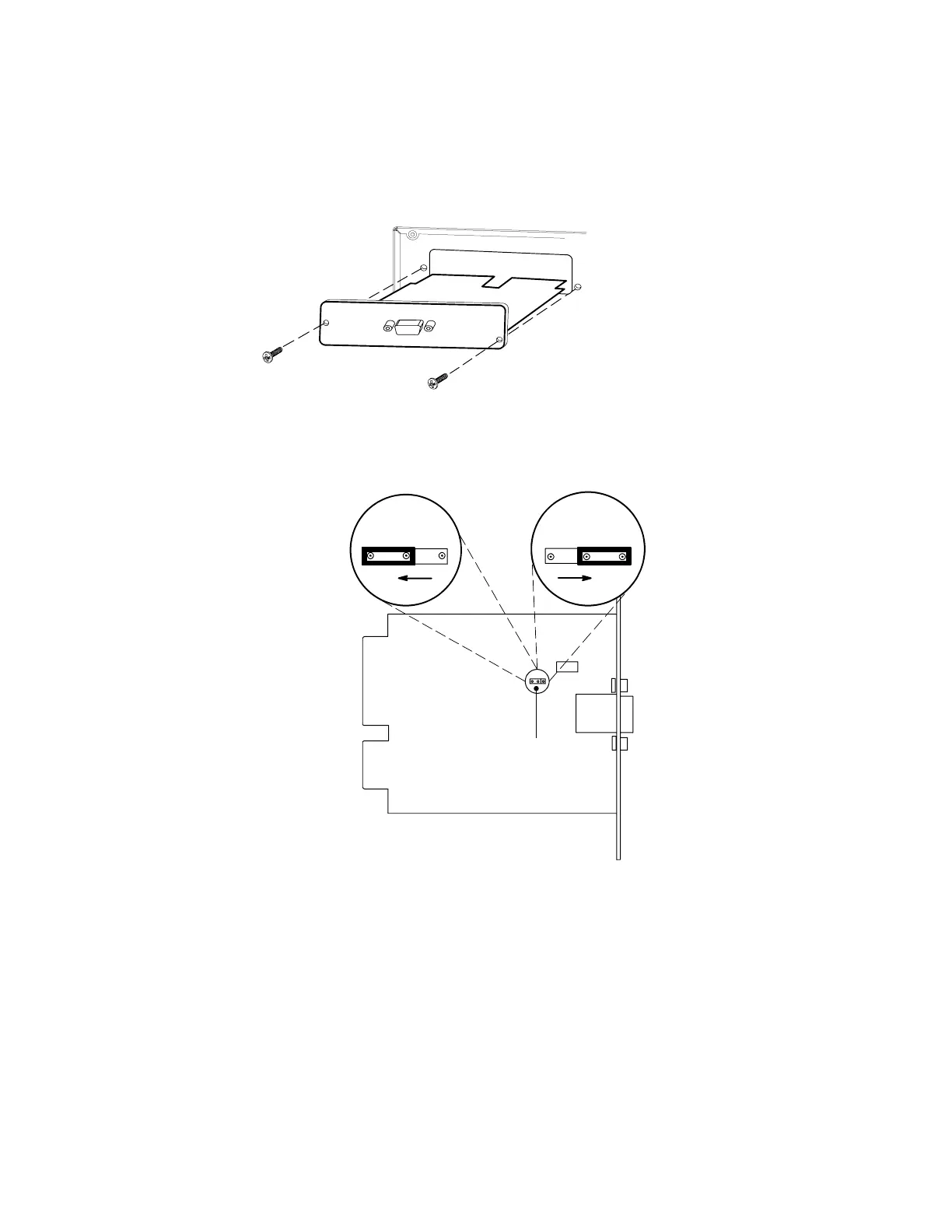

Figure 22. Removing the Single-Port Module
2. Move the J3 jumper to the AS/400 position to enable the
On-Bypass relay as shown in Figure 23.
On-Bypass Relay Jumper
(J3)
On-Bypass
Disabled
On-Bypass
Enabled
AS/400NORM
Figure 23. On-Bypass Relay Jumper
