Powerware 5125 - UPS Rear Panels

Installation
26
Powerware
®
5125 Two-in-One (2400–3000 VA) User’s Guide : www.powerware.com
UPS Rear Panels
This section shows the rear panels of the Powerware 5125 models.
L5-30 Receptacle
Battery Connector
Power Cord
with L5-30P
Communication Port
REPO Port
5-15 Receptacles
X-Slot
Circuit Breakers

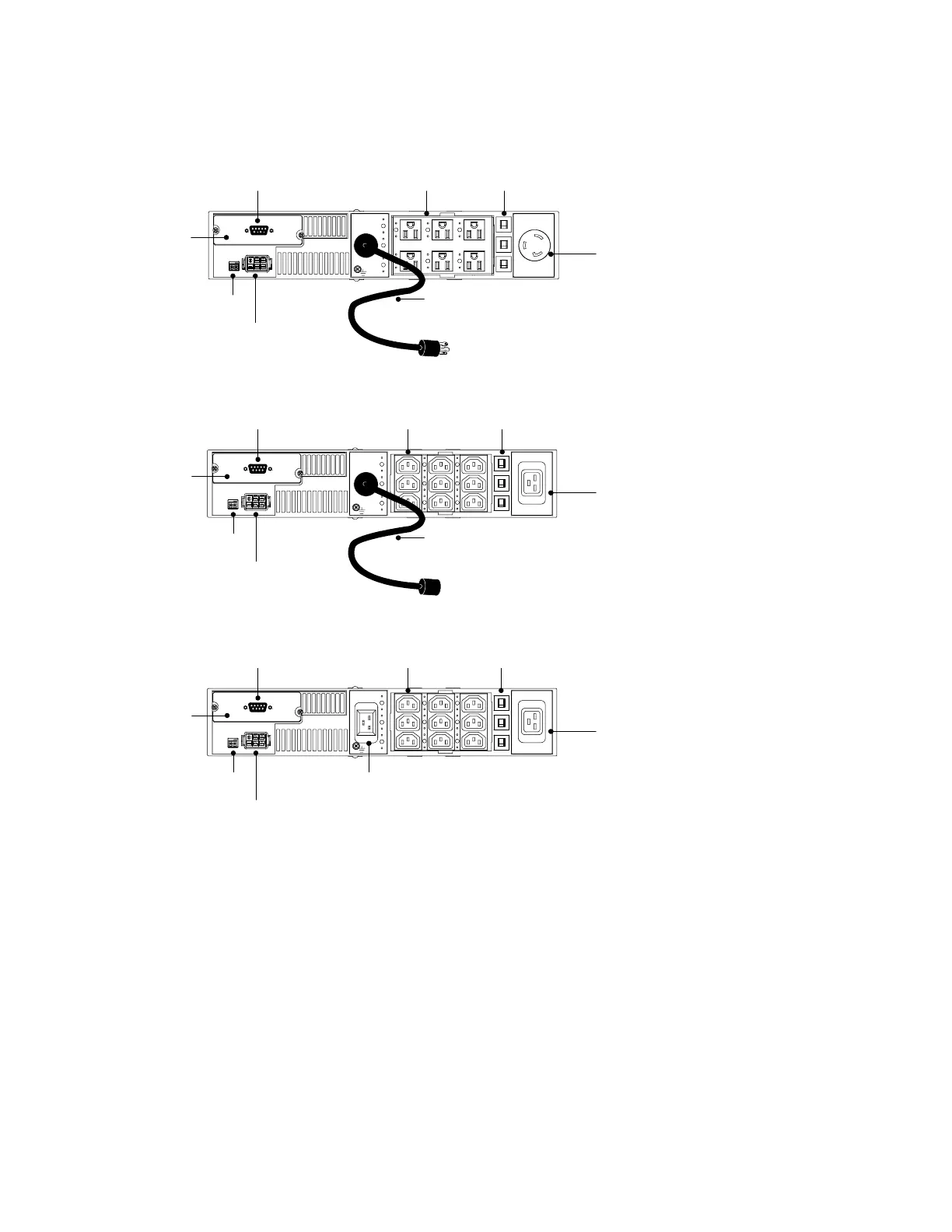

Figure 14. 2400–3000 VA, 100/120V Rear Panel
IEC 320-C19
Receptacle
Battery Connector
Power Cord with
16A, IEC-309 Plug
Communication Port
REPO Port
IEC 320-C13 Receptacles
X-Slot
Circuit Breakers
Figure 15. 2400–3000 VA, 230V Rear Panel
REPO Port
IEC 320-C19
Receptacle
Battery Connector
16A, IEC 320-C20
Input Connector
Communication Port IEC 320-C13 Receptacles
X-Slot
Circuit Breakers
Figure 16. 3000 VA, 230V (PW5125 3000e RM) Rear Panel
