How to Replace Extended Battery Modules
Use the following procedure to replace EBMs:
1. Unplug the EBM cable from the UPS.
2. If the UPS is in a vertical configuration, remove the EBM
brackets from the top.
3. Replace the EBM. See “Recycling the Used Battery” on page 45
for proper disposal.
4. Reinstall the EBM brackets if removed in Step 2.
5. Plug the new EBM into the UPS as shown in Figure 27. Plug
the other end of the EBM cable into the EBM battery connector.
6. For additional EBMs, plug the EBM cable into the battery
connector of each EBM.
UPS Battery
Connector
EBM Battery
Connectors
EBM Brackets
EBM Cables

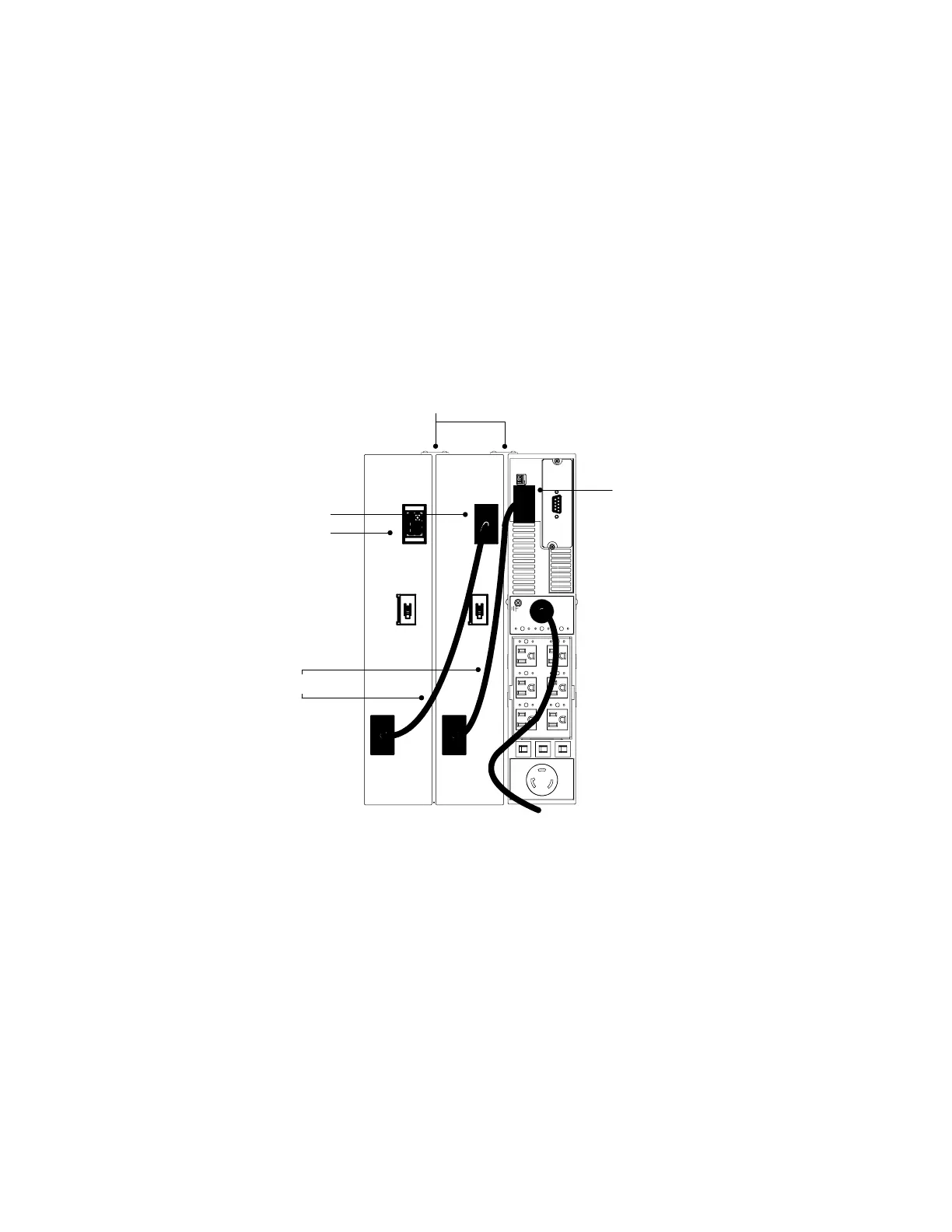

Figure 27. EBM Connections (120V Model Shown)
