Powtran PI160 Series User Manual

Chapter 5 Function parameter
99
Chapter 5
PID initial value
E2.23
Time(t)
Output frequency(Hz)
PID initial value hold
time E2.24

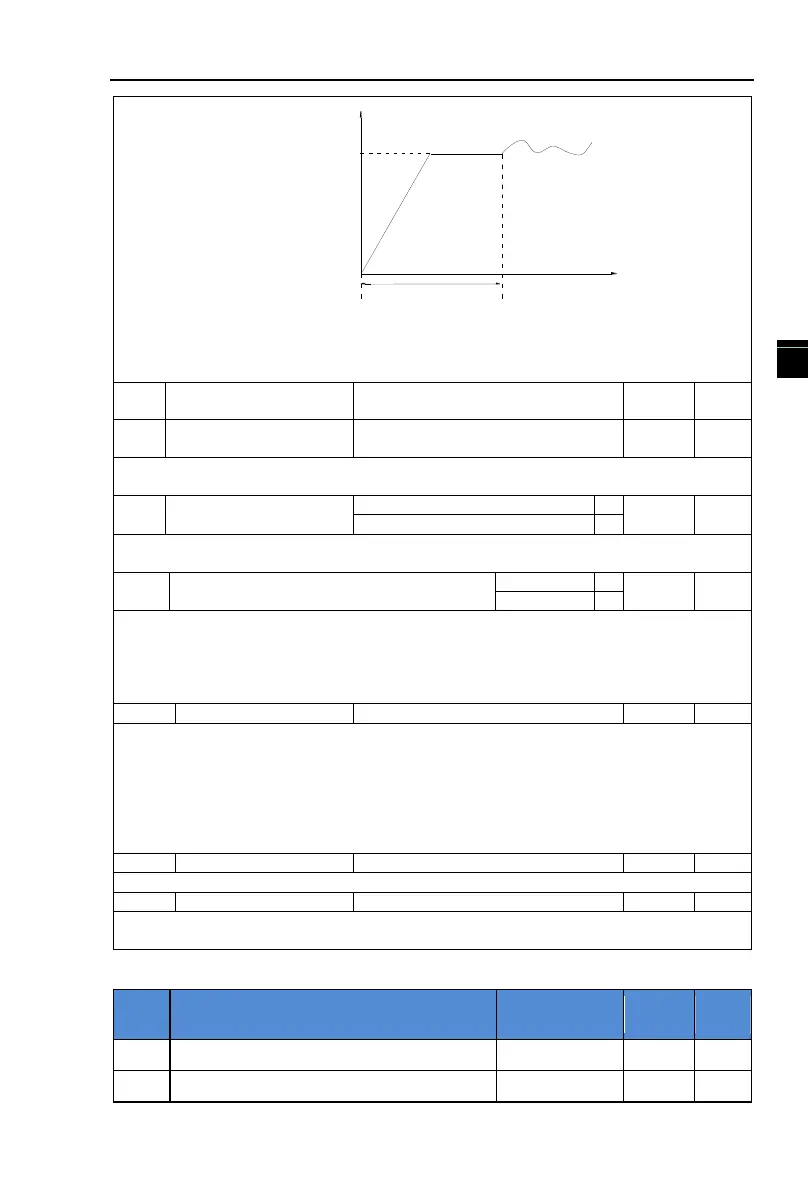

Figure 5-33:Functional schematic of PID initial value
This function is used to limit the deviation between two PID output beats(2ms/beats), in
order to suppress the too fast changes of PID output so that stabilizing the inverter operation.
E2.25
Maximum deviation of
twice outputs(Forward)
0.00% to 100.00%
1.00%
☆
E2.26
Maximum deviation of
twice outputs(backward)
0.00% to 100.00%
1.00%
☆
E2.25 and E2.26 respectively corresponds to the maximum of the absolute value of output
deviation when rotating forward and reverse.
E2.27
Computing status after
PID stop
Stop without computing
0
0
☆
Stop with computing
1
Used to select whether to continue computing in the state of PID shutdown. Generally, PID
will stop computing in the state of shutdown.
E2.29
PID Automatically reduced frequency selection
Invalid
0
1
☆
Valid
1
PID feedback value equal to the given value, the inverter frequency is reduced effectively.
When the inverter frequency feeectively reduced, the frequency converter detection time
interval E2.31 reduced frequency, every time decrease frequency of 0.5Hz, if in the process of
reducing frequency feedback value is less than the given value, inverter speed up directly to the
set value.
E2.30
PID Stop frequency
0Hz to Max. frequency (F0.19)
25Hz
☆
The function code is only used when the automatic frequency reduction (E2.29) is
selected.
The feedback value of the transducer is equal to the given value, the number of PID
detection starts counting, and every PID detection time (E2.31) counts a number of times. When
the count is greater than or equal to the number of PID detection (E2.32), if the frequency of the
inverter frequency is less than PID stop frequency (E2.30), then the frequency converter to slow
down to 0Hz.
E2.31
PID detection time
0s ~ 3600s
10
☆
The PID Auto-reduced frequency is valid, used to detect the time of frequency decline.
E2.32
PID testing time
10 ~ 500
20
☆
This function is related to PID stop frequency setting, when the set detections time
reached, inverter will slow down then stop.
5-2-18.E3 group Virtual DI、Virtual DO
Code
Parameter name
Setting range
Factory
setting
Change
limit
E3.00
Virtual VDI1 terminal function selection
0 to 53
0
★
E3.01
Virtual VDI2 terminal function selection
0 to 53
0
★
