PPI FLOREX User Manual

DC Voltage/Current Module
Figure 12.8
Serial Communication Plug-in Module
The 4-Pin Male Plug for mounting the Serial Communication Module is located on the Power-supply PCB, as shown in the
Figure 12.9 below. The Serial Communication Module is provided with a 4-Pin female sockets on the bottom side for the
mounting purpose. To plug (or unplug) the module simply insert (or remove) the socket into (or from) the plug.

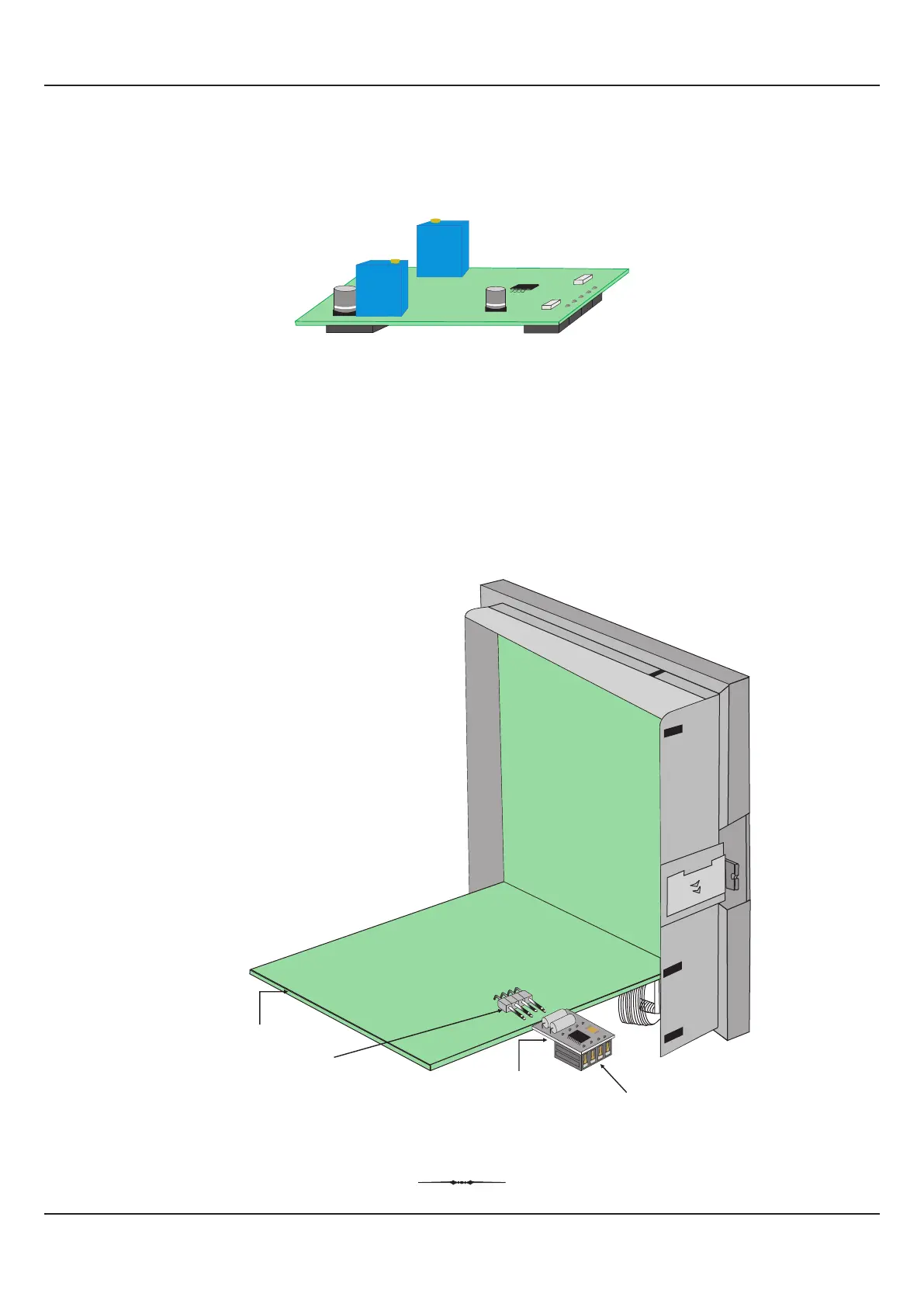

Figure 12.9
Mounting Serial Communication
User Manual
FLOREX
32
Serial Communication
Module
Power-Supply
PCB
8 Pin Male Plug
8 Pin Female
Socket
