ORGANIZATION
The FLOREX requires various user settings that determine how the FLOREX will function or operate. These settings are
called Parameters.
The parameters are always presented in a fixed format: The Upper Row of Lower Readout displays the parameter name
(Identification Tag) and the Lower Row displays the options / set value. The parameters appear in the same sequence as listed
in their respective sections.
For convenience and ease of memorizing, the various parameters have been arranged in different groups depending upon the
functions the parameters represent. Each group is assigned a unique Page Header for its access and the parameters within
each group are presented for settings depending upon the function(s) selected.
PROGRAM MODE
The Program Mode allows the user to view or modify the parameter values. The entry from MAIN Display Mode to Program
Mode requires appropriate setting of the Page Header. Follow the steps below to open a desired PAGE for setting the
parameter values
1. Press and release PAGE key. The Upper Row of Lower Readout shows SELECT PAGE and the Lower Row shows first
Page Header. See Figure 3.1.
2. Adjust the Lower Readout to the desired Page Header using the UP/DOWN keys. Pressing and releasing the UP or DOWN
key once, access to the next or previous Page Header.
3. Press and release ENTER key. The Upper Row of Lower Readout shows the name of the first parameter listed in the Page
and the Lower Row shows its current value / option.
PAGES AND PARAMETERS

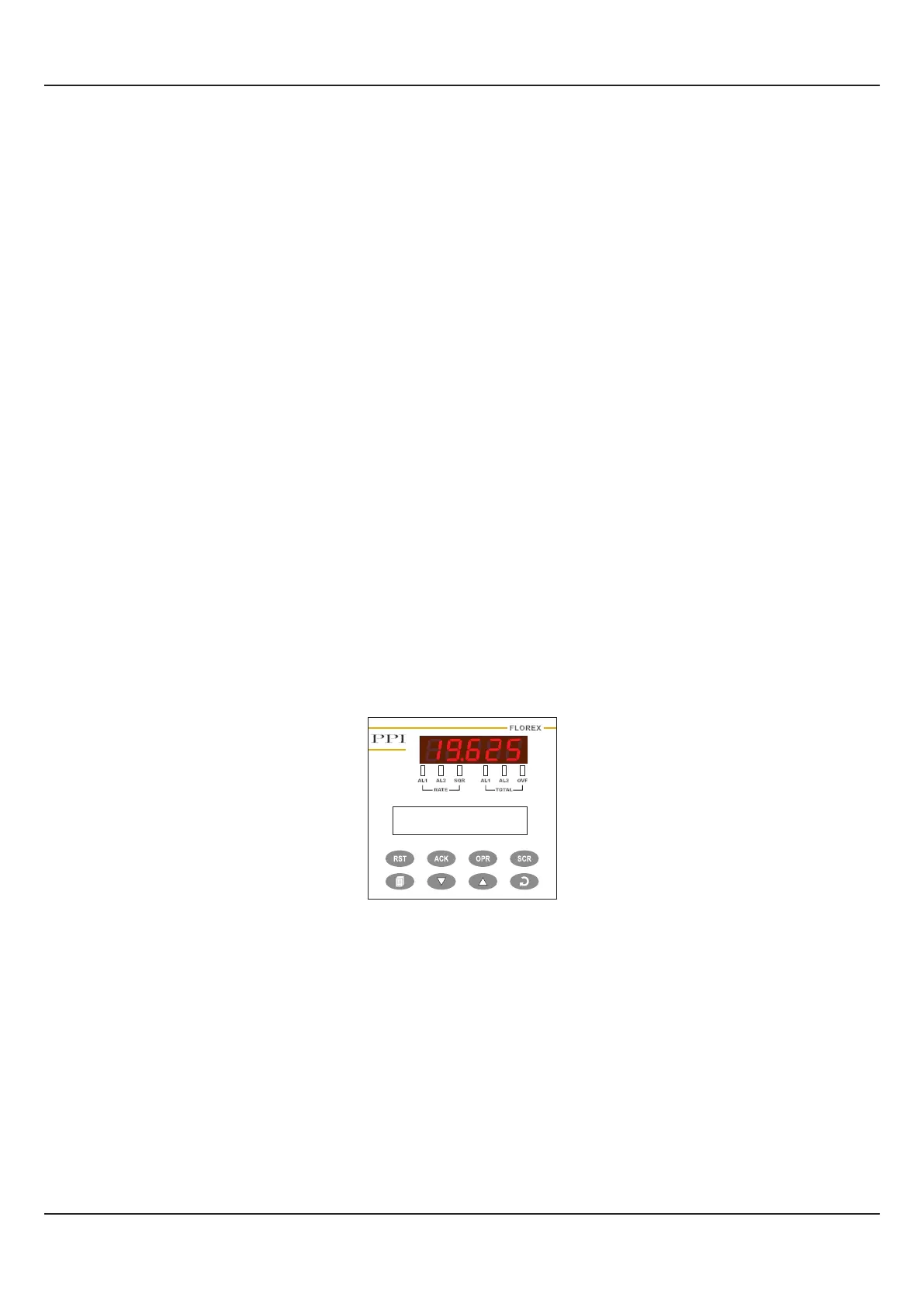

Figure 3.1
SELECT PAGE>>
FLOW ALARAMS
Adjusting Parameter Values
Once a PAGE is accessed, step through the following sequence to adjust the values of the desired parameters:
1. Press and release the ENTER key until the name for the required parameter appears on the Lower Readout. The last
parameter in the list rolls back to the first parameter.
2. Use UP / DOWN keys to adjust the parameter value. Note that some parameters (examples; ‘Alarm Setpoint’, ‘User
Offset’, etc.) have numeric values while others (examples; ‘Alarm Logic’, ‘Time Base’, etc.) have a series of options. If
adjusting a numeric value; depressing the UP/DOWN key once, increases/decreases the parameters value by one digit.
For parameters having a series of options, depressing the UP/DOWN key once takes you to the next/previous option. In
each case, keeping the UP/DOWN key pressed speeds up the rate. If the value reaches the maximum / minimum settable
value/option, the Lower Row starts flashing and the UP (if maximum value is reached) or DOWN (if minimum value is
reached) key has no effect.
User Manual
FLOREX
10
Section 3
