C556, C556i Navy Self Powered Ellip
tical Fitness
Page 26

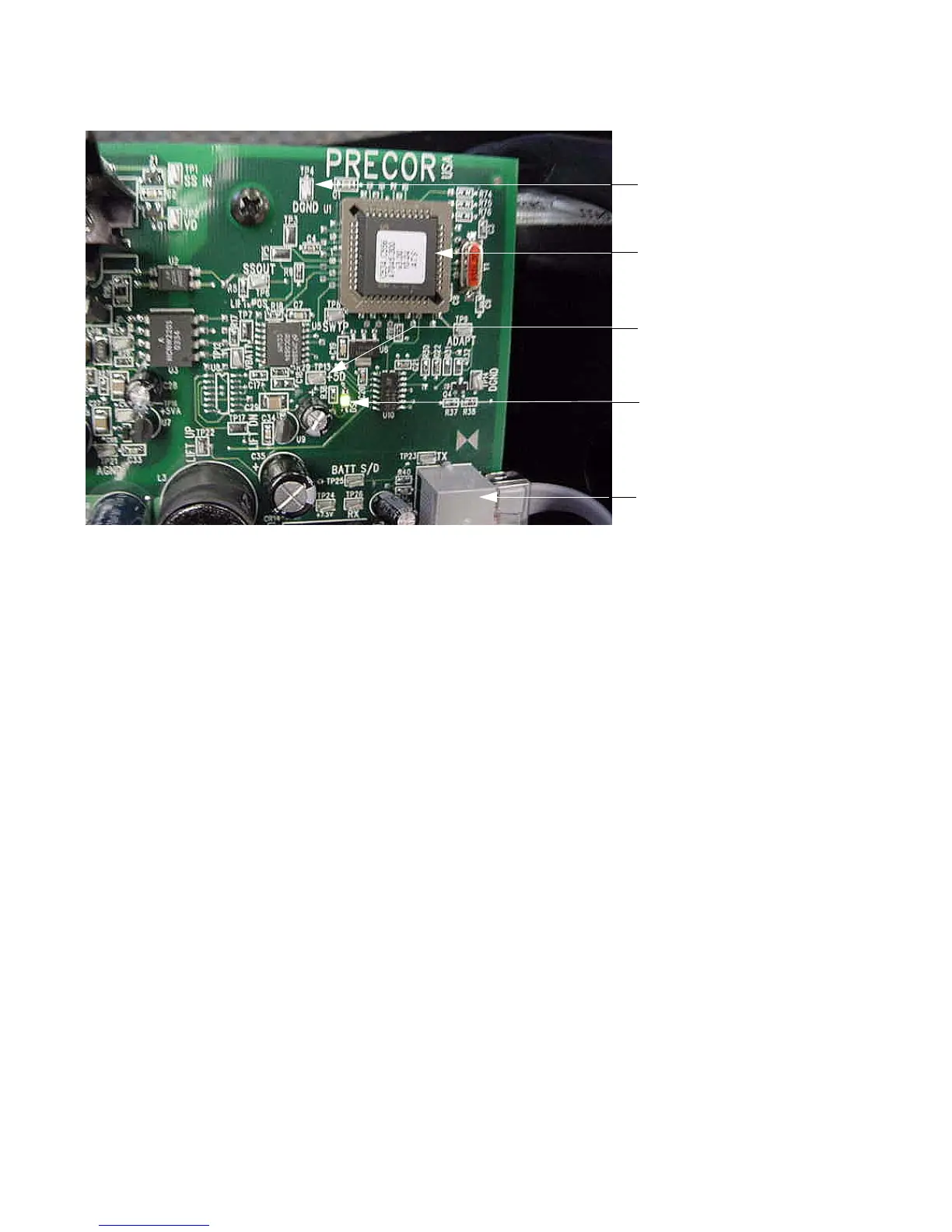

Diagram 6.4 - Partial
View of Lower PCA
10.
Troubleshoot the upper to lower PCA interconn
ect cables per Procedure 6.1.
11.
If the upper to lower interconnect
cables are found to be good, replace the upper PCA.
12.
If you have performed all of the above te
sts and are unable to resolve the problem, co
ntact
Precor customer support.
DGND, TP14
PROM
+5D, TP13
DS1 LED
J2 Connector
25
27
Table of Contents
Section One - Things You Should Know
2
General Information
4
Tools Required
4
Section Two - Preventive Maintenance
5
Daily Maintenance
5
Weekly Maintenance
5
Quarterly Maintenance
6
Procedure 3.1 - Software Access Codes
7
Procedure 3.2 - Accessing the Diagnostic Program
8
Procedure 3.3 - Displaying the Odometer
9
Procedure 3.4 - Club Settings
10
Procedure 3.5 - Documenting Software Problems
11
Procedure 5.1 - Measuring the Resistance of a Generator (C556 Navy, Only)
13
Procedure 5.2 - Measuring the Resistance of a Generator (C556I Navy, Only)
14
Procedure 5.3 - Inspecting and Adjusting Belt Tension
16
Procedure 6.1 - Troubleshooting the Lower and Upper Interconnect Cable
19
Procedure 6.2 - Troubleshooting the Keypad and Upper PCA
21
Procedure 6.3 - Upper Display Does Not Illuminate (C556 Navy, Only)
23
Procedure 6.4 - Upper Display Does Not Illuminate (C556I Navy, Only)
25
Procedure 6.5 - Troubleshooting the Generator (C556 Navy)
27
Procedure 6.6 - Troubleshooting the Generator (C556I Navy, Only)
28
Procedure 7.1 - Replacing the Display Enclosure or Upper PCA
29
Section One, Things You Should Know
29
Keypad Connector
30
Procedure 7.3 - Replacing the Lower PCA (C556I Navy, Only)
33
Procedure 7.4 - Replacing a Lower or Upper Interconnect Cable
35
Procedure 7.5 - Replacing a Crankarm Assembly
37
Procedure 7.6 - Replacing the Input Pulley Belt
39
Procedure 7.7 - Replacing the Generator Pulley Belt
40
Procedure 7.8 - Replacing the Input Pulley Assembly
42
Procedure 7.9 - Replacing the Step-Up Pulley Assembly
44
Procedure 7.10 - Replacing a Wheel Assembly
45
Procedure 7.11 - Replacing a Stairarm Pedal
47
Procedure 7.12 - Replacing a Stairarm (C556 Navy, Only)
48
Procedure 7.13 - Replacing a Stairarm (C556I Navy, Only)
50
Procedure 7.13 - Replacing a Ramp Assembly
52
Procedure 7.14 - Replacing a Handlebar
54
Procedure 7.15 - Replacing a Lower Pivot Arm (C556 Navy, Only)
56
Procedure 7.16 - Replacing Handlebar Linkage (C556I Navy, Only)
58
Procedure 7.17 - Replacing an Upper Pivot Arm
59
Procedure 7.18 - Replacing a Main Column
60
Procedure 7.19 - Replace the Rear Cover
62
Procedure 7.20 - Replacing a Load Resistor
64
Procedure 7.21 - Replacing a Generator (C556 Navy, Only)
66
Procedure 7.22 - Replacing a Generator (C556I Navy, Only)
68
Procedure 7.23 - Replacing a Battery (C556 Navy, Only)
70
Procedure 7.24 - Replacing a Battery (C556I Navy, Only)
72
Procedure 7.25 - Replacing a Power Input Jack Assembly
74
Procedure 7.26 - Replacing a Frame Tube
75
Procedure 7.27 - Replacing a Ramp Support
76
Procedure 7.28 - Replacing a Ramp Mounting Bracket
78
Procedure 7.29 - Replacing a Stairarm Pivot Block (C556 Navy, Only)
80
Procedure 7.30 - Replacing the PROM
82
Wiring Diagram 8.1 - C556 Navy Self Powered
83
Block Diagram 8.2 - C556 Navy Self Powered
84
Wiring Diagram 8.3 - C556I Navy Self Powered
85
Block Diagram 8.4 - C556I Navy Self Powered EFX
86
